Home >> GMC >> 2011 >> Sierra Denali AWD V8-6.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Diagrams

Knock Sensor: Diagrams




Component Connector End Views

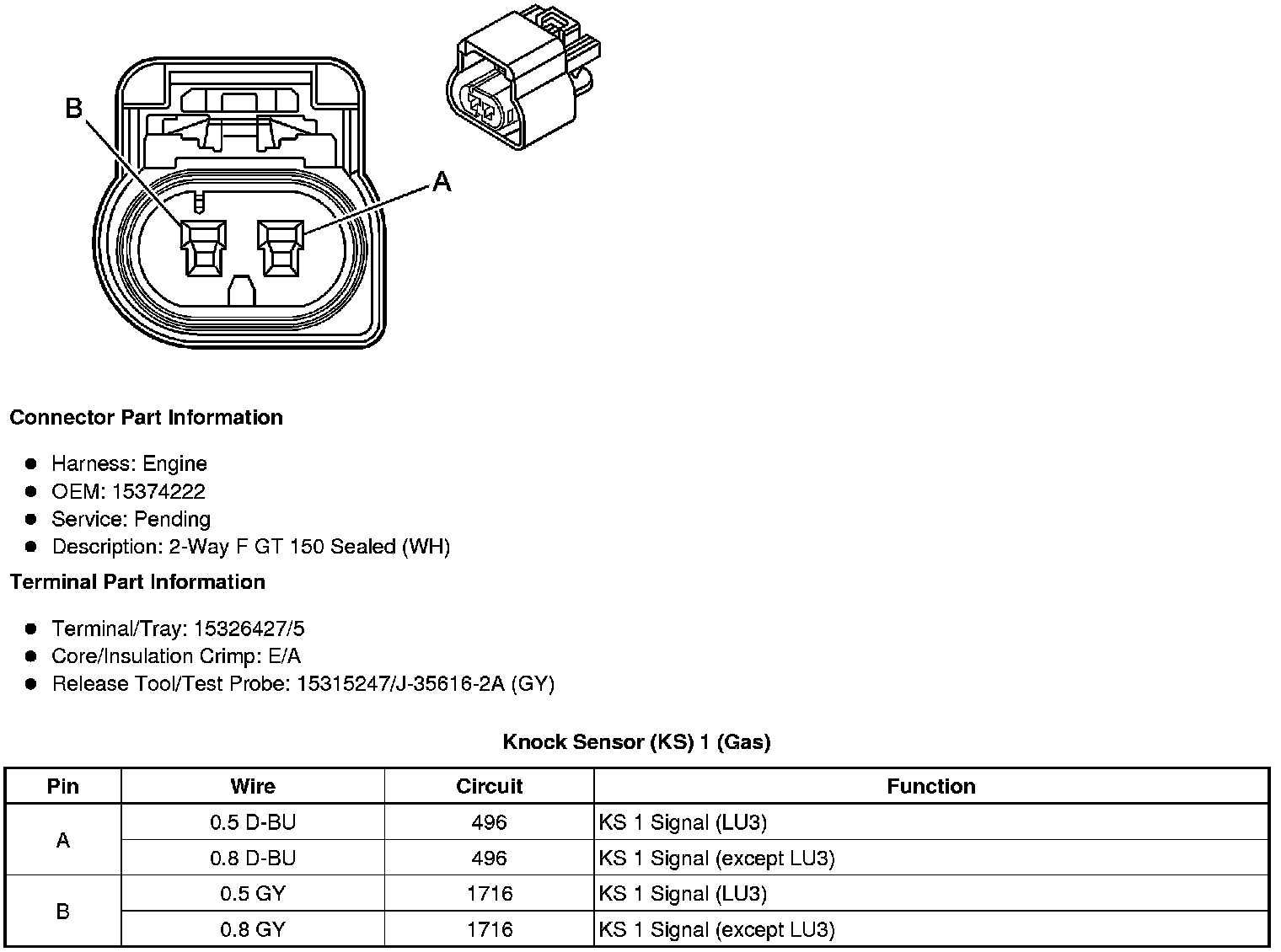

Knock Sensor (KS) 1 (Gas)





Knock Sensor (KS) 2 (Gas)
