LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2011
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Connector Views
Connector Views
Component Connector End Views

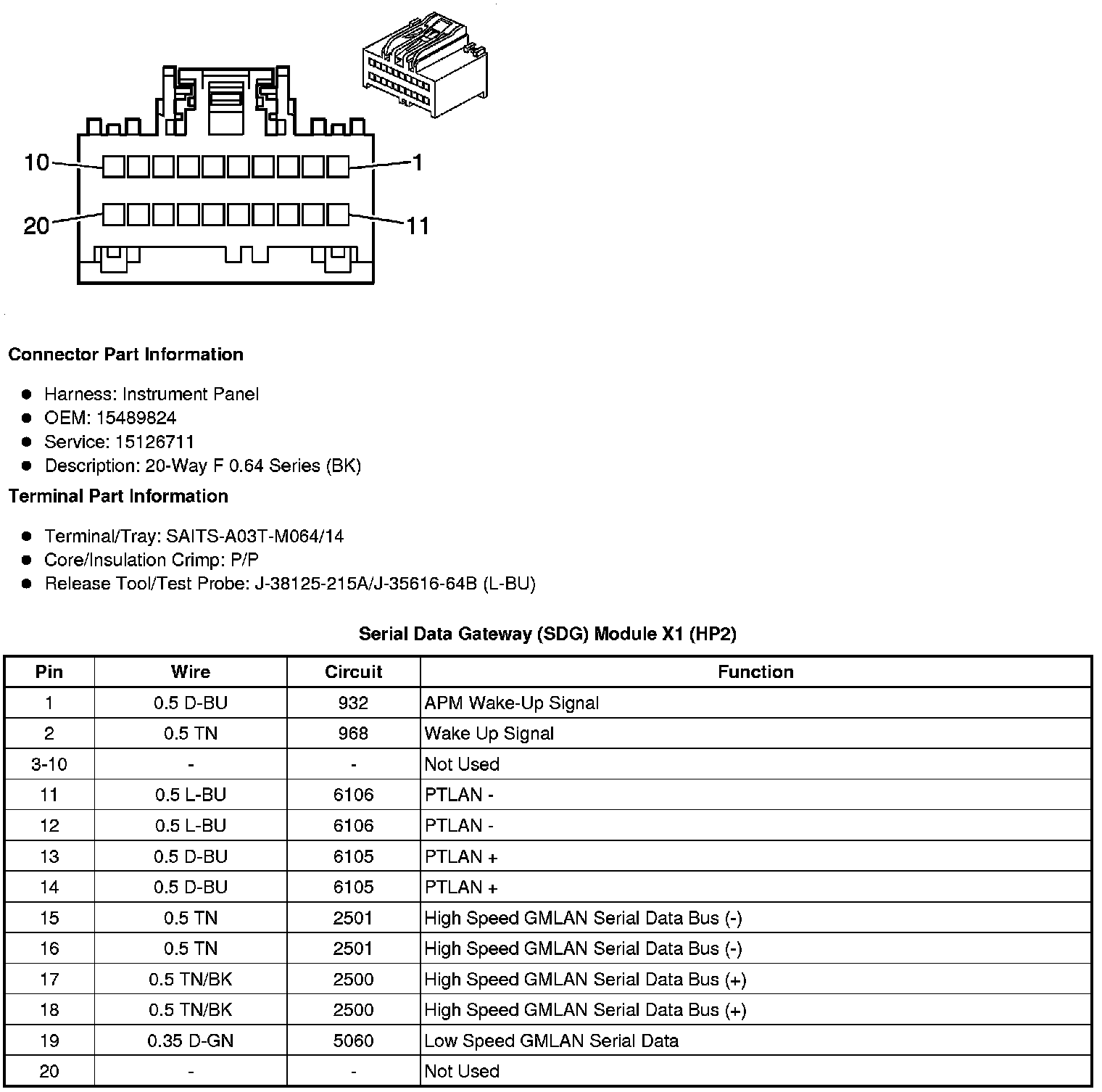

Serial Data Gateway (SDG) Module X1 (HP2)

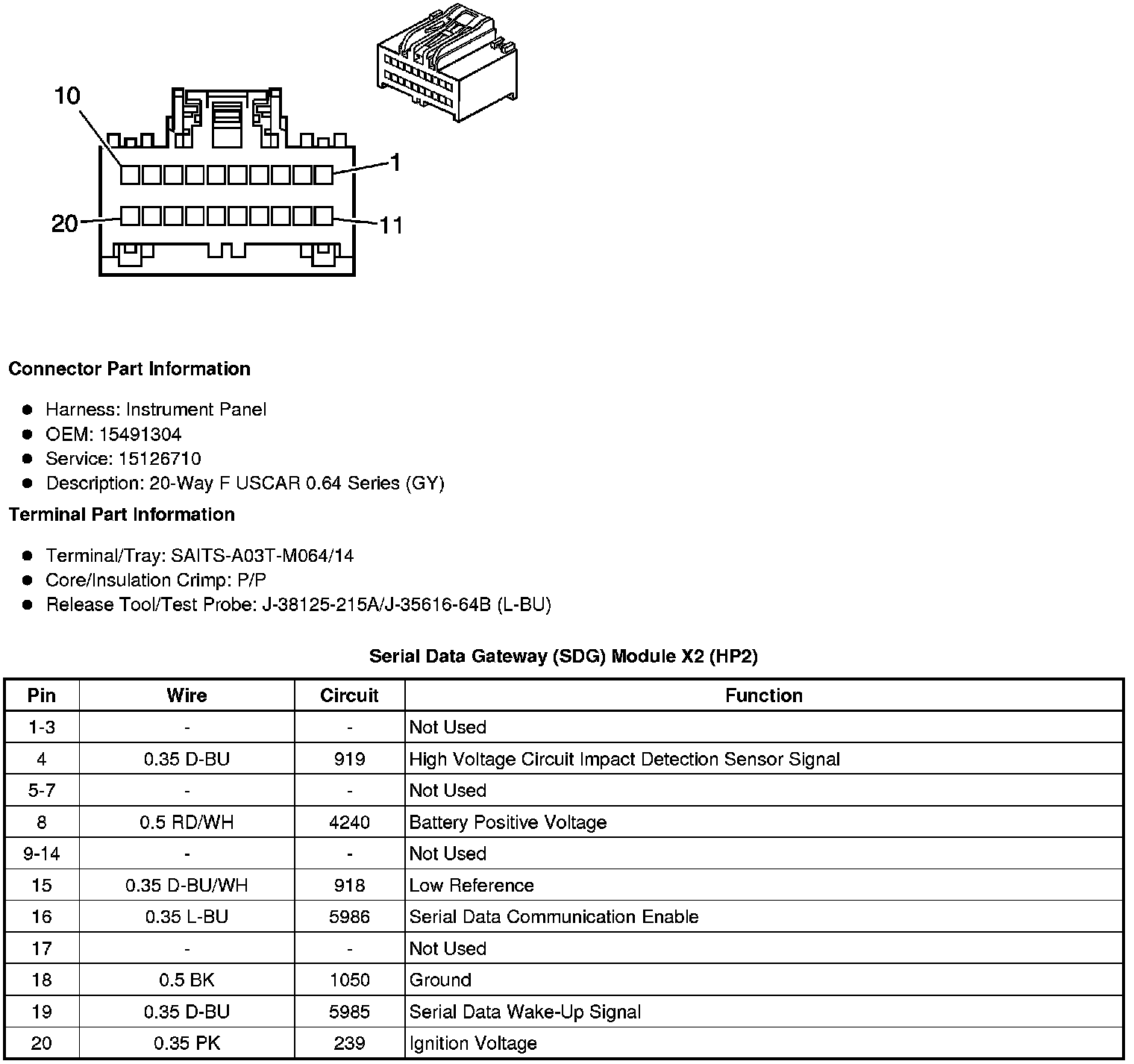

Serial Data Gateway (SDG) Module X2 (HP2)
