Data Link Connector: Diagrams




Component Connector End Views

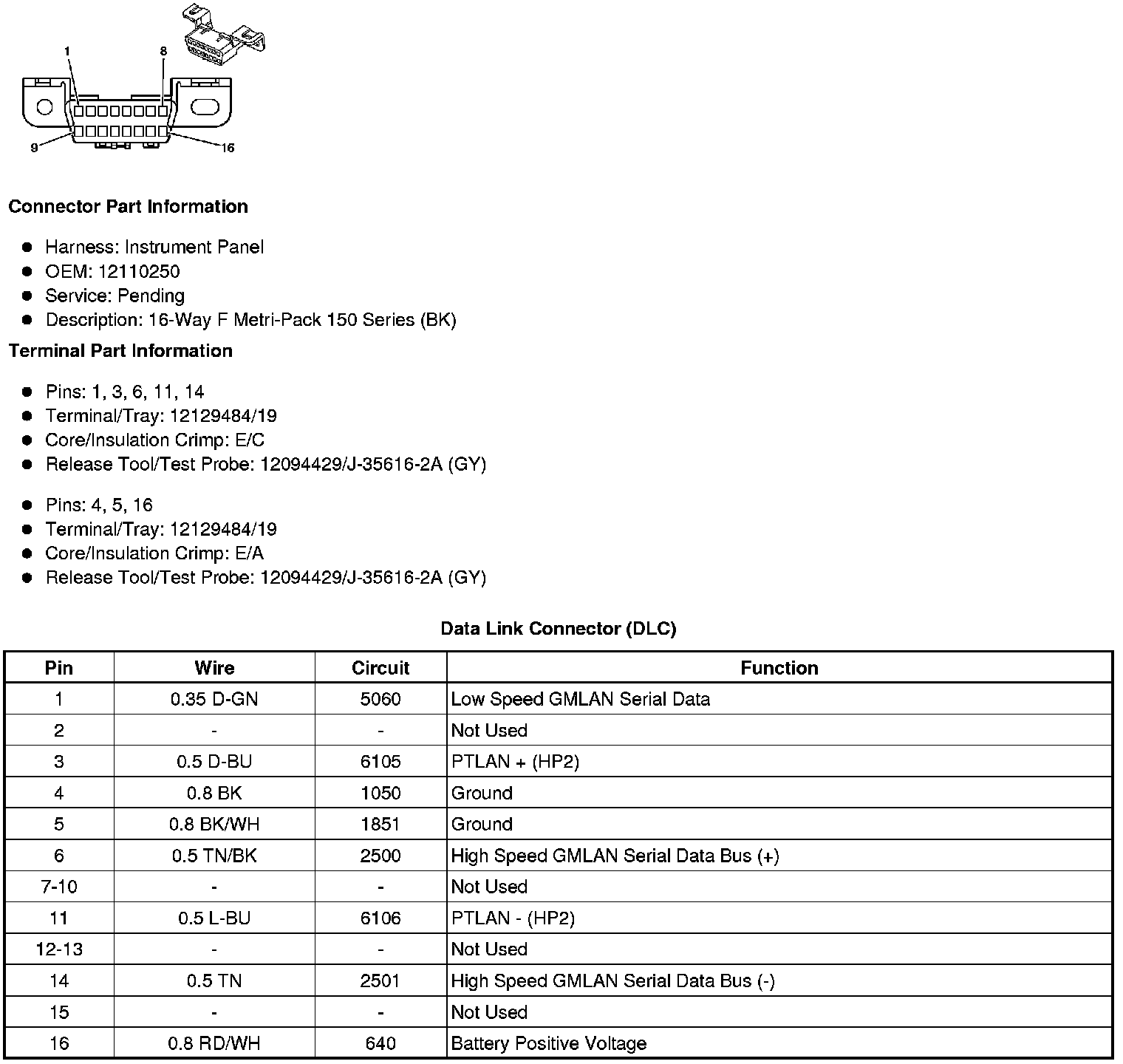

Data Link Connector (DLC)





Data Link Resistor





Data Link Resistor 2 (HP2)
