Crankshaft Position Sensor: Diagrams




Component Connector End Views

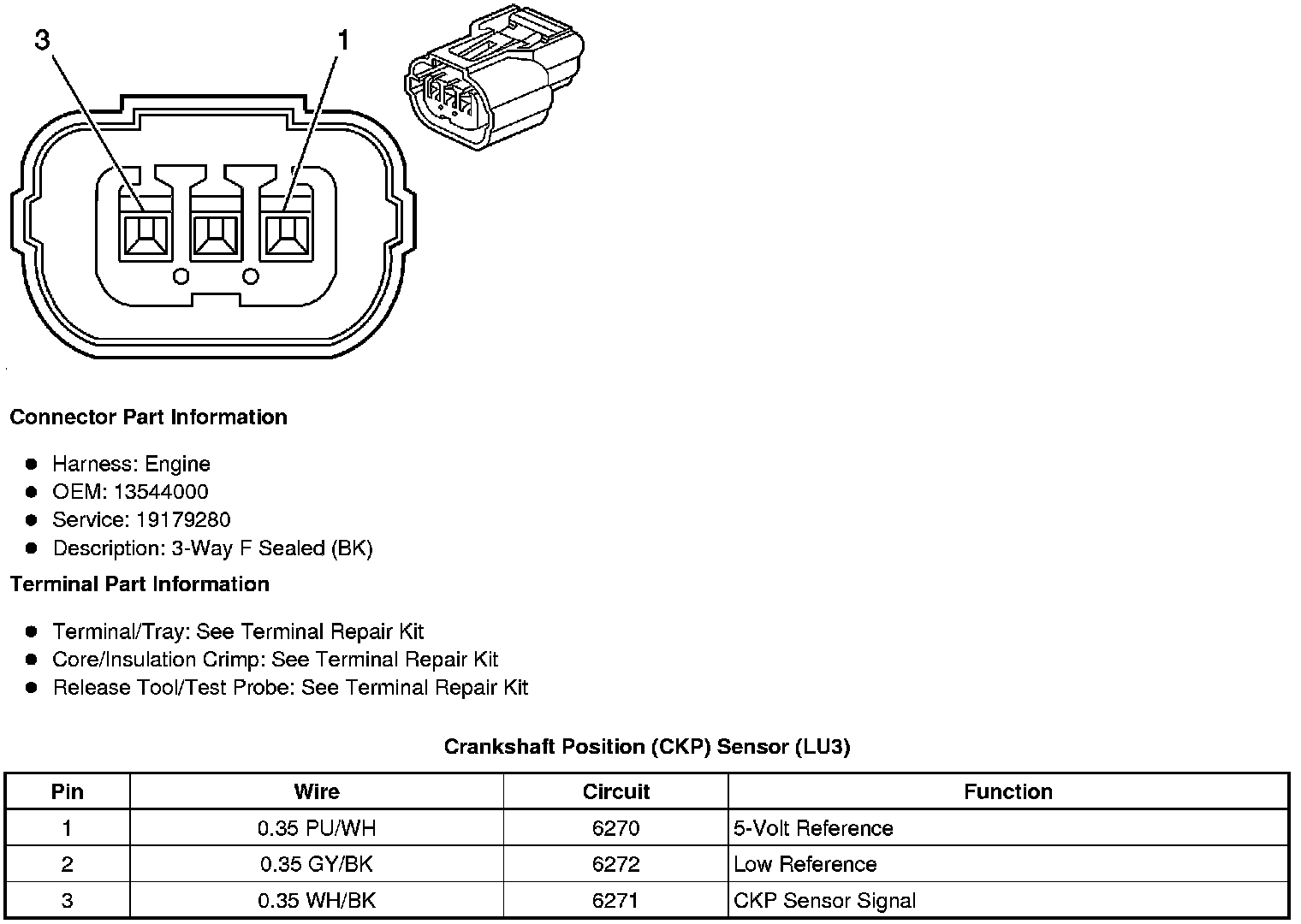

Crankshaft Position (CKP) Sensor (LU3)

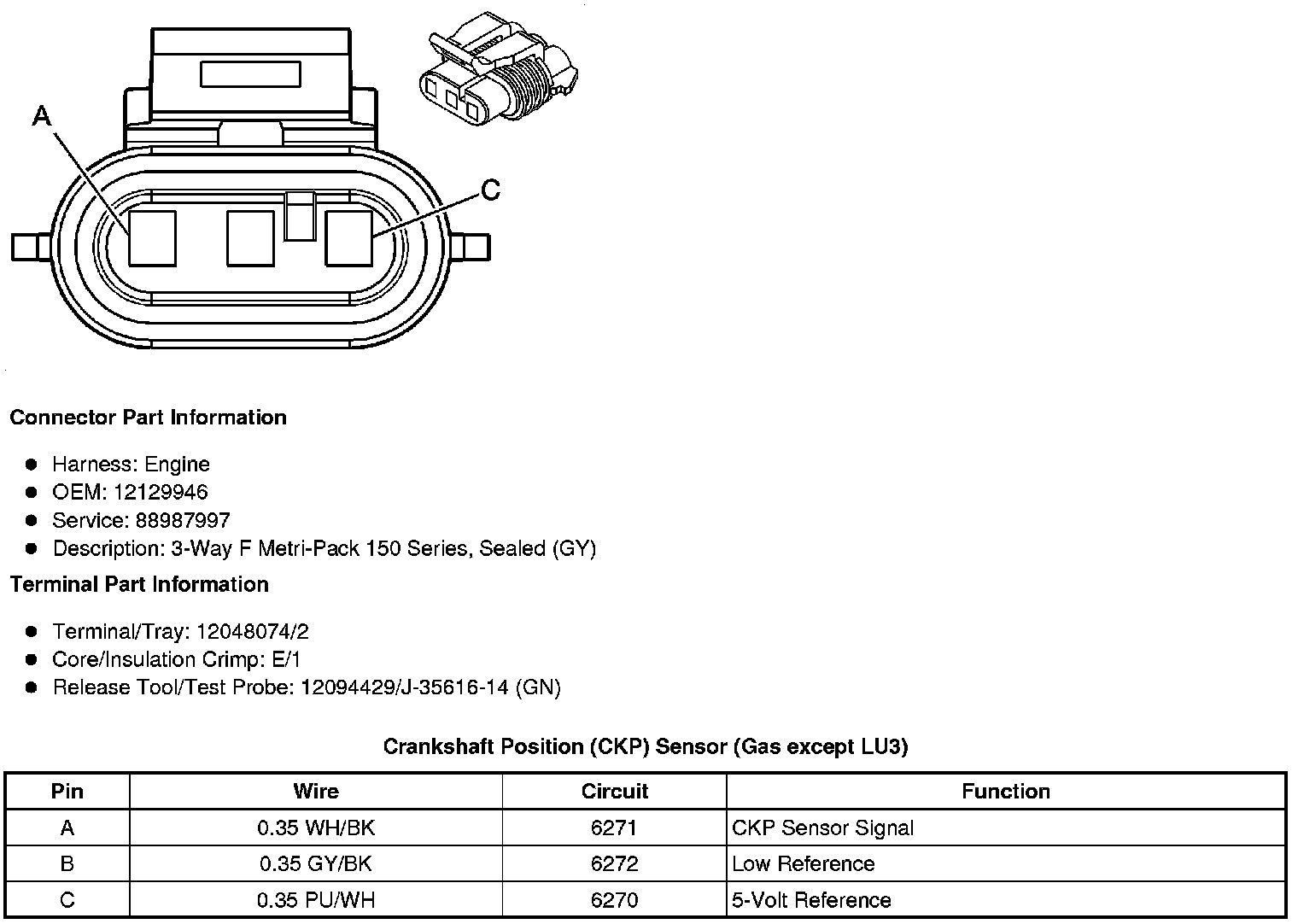

Crankshaft Position (CKP) Sensor (Gas except LU3)

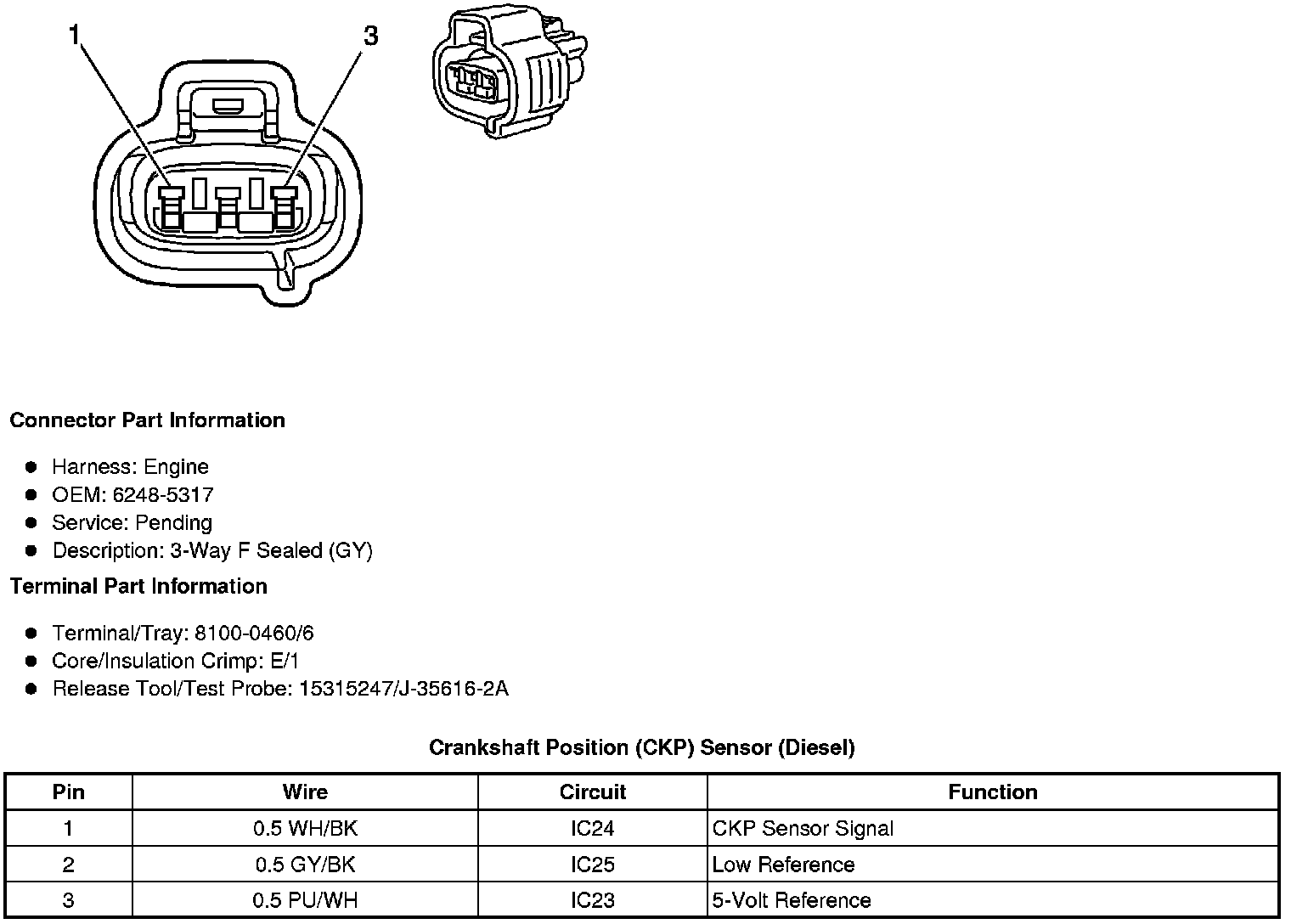

Crankshaft Position (CKP) Sensor (Diesel)
