Fuel Level Sensor: Diagrams




Component Connector End Views

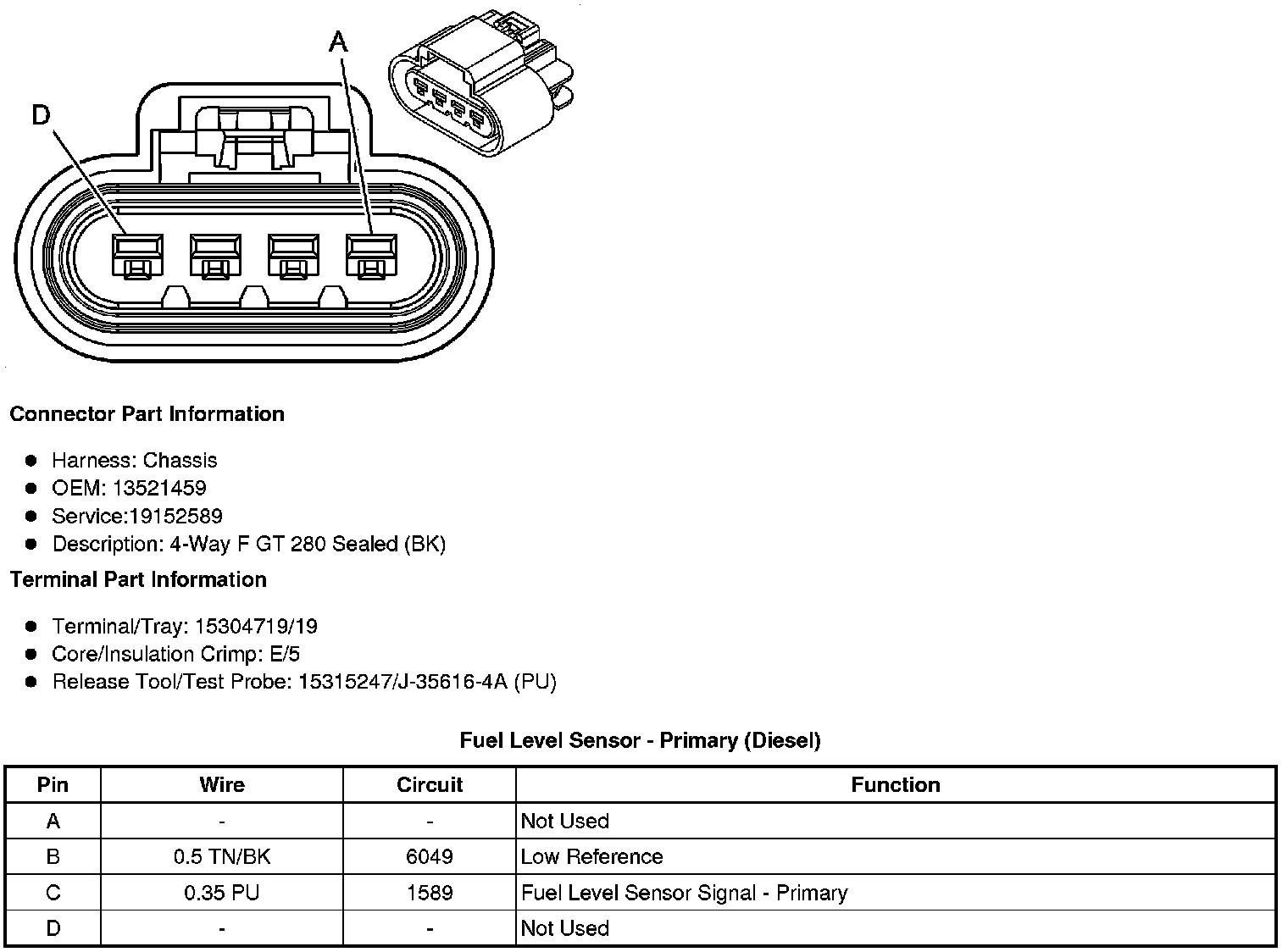

Fuel Level Sensor - Primary (Diesel)

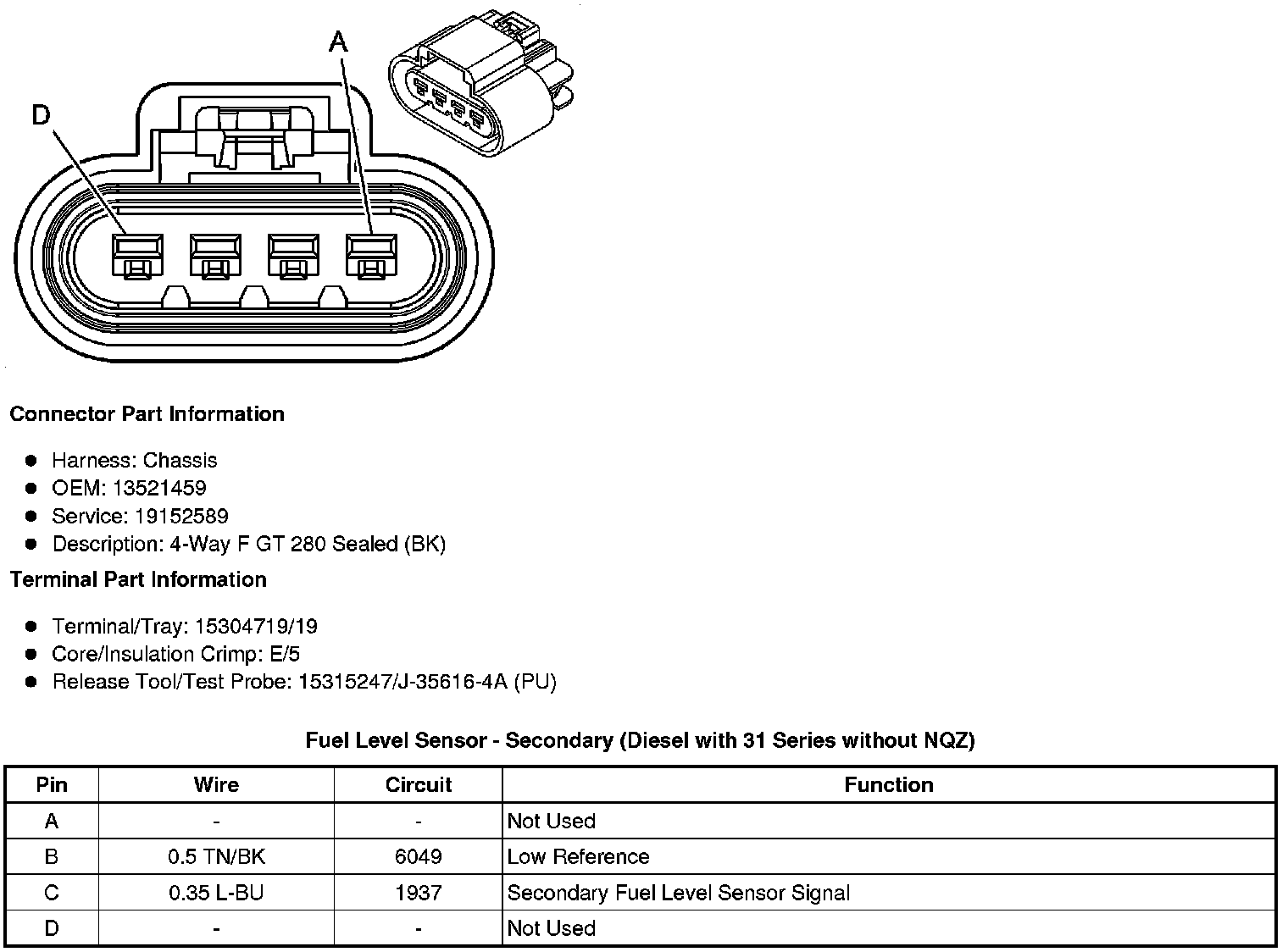

Fuel Level Sensor - Secondary (Diesel with 31 Series without NQZ)
