Battery Current Sensor: Diagrams

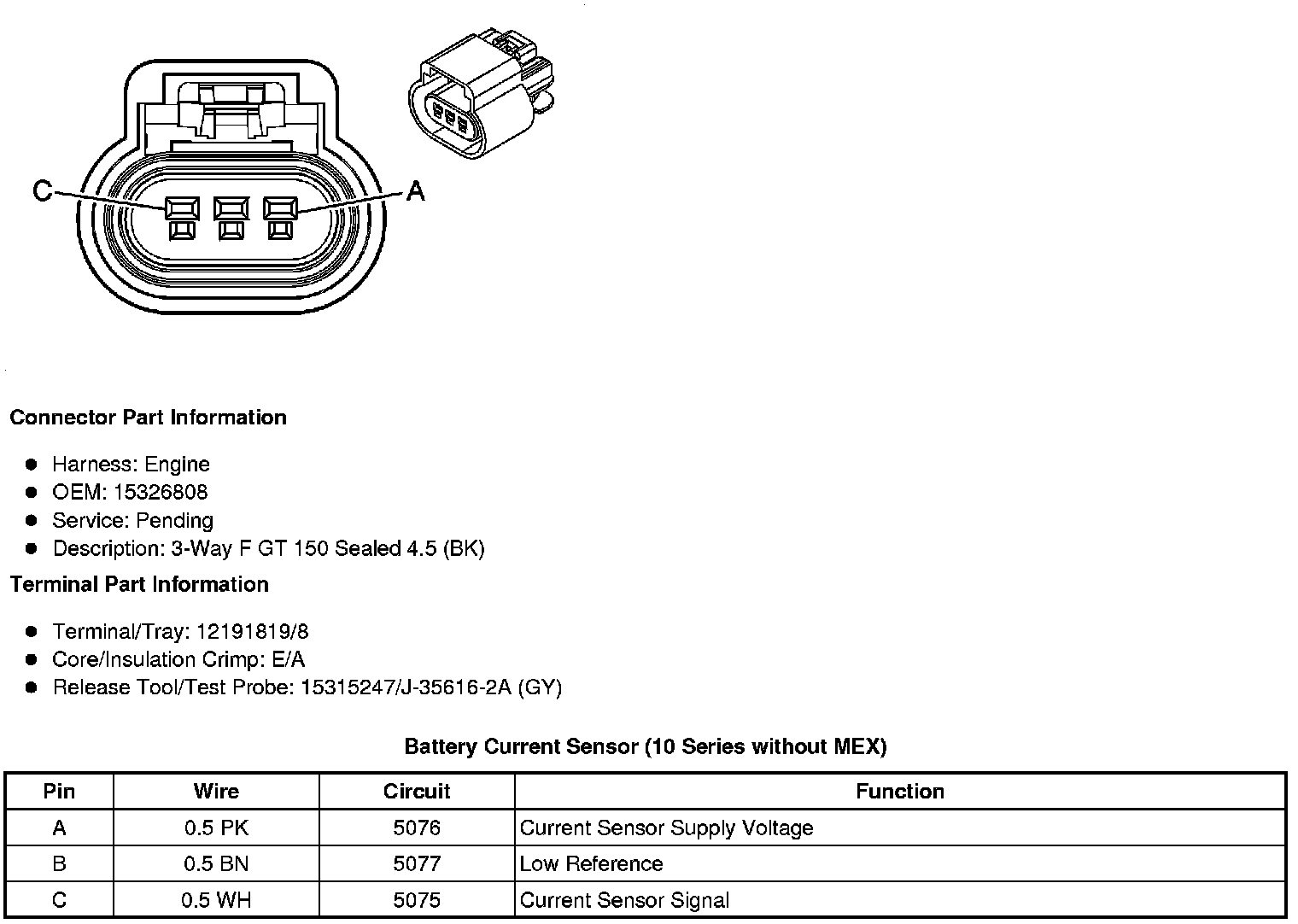

Component Connector End Views

Battery Current Sensor (10 Series without MEX)
