GMC
>>
2010
>>
Yukon Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
>>
Infrared Transmitter
Infrared Transmitter

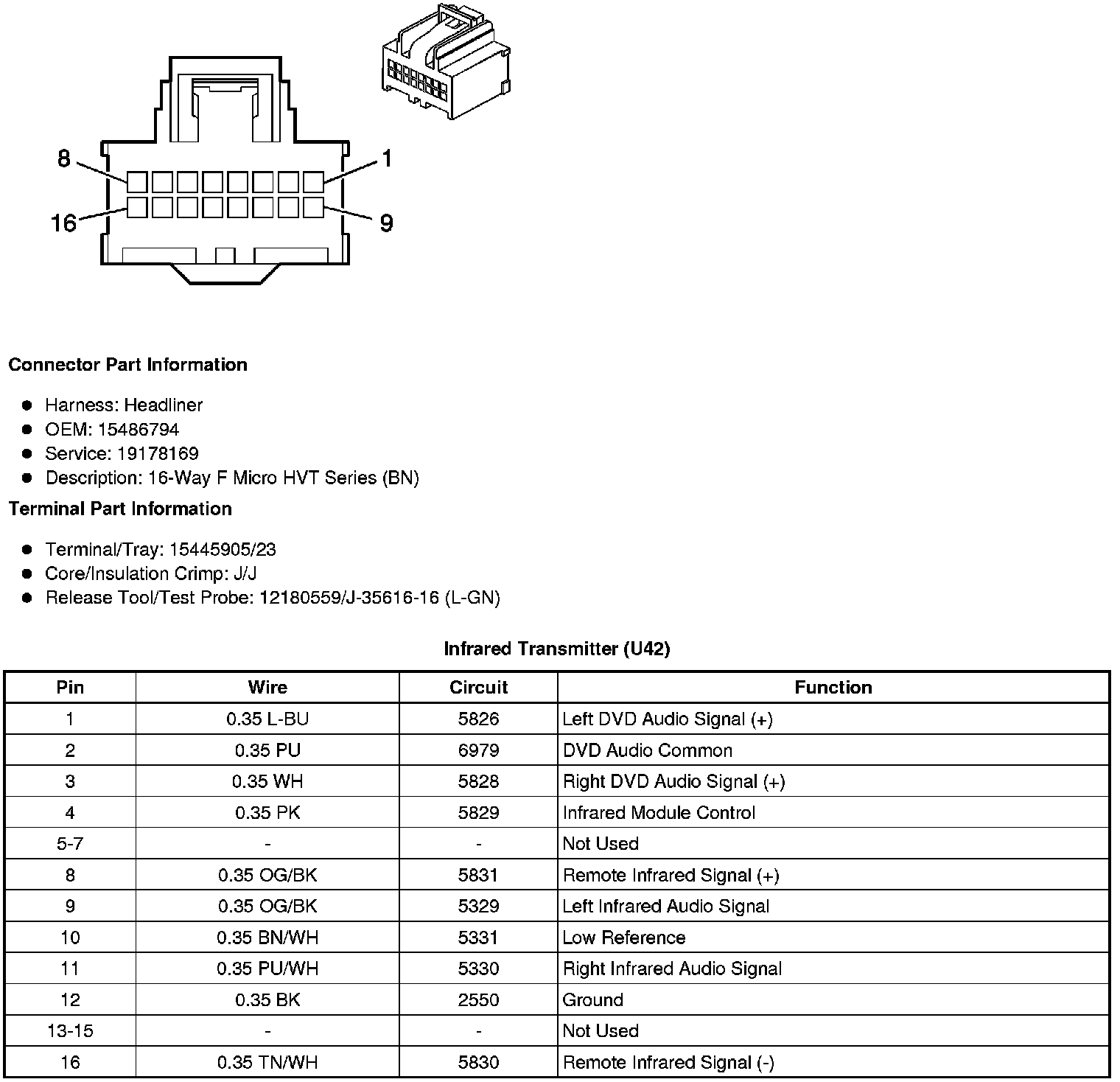

Component Connector End Views
Infrared Transmitter (U42)
