Keyless Entry Receiver
Keyless Entry Receiver

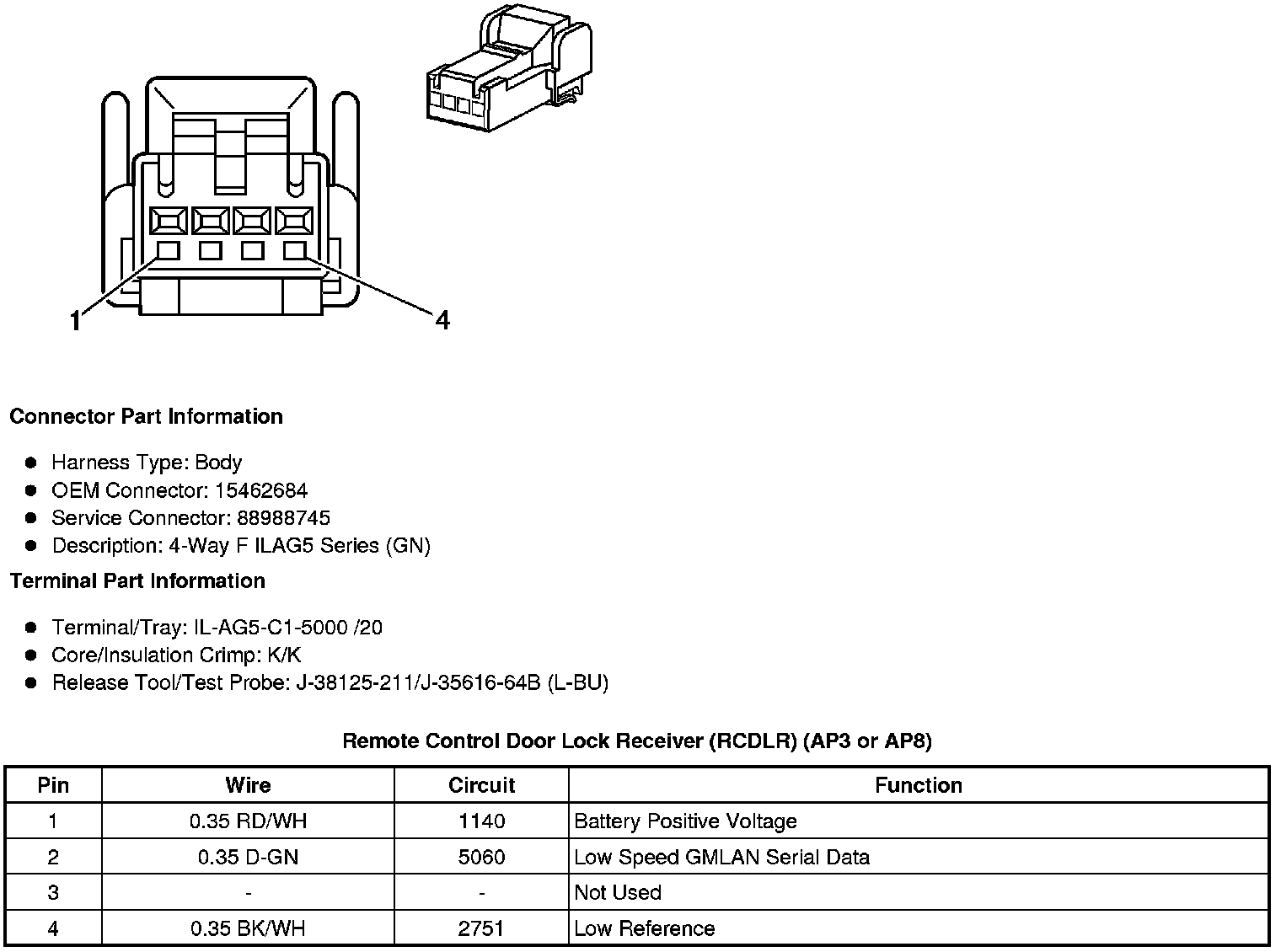

Component Connector End Views
Remote Control
Door Lock Receiver (RCDLR) (AP3 or AP8)
