Front End Sensor




Component Connector End Views

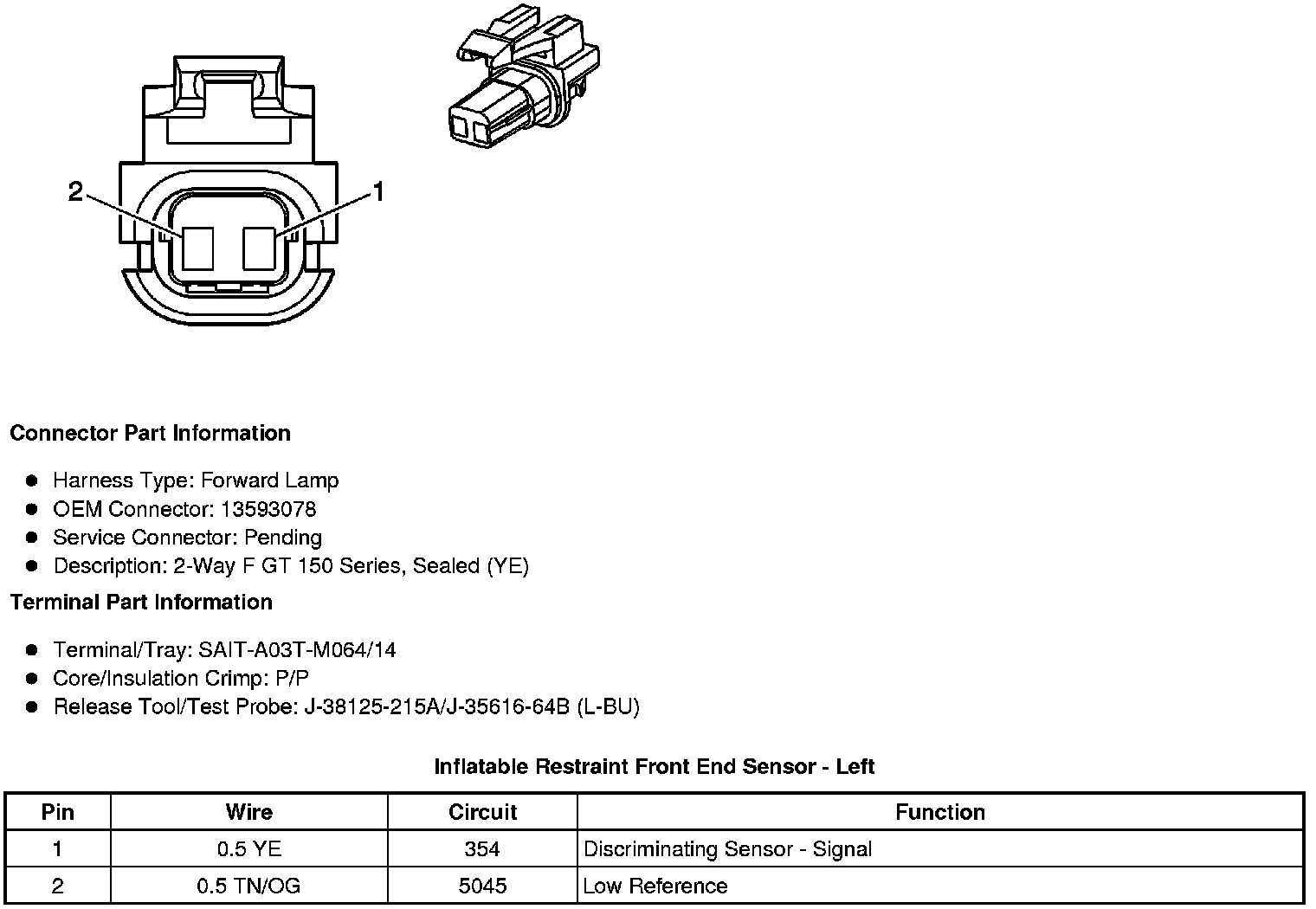

Inflatable Restraint Front End Sensor - Left

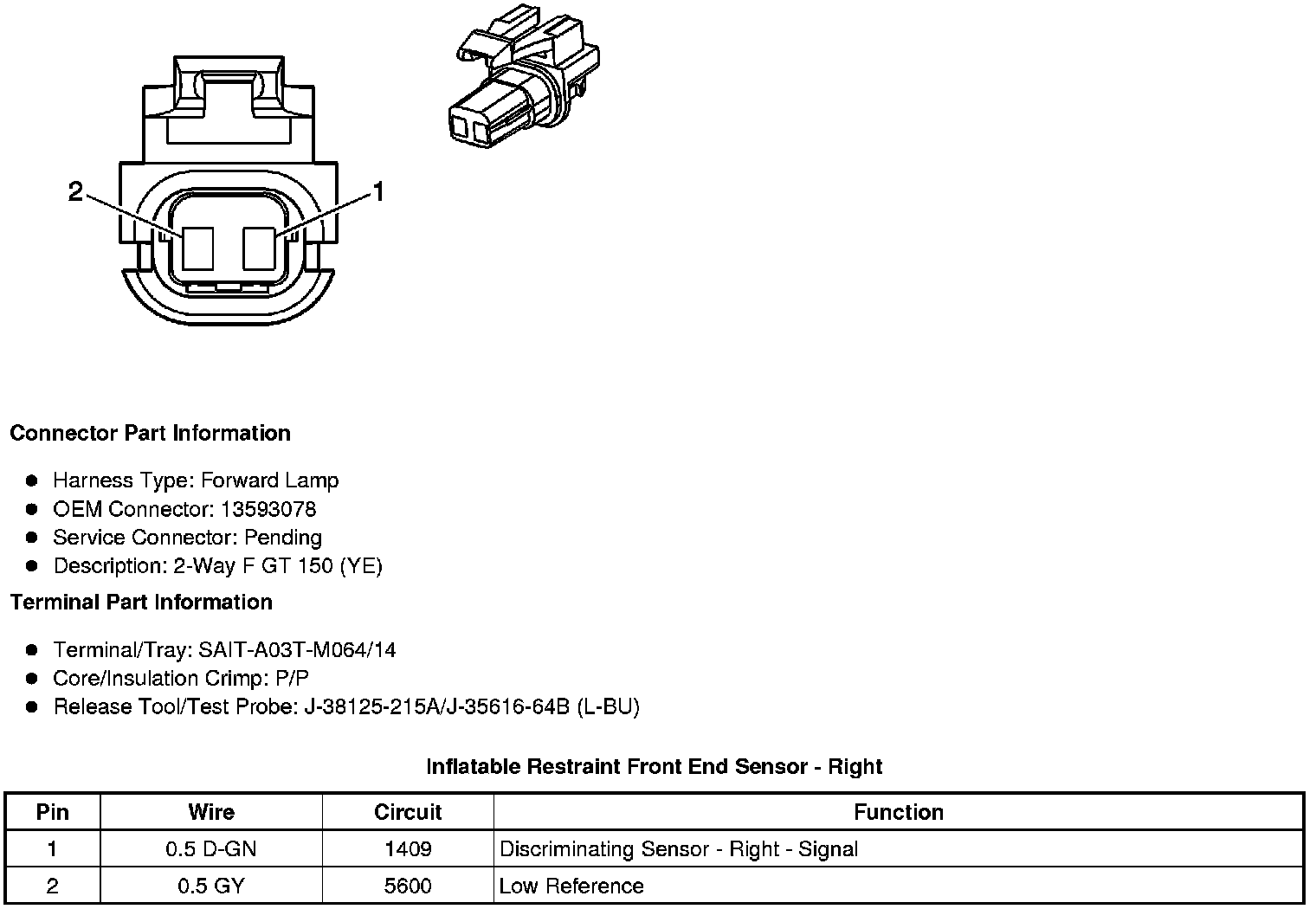

Inflatable Restraint Front End Sensor - Right
