Air Bag Control Module: Diagrams

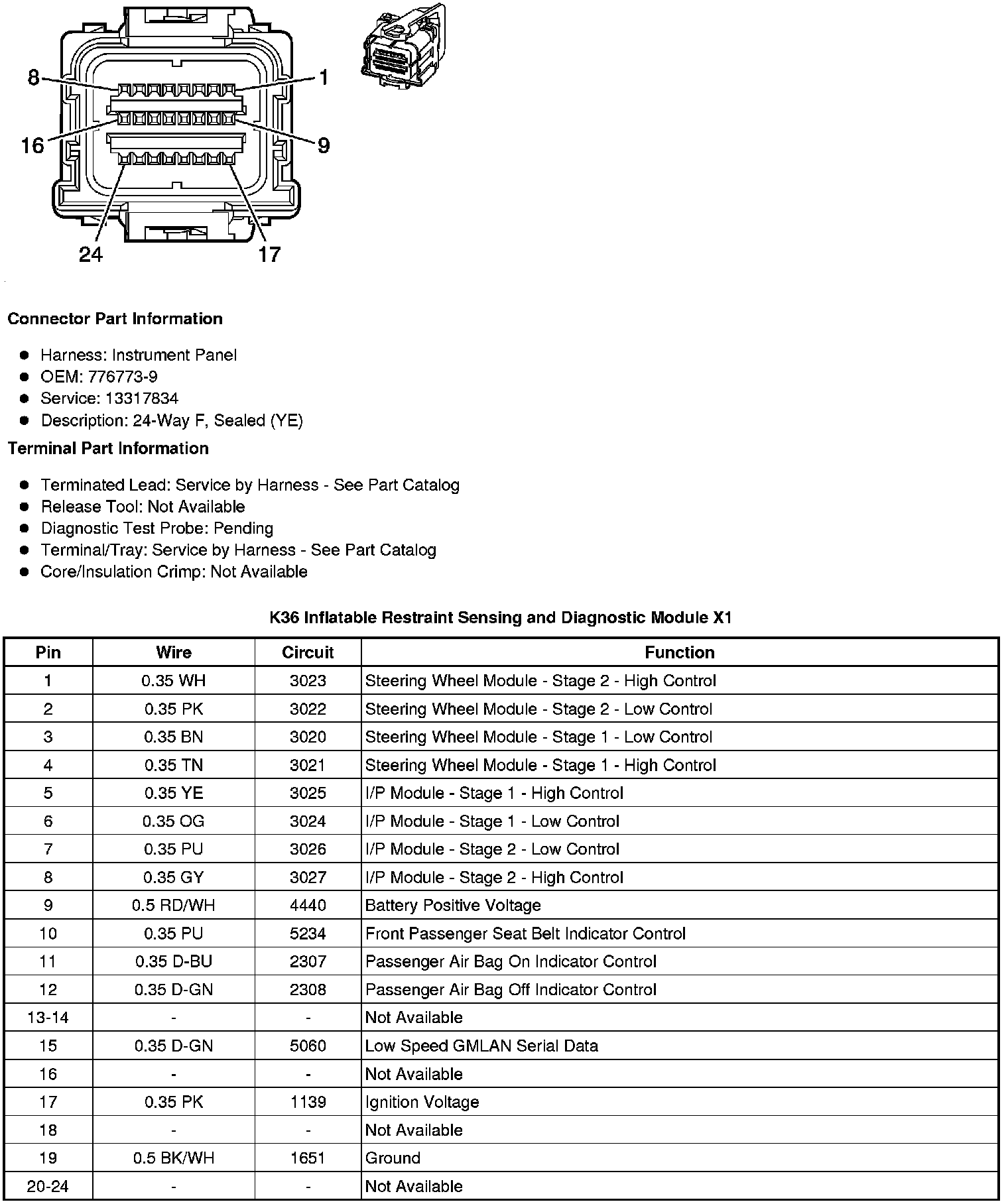

K36 Inflatable Restraint Sensing and Diagnostic Module X1

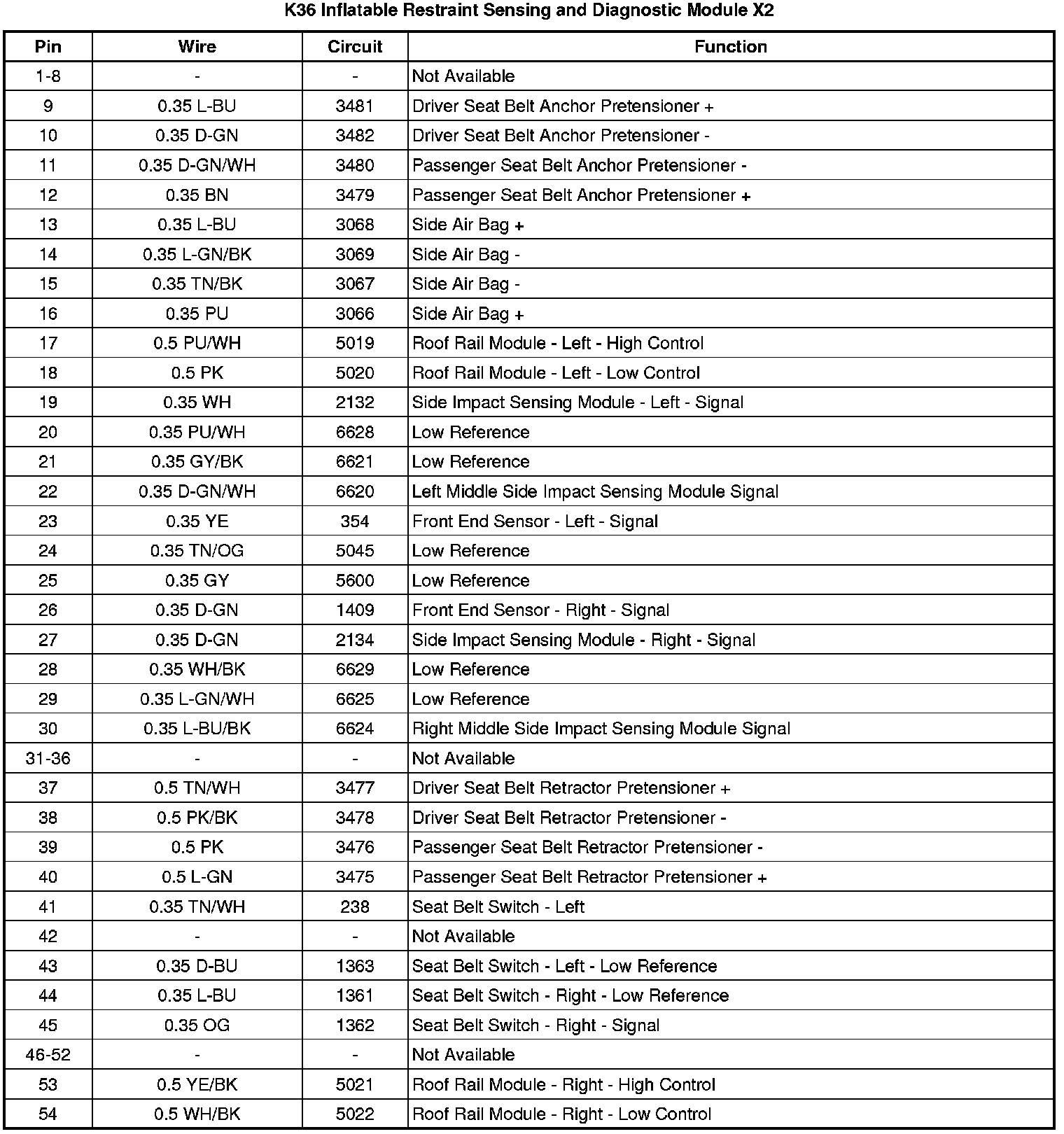

K36 Inflatable Restraint Sensing and Diagnostic Module X2
