Home >> GMC >> 2010 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor >> Diagrams

Manifold Pressure/Vacuum Sensor: Diagrams

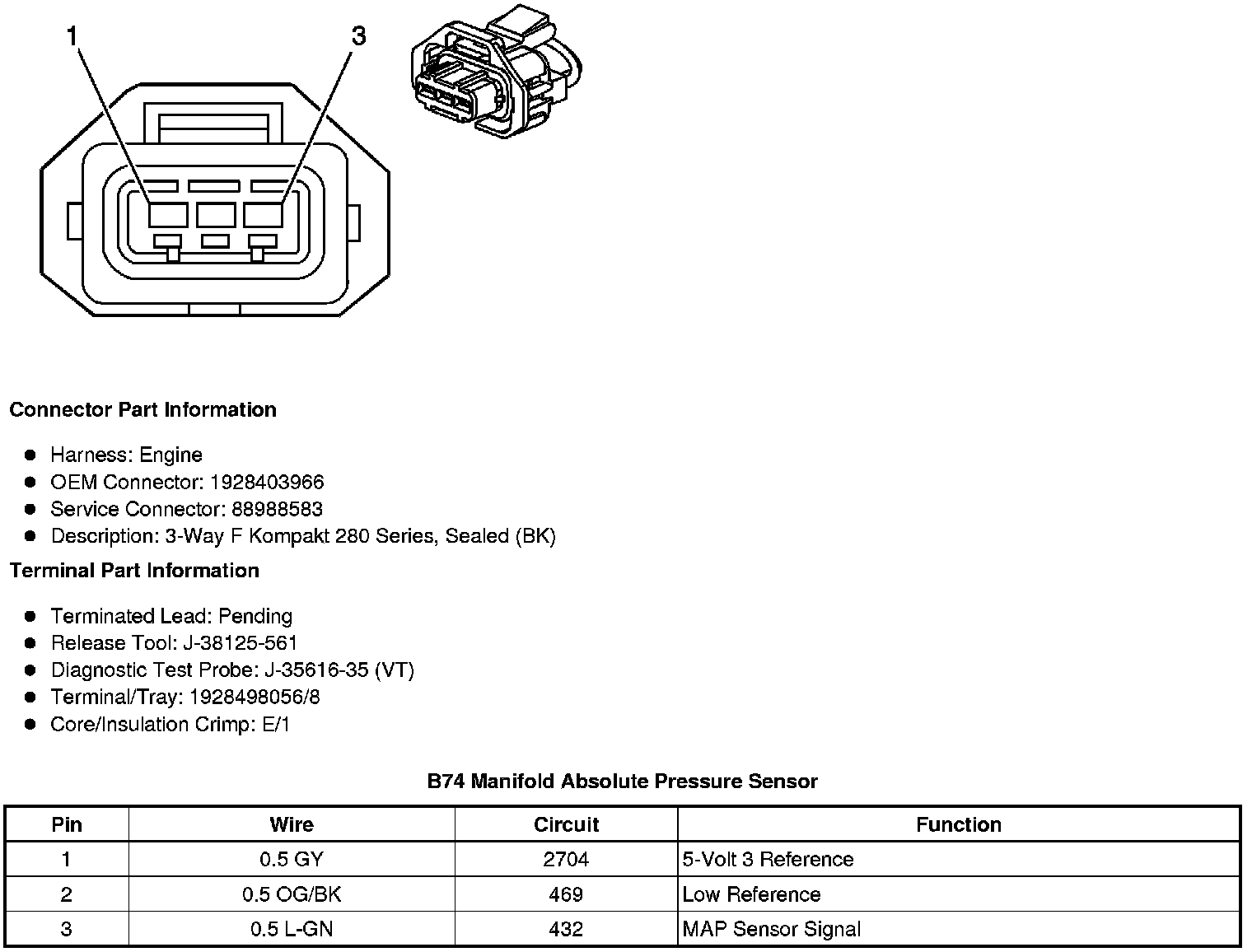

B74 Manifold Absolute Pressure Sensor
