Control Assembly: Diagrams

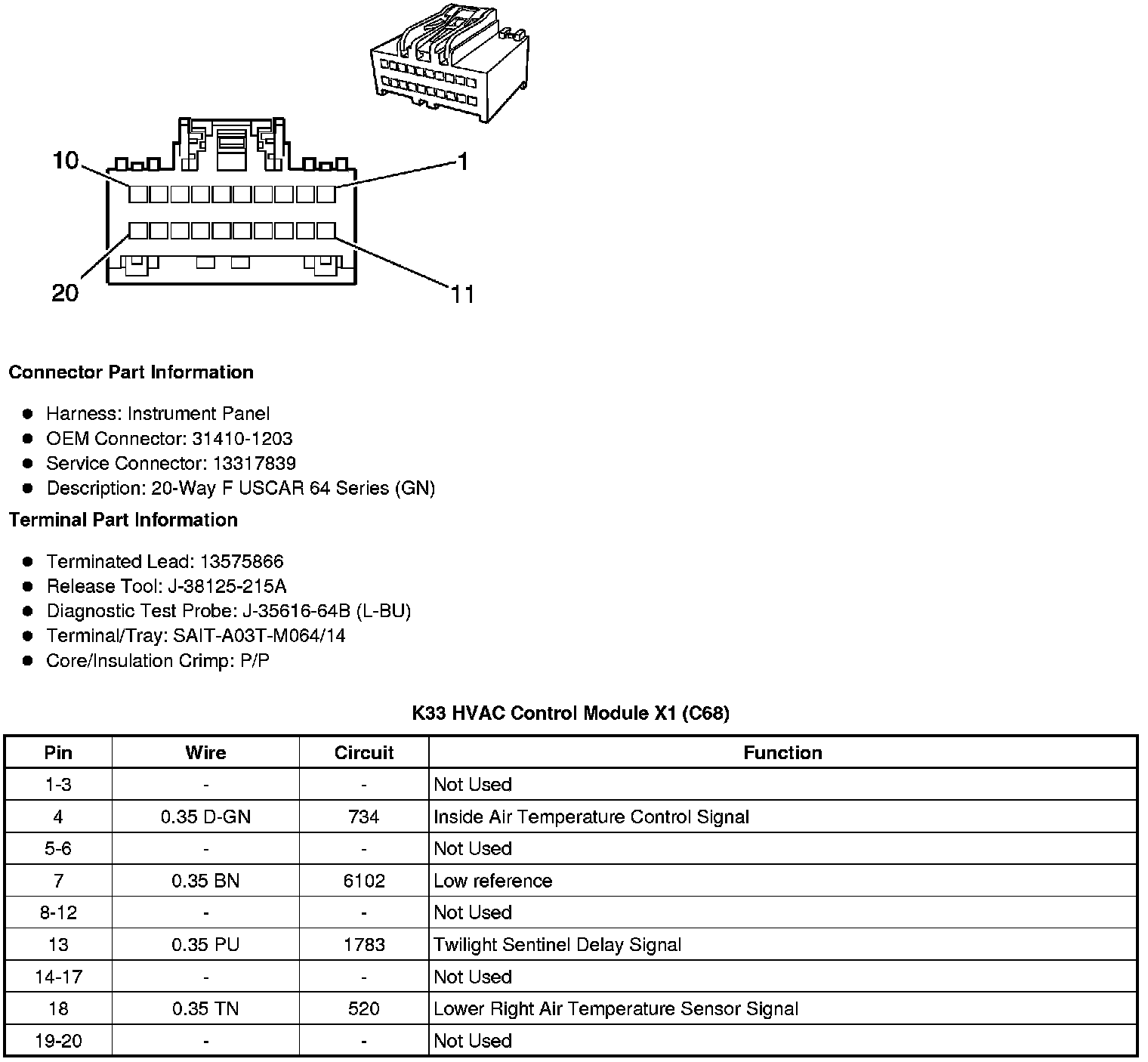

K33 HVAC Control Module X1 (C68)

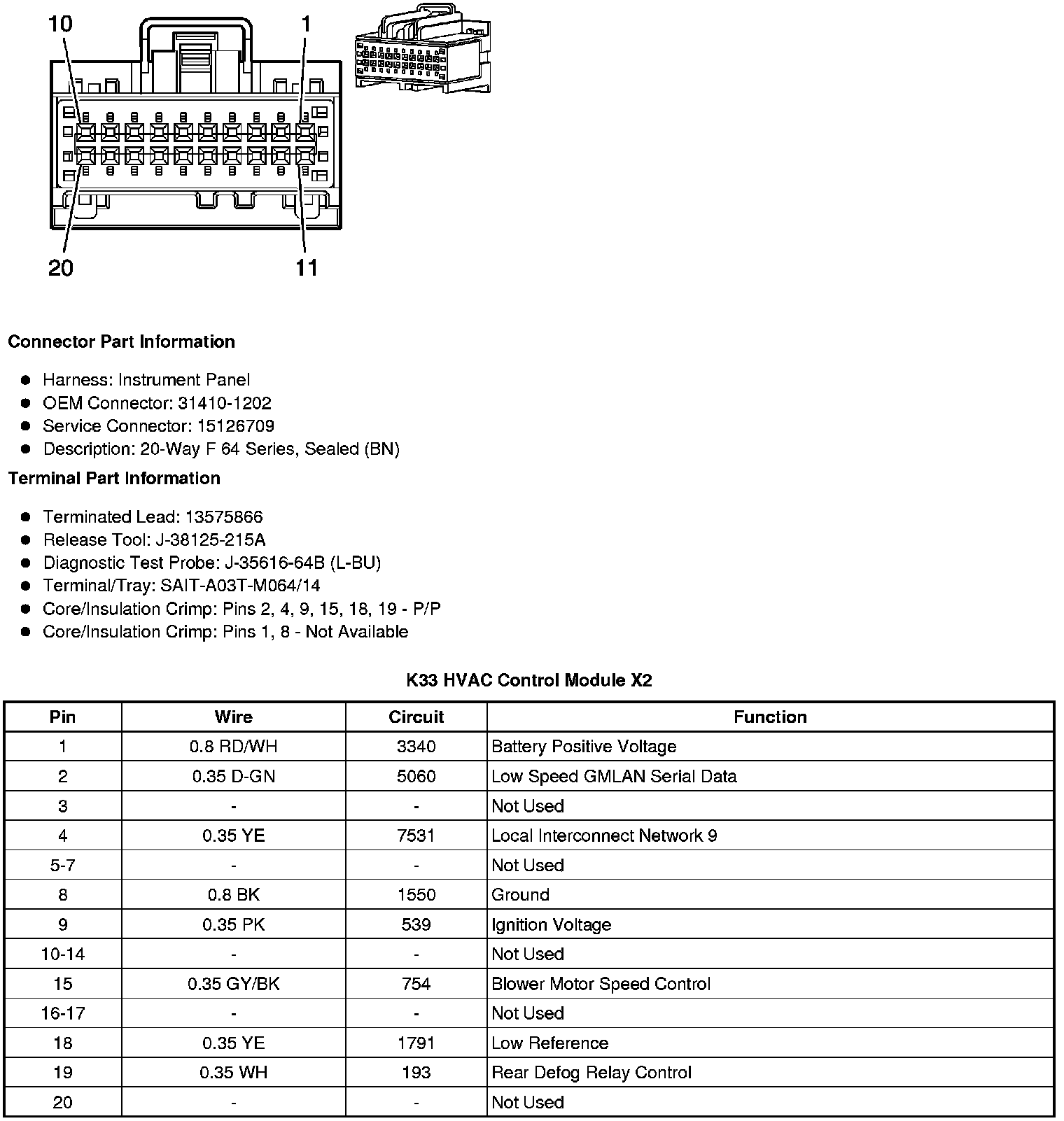

K33 HVAC Control Module X2

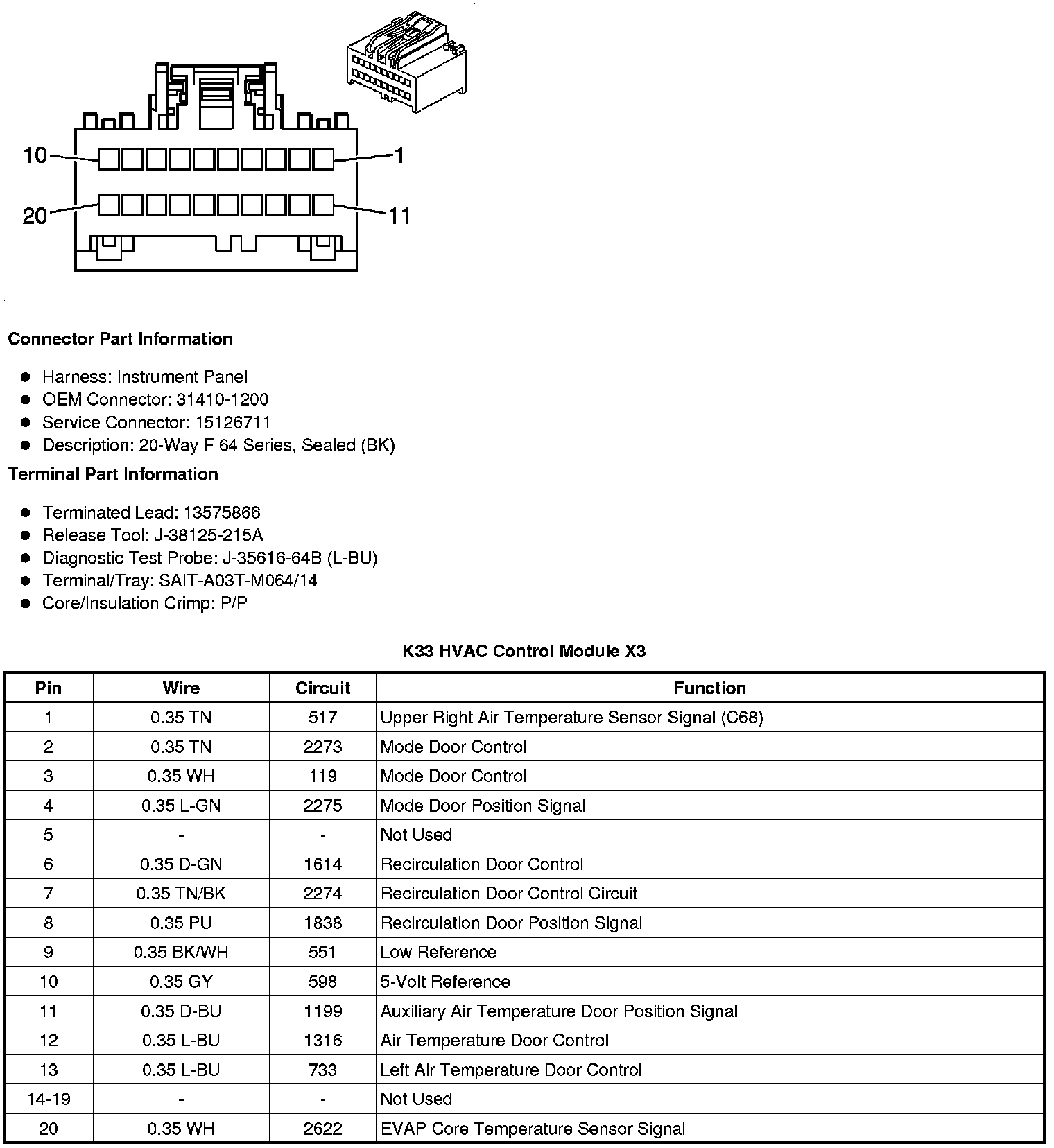

K33 HVAC Control Module X3
