Home >> GMC >> 2010 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Entertainment System Control Module >> Diagrams

Entertainment System Control Module: Diagrams

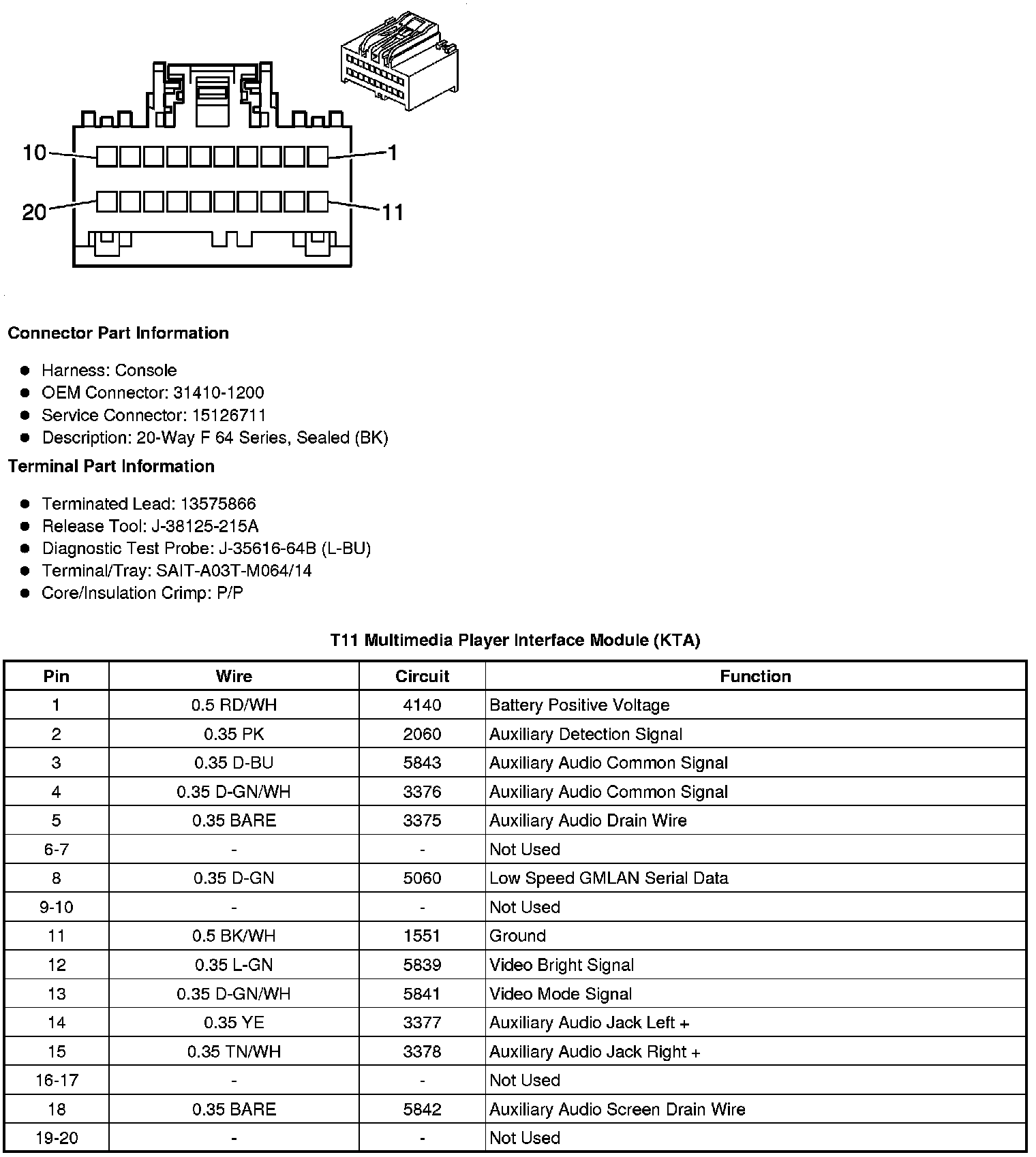

T11 Multimedia Player Interface Module (KTA)
