Vehicle Speed Sensor: Diagrams



Component Connector End Views

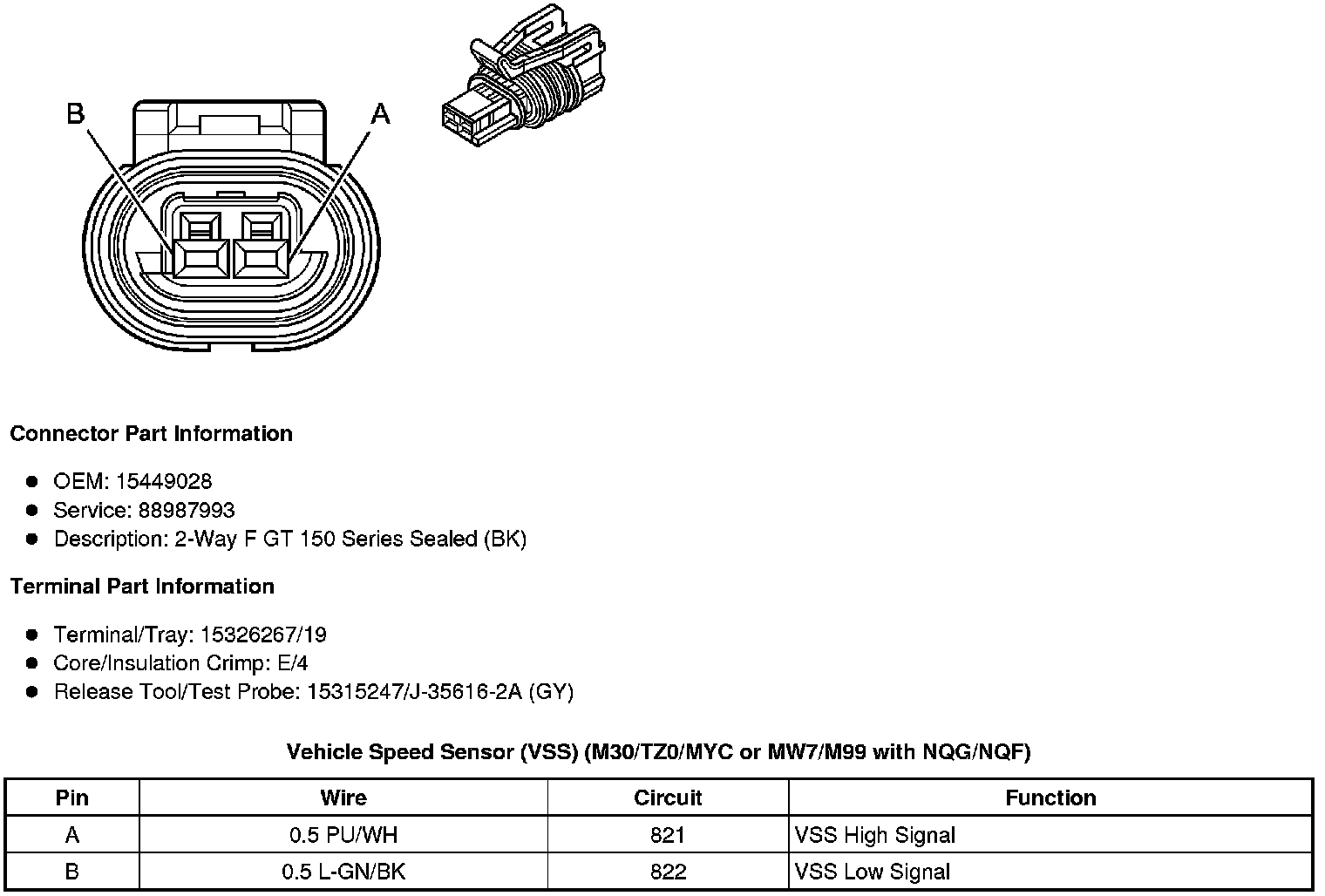

Vehicle Speed Sensor (VSS) (M30/TZ0/MYC or MW7/M99 with NQG/NQF)

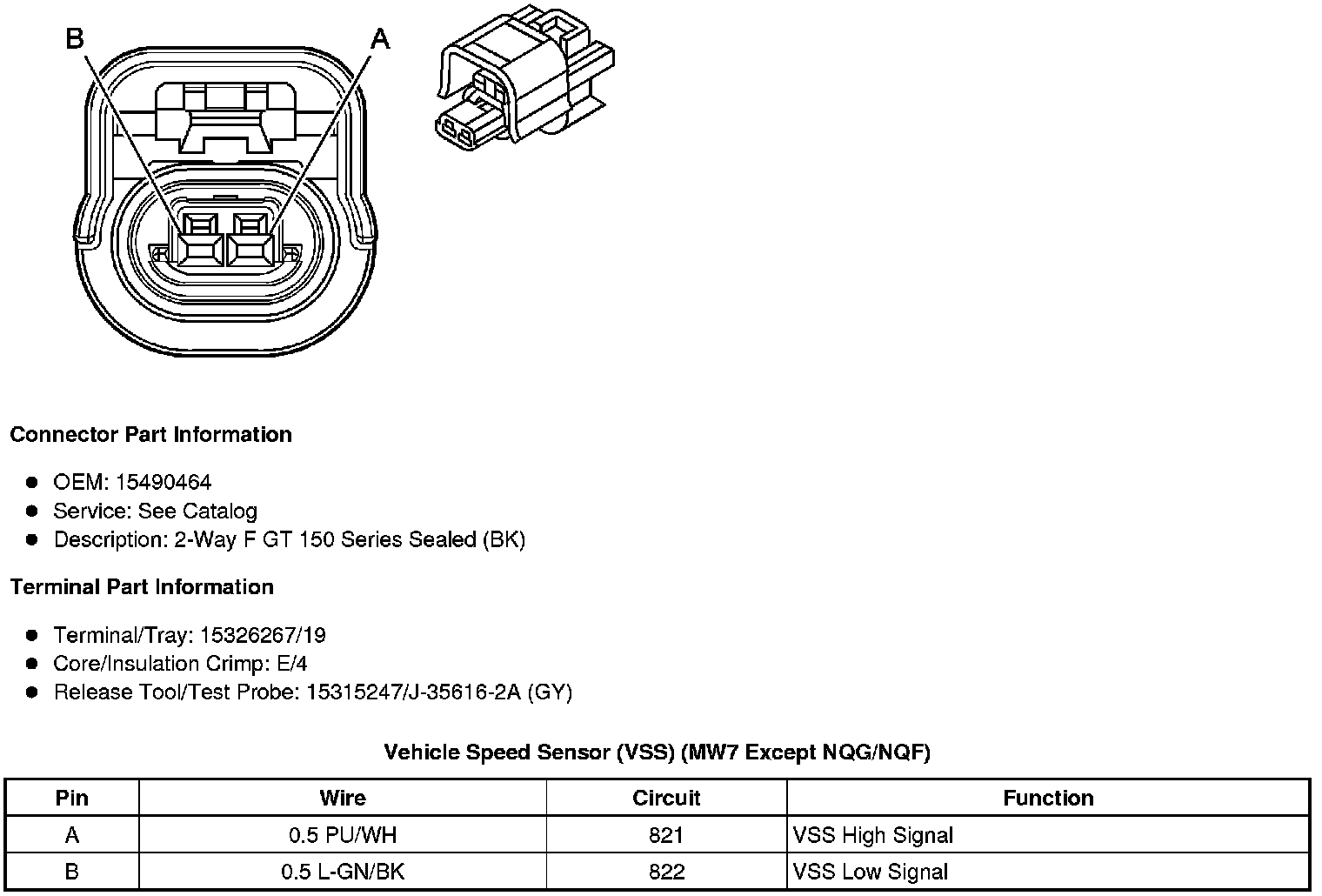

Vehicle Speed Sensor (VSS) (MW7 Except NQG/NQF)
