Oil Pressure Sensor: Diagrams



Component Connector End Views

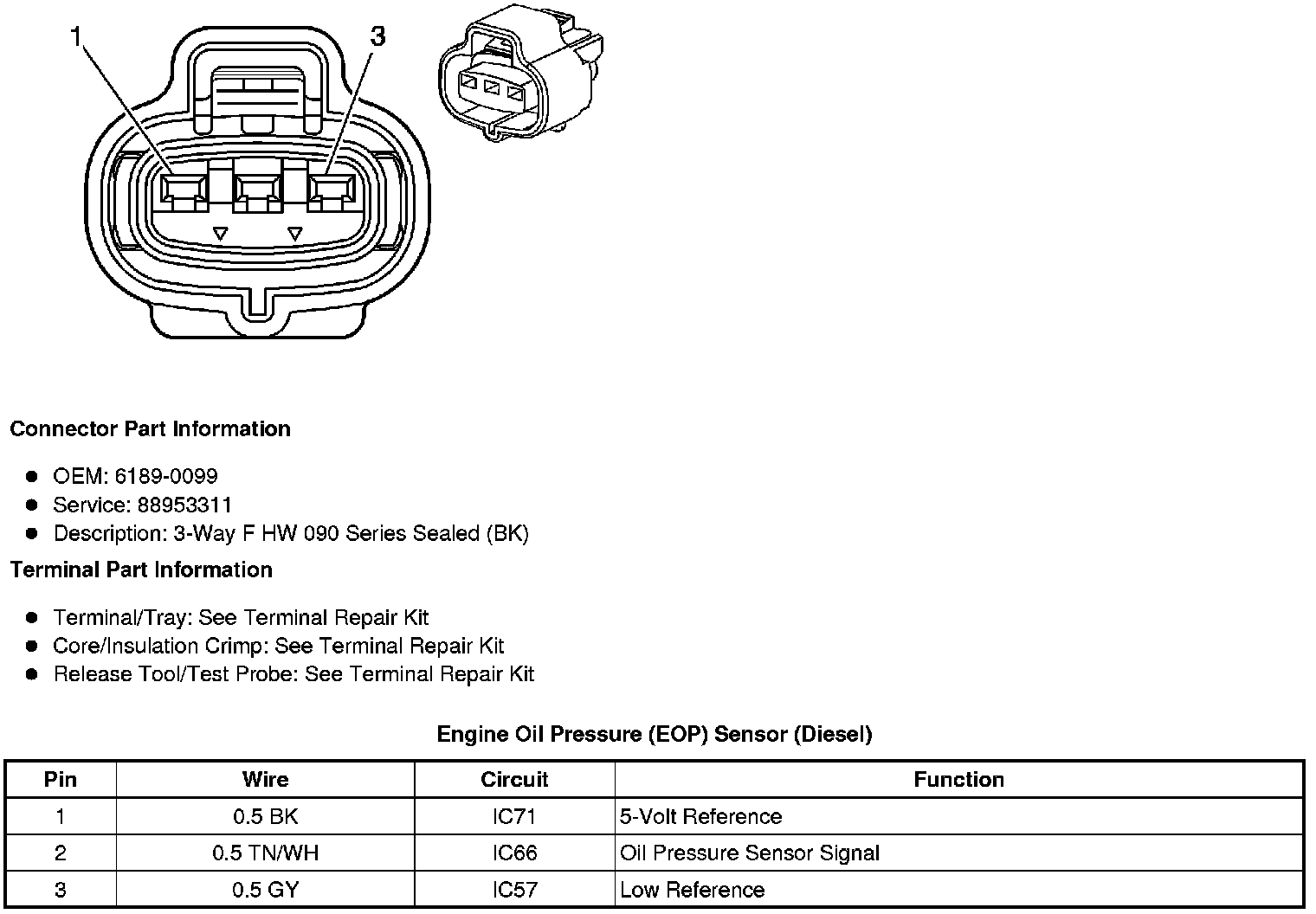

Engine Oil Pressure (EOP) Sensor (Diesel)

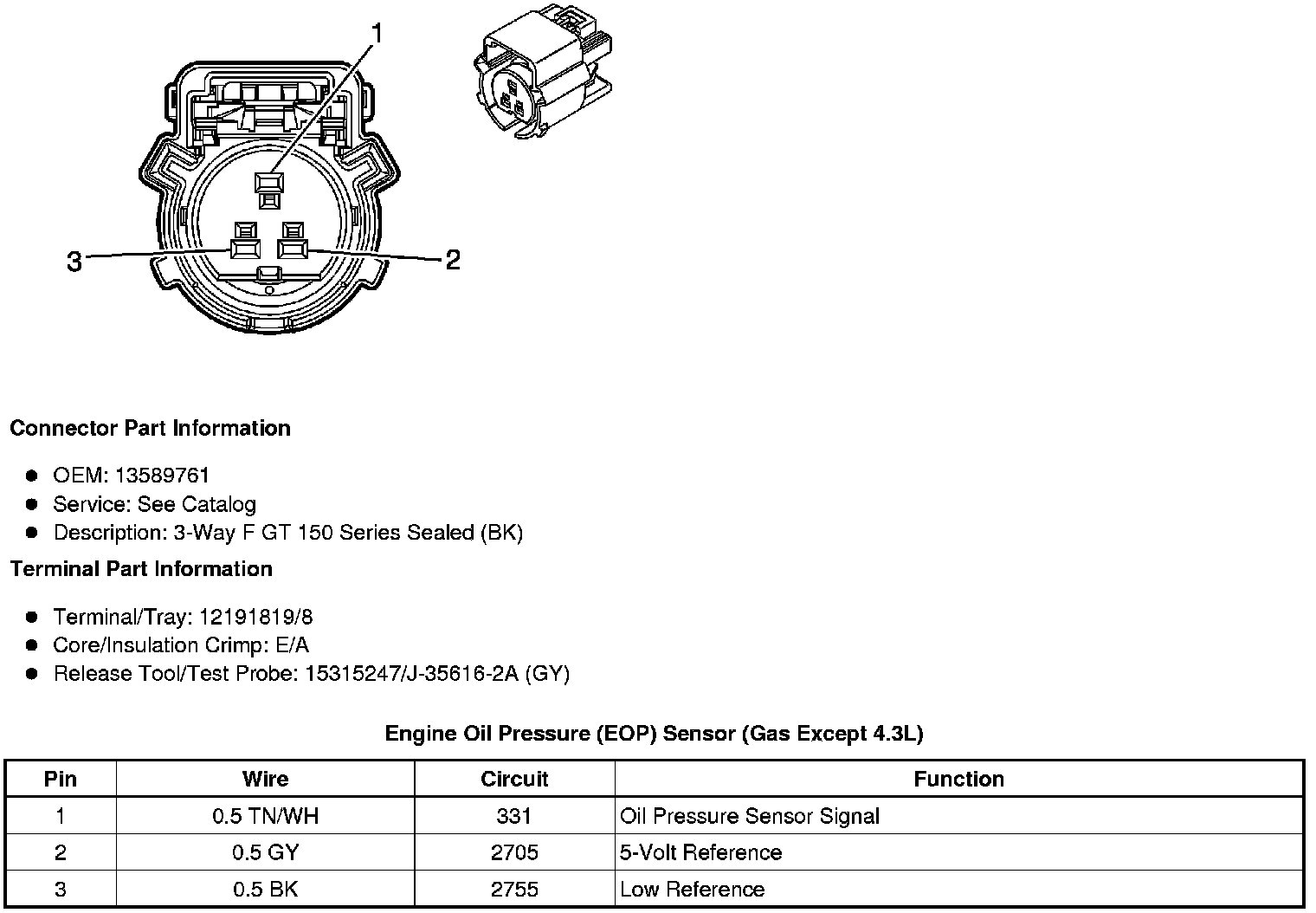

Engine Oil Pressure (EOP) Sensor (Gas Except 4.3L)

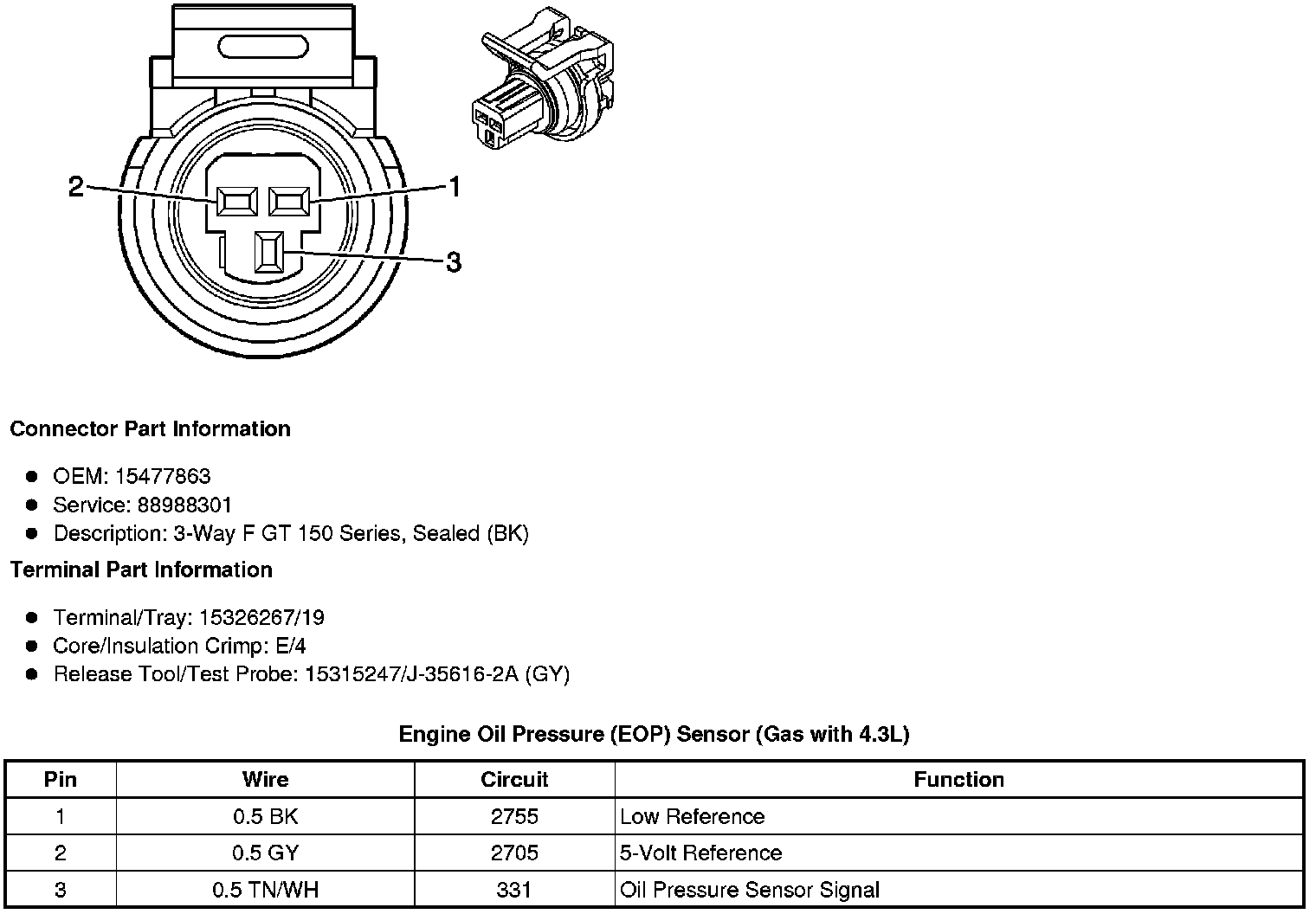

Engine Oil Pressure (EOP) Sensor (Gas with 4.3L)
