Camshaft Position Sensor: Diagrams



Component Connector End Views

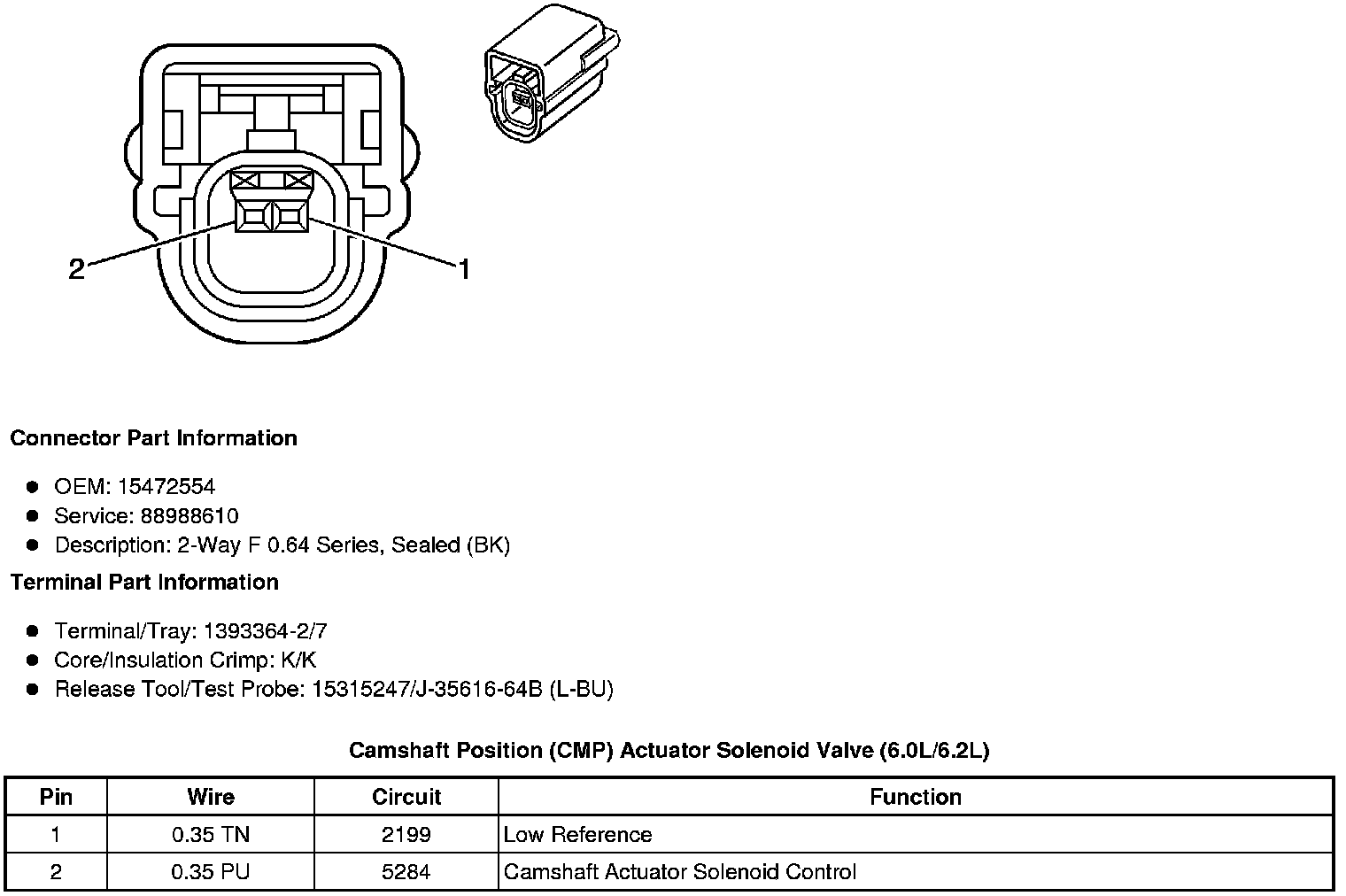

Camshaft Position (CMP) Actuator Solenoid Valve (6.0L/6.2L)

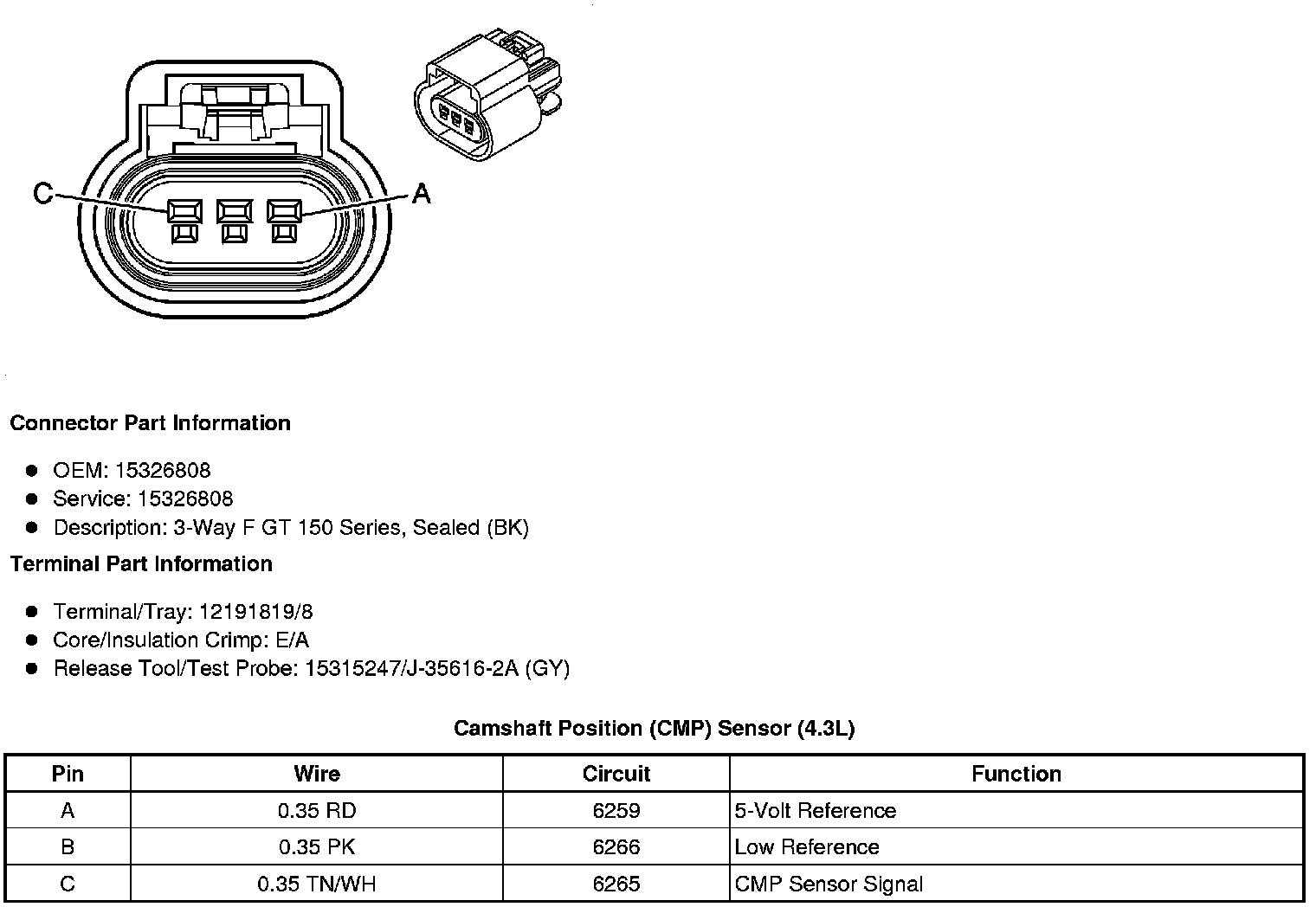

Camshaft Position (CMP) Sensor (4.3L)

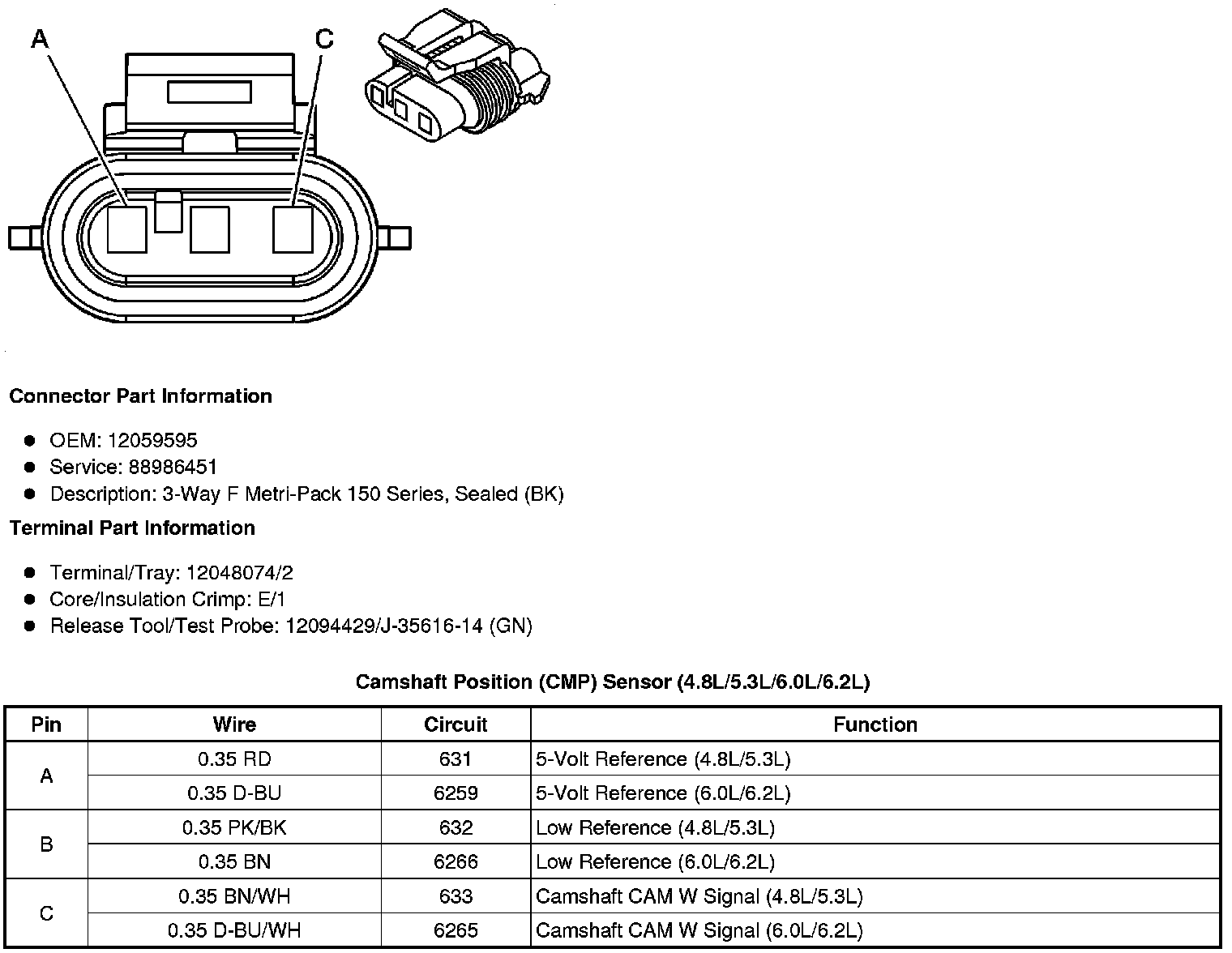

Camshaft Position (CMP) Sensor (4.8L/5.3L/6.0L/6.2L)

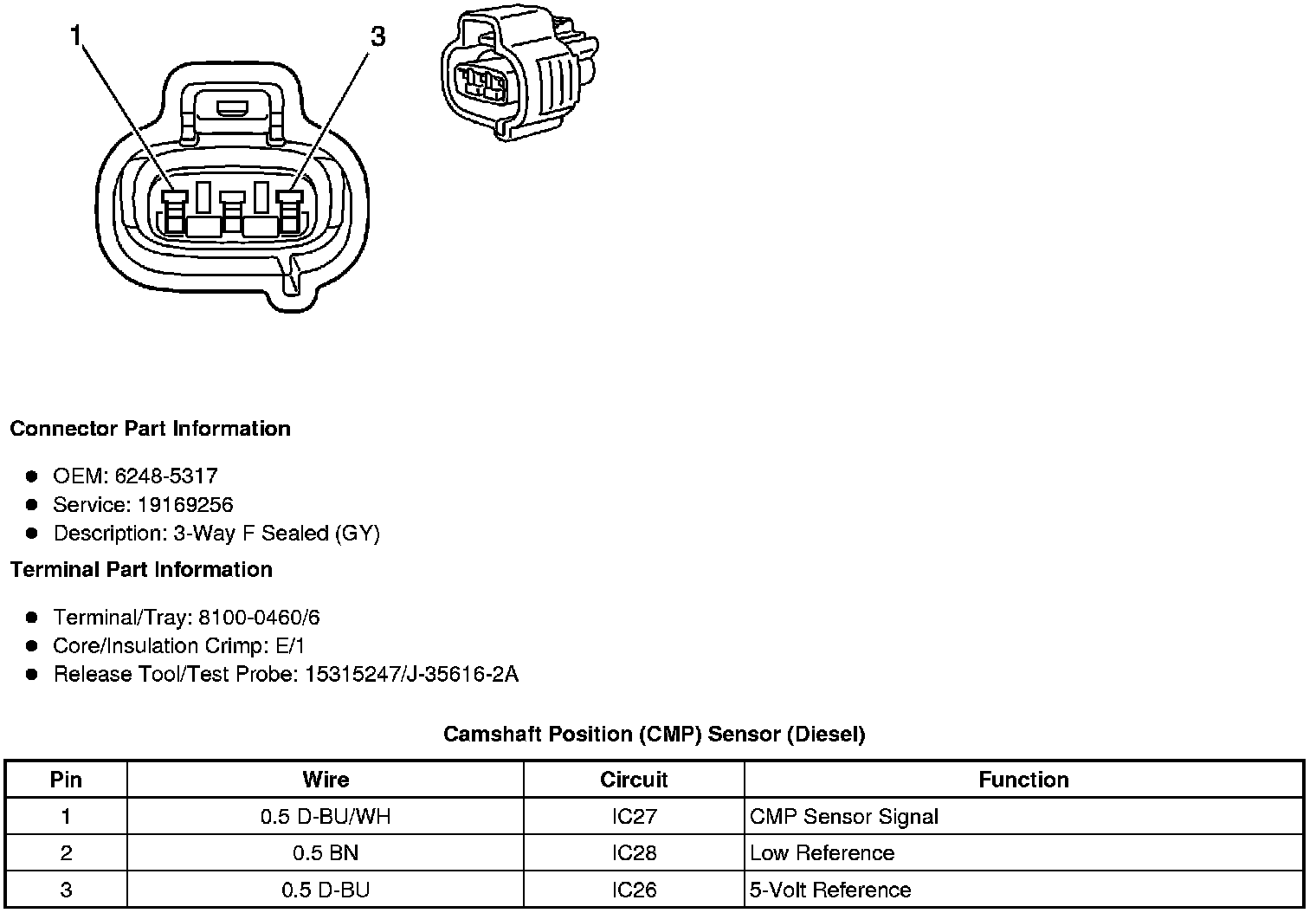

Camshaft Position (CMP) Sensor (Diesel)
