Transmission Position Sensor/Switch: Diagrams

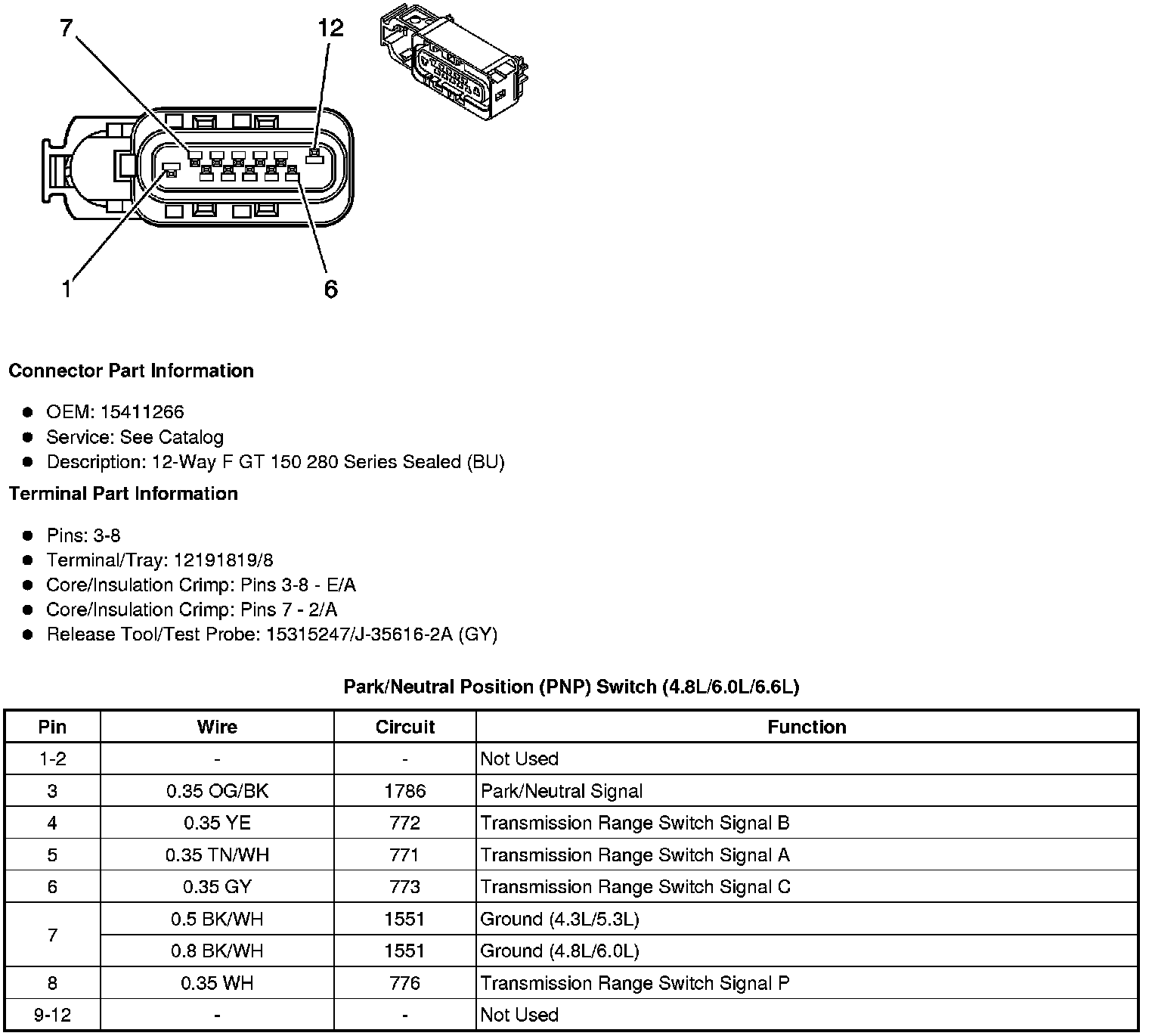

Component Connector End Views
Park/Neutral Position (PNP) Switch (4.8L/6.0L/6.6L)
