Oxygen Sensor: Diagrams




Component Connector End Views

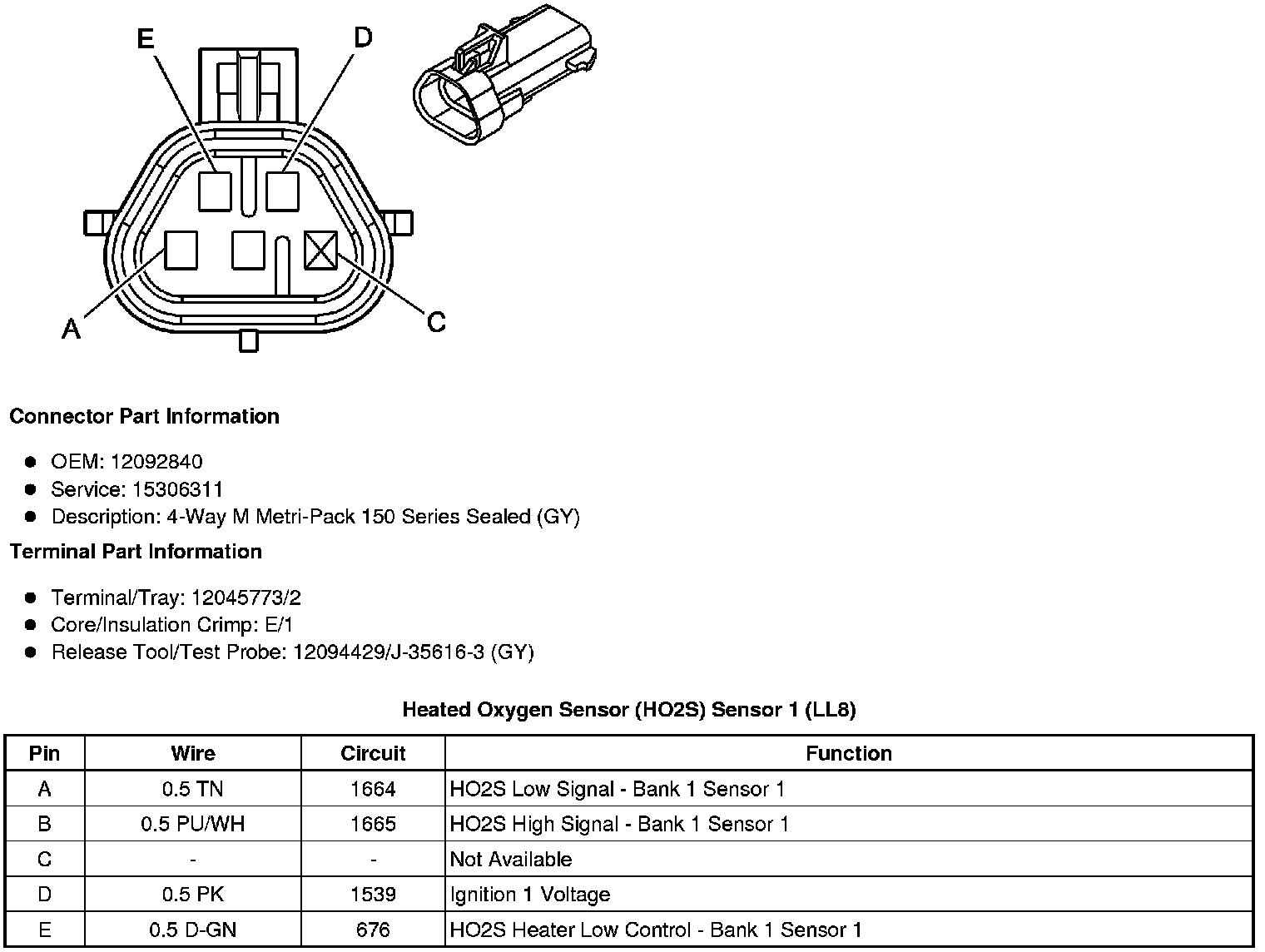

Heated Oxygen Sensor (HO2S) Sensor 1 (LL8)

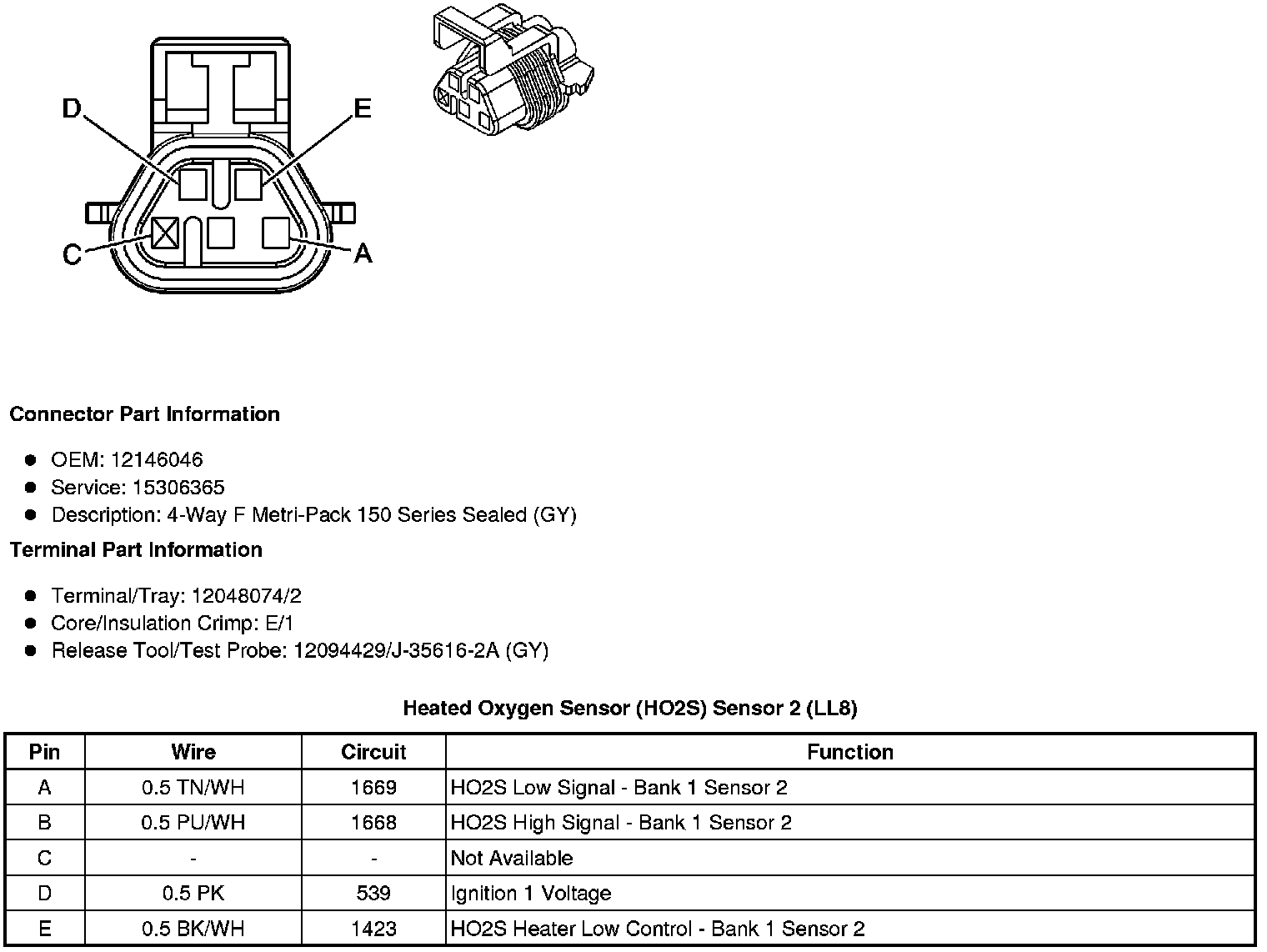

Heated Oxygen Sensor (HO2S) Sensor 2 (LL8)
