System Diagram




Component Connector End Views

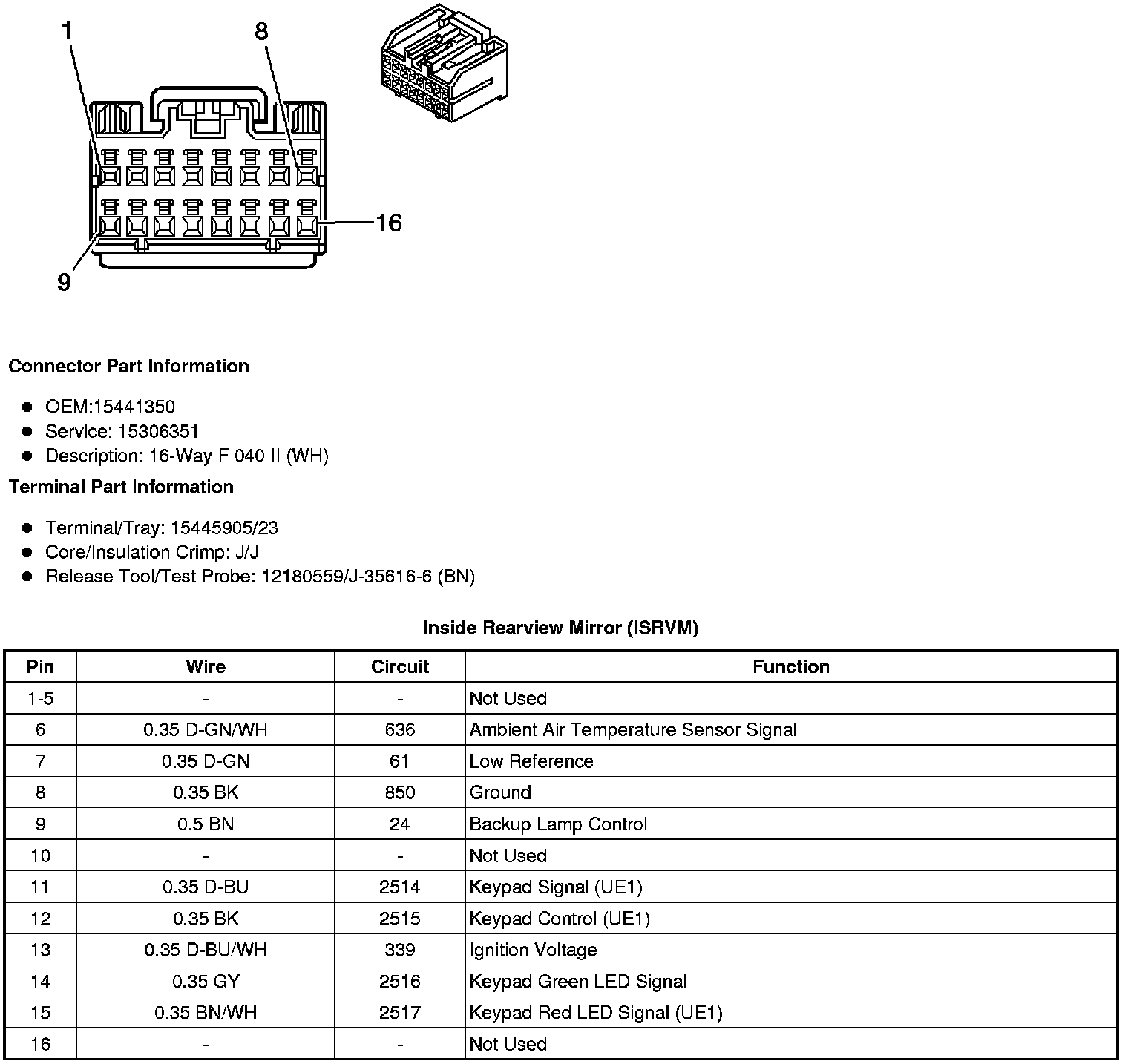

Inside Rearview Mirror (ISRVM)

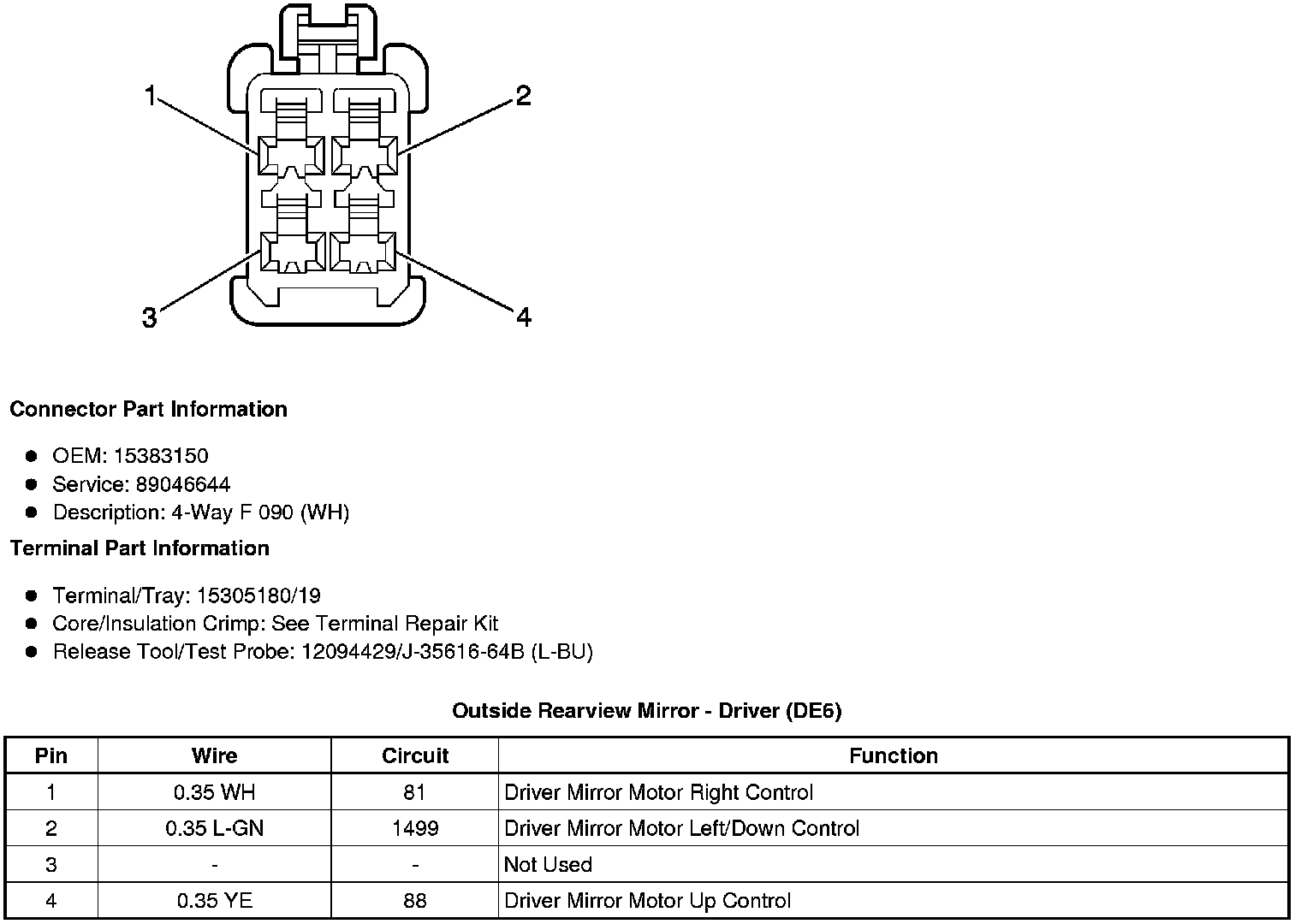

Outside Rearview Mirror - Driver (DE6)

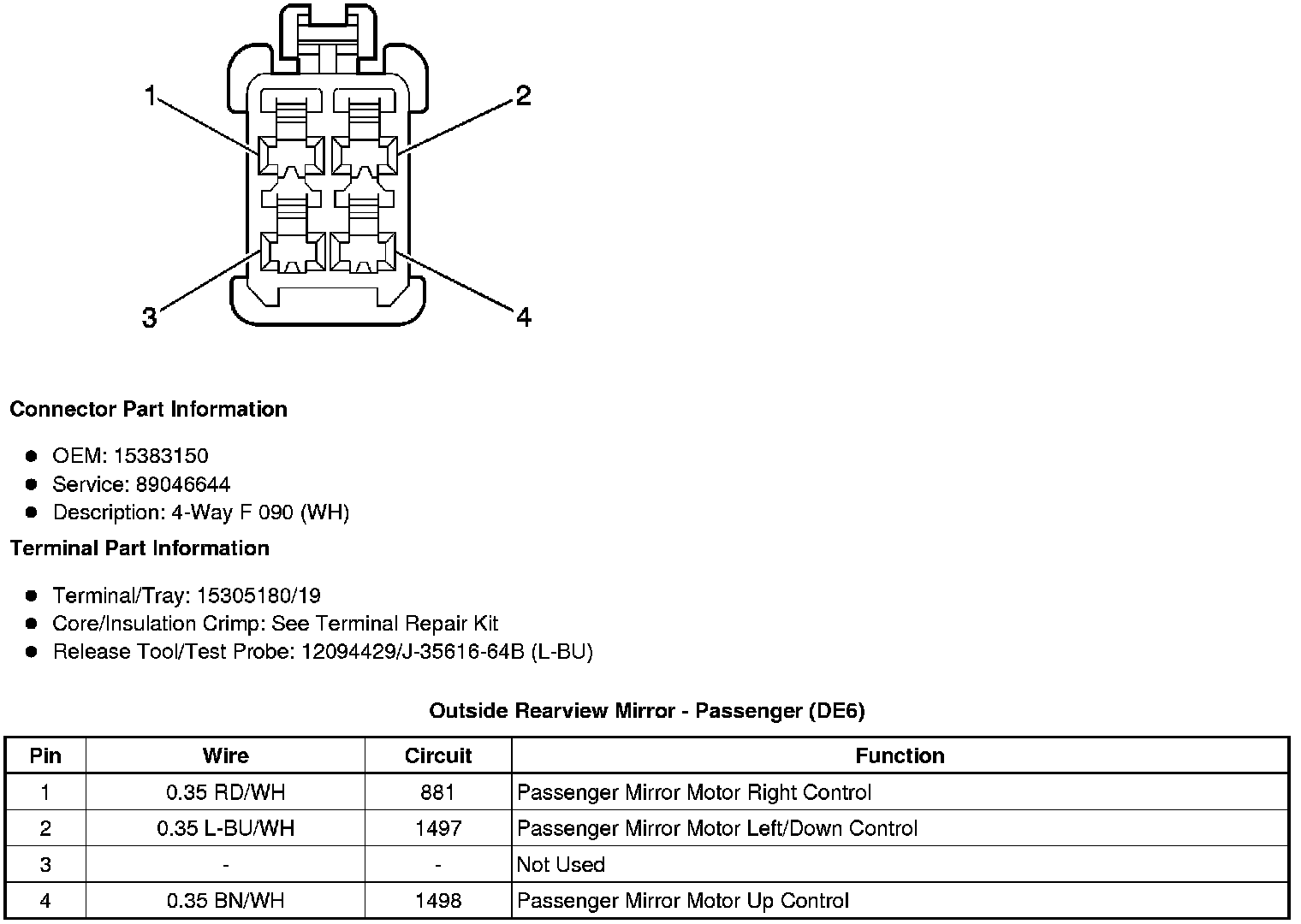

Outside Rearview Mirror - Passenger (DE6)
