Power Trunk / Liftgate Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

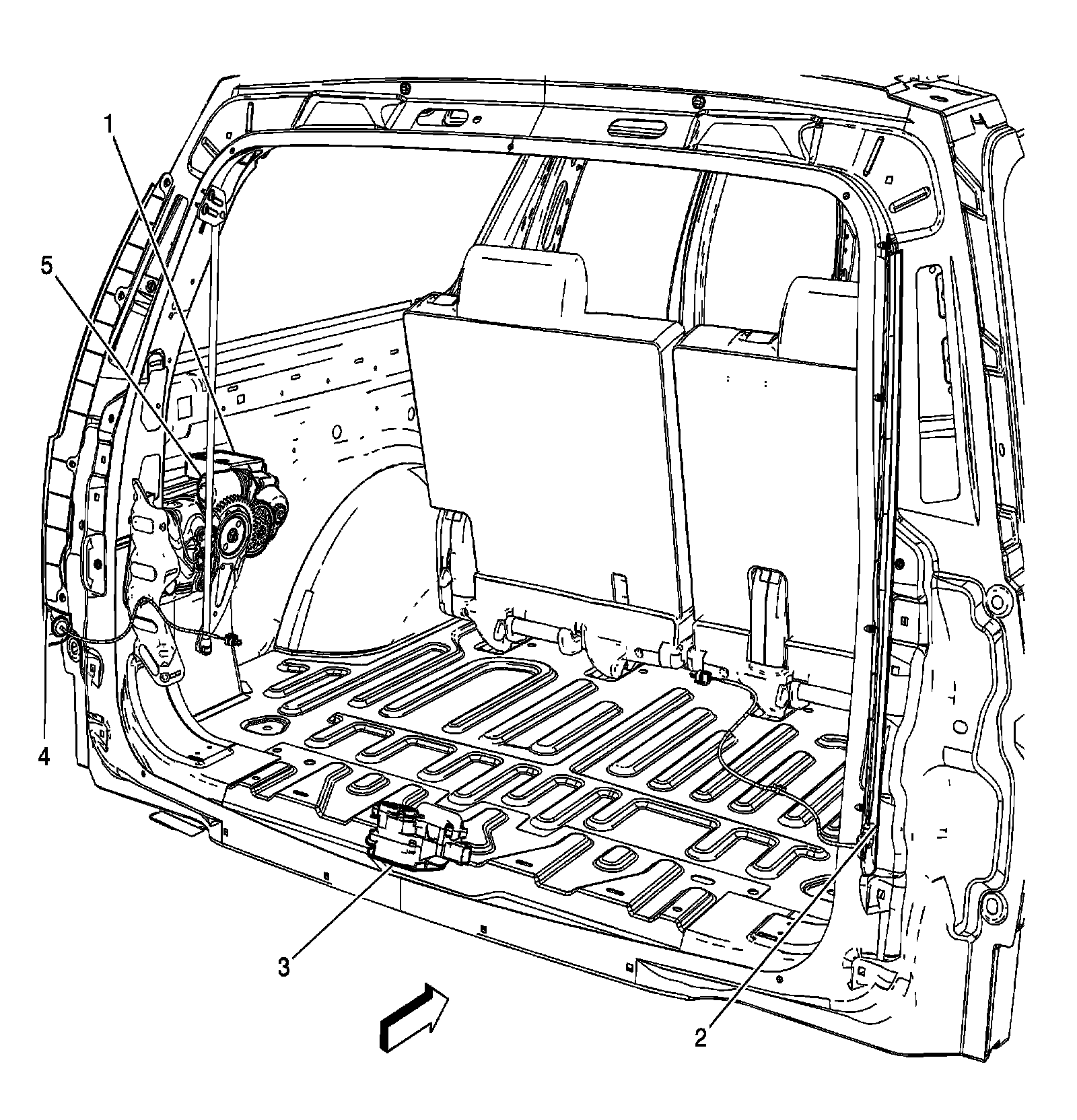

Power Liftgate Components (E61)




1 - Power Liftgate Module
2 - Liftgate Object Sensor - Right
3 - Liftgate Latch Assembly
4 - Liftgate Object Sensor - Left
5 - Liftgate Motor Assembly
