Home >> GMC >> 2007 >> Yukon 2WD V8-5.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

Accelerator Pedal Position Sensor: Diagrams

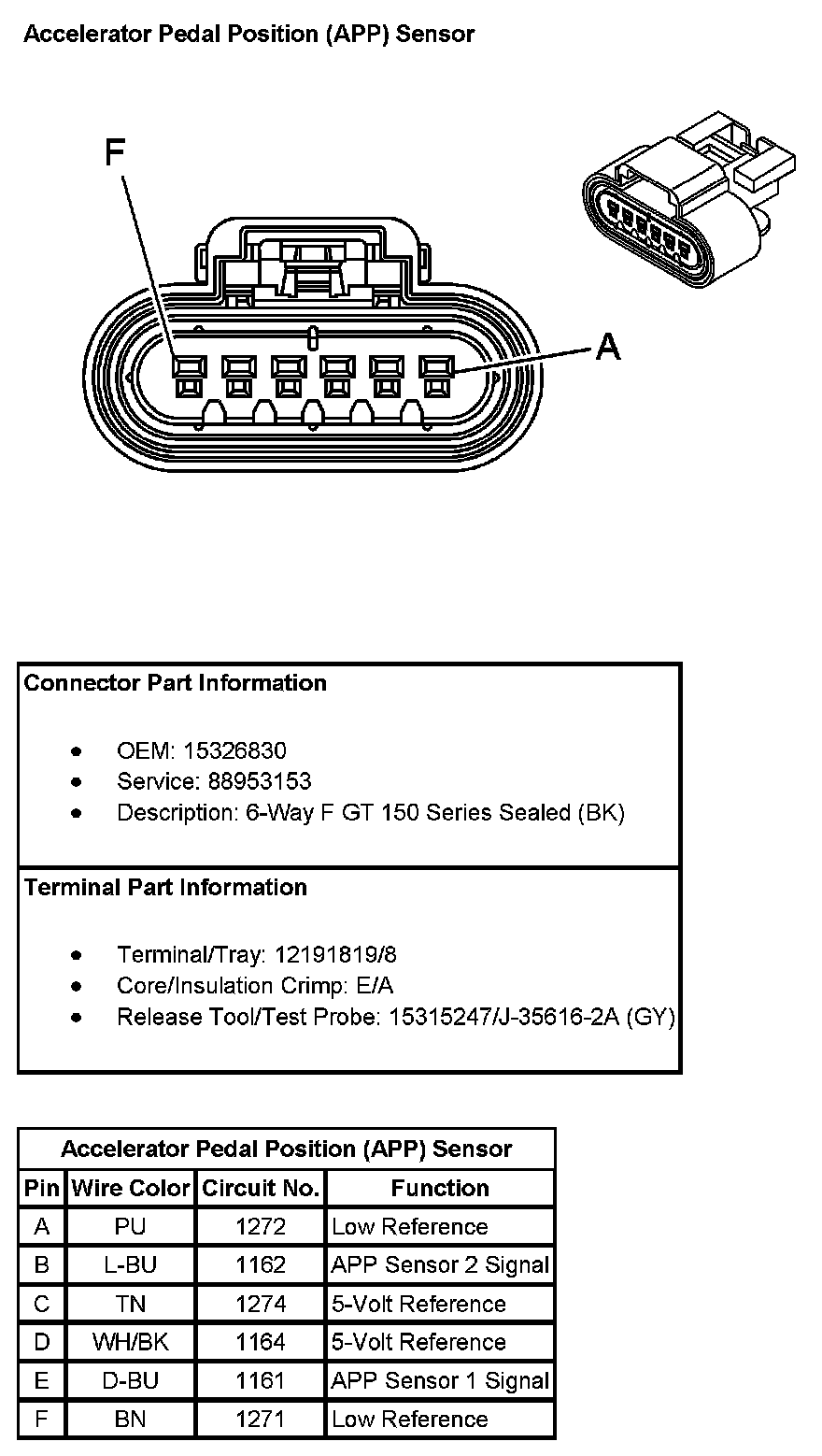

Accelerator Pedal Position (APP) Sensor:
