Home >> GMC >> 2007 >> Yukon 2WD V8-5.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Engine Compartment Views

Engine Compartment Views

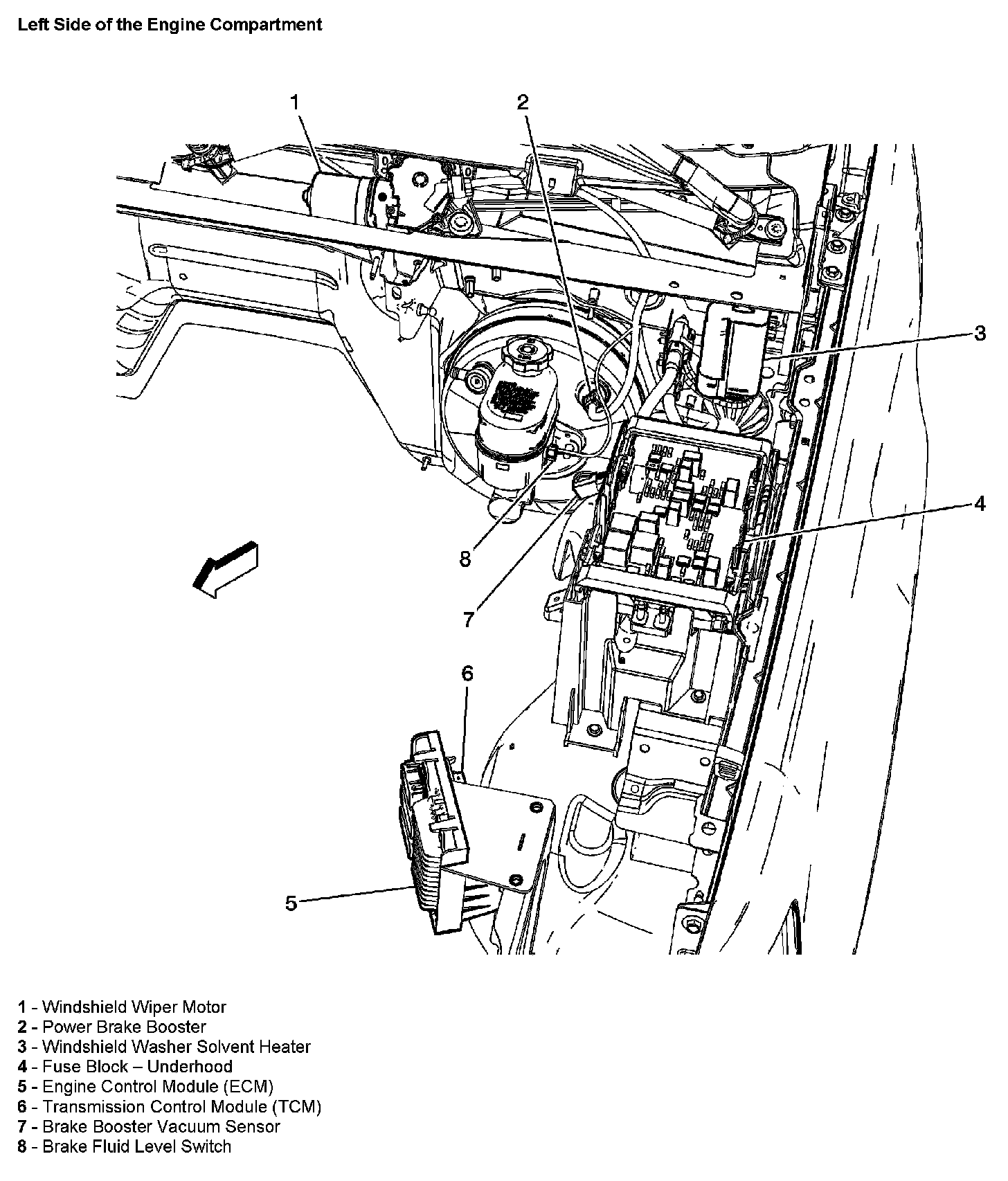

Left Side Of The Engine Compartment:
