Home >> GMC >> 2007 >> Yukon 2WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications >> Electrical Specifications

Electrical Specifications

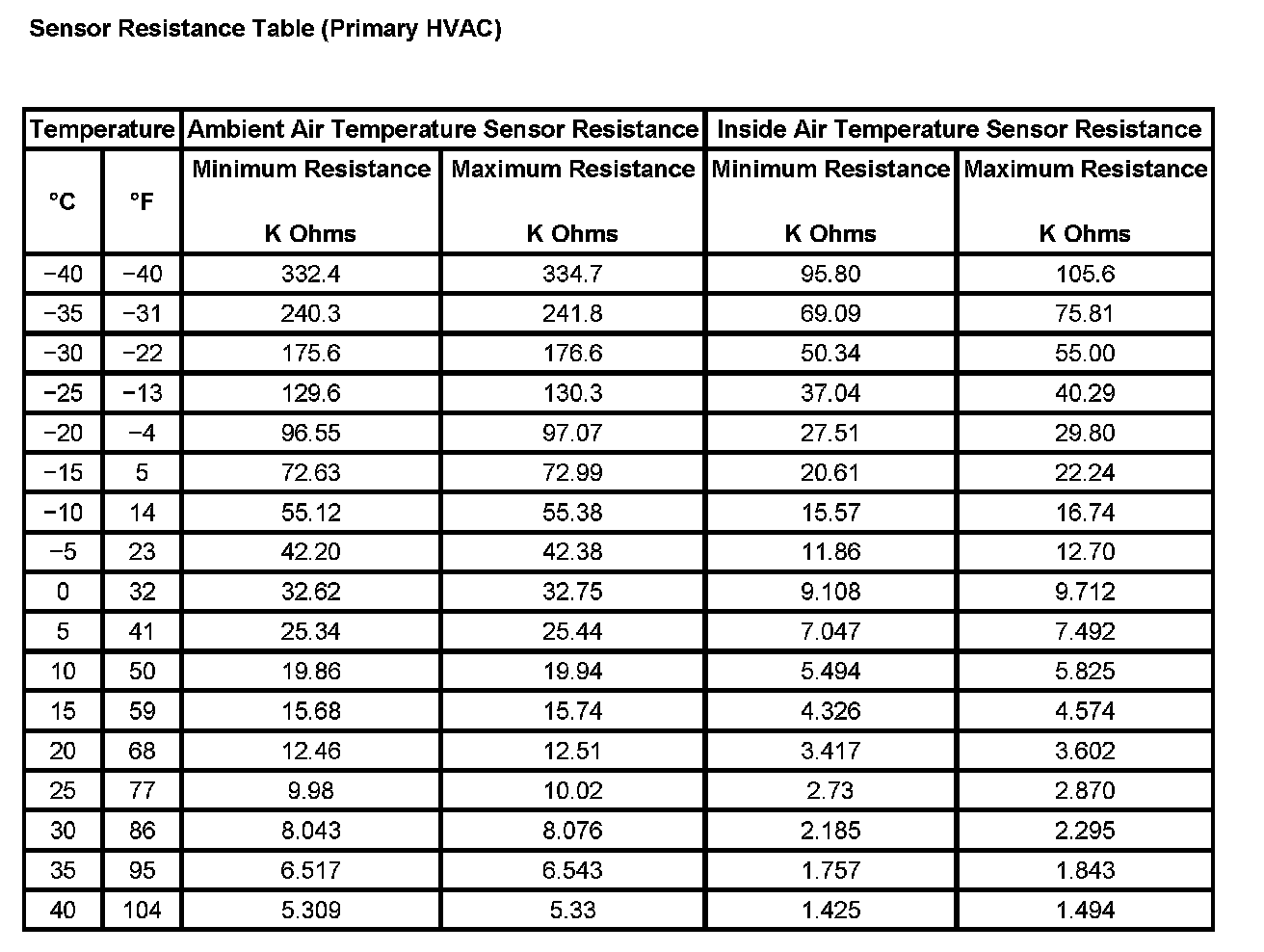

Sensor Resistance Table (Primary HVAC):
