Removal

Exhaust Gas Temperature (EGT) Sensor

Exhaust System

Removal
1. Turn off the ignition.
2. Disconnect the harness connector to the exhaust gas temperature (EGT) sensor of the DPF. Mark with a pen etc. to avoid incorrect connection.

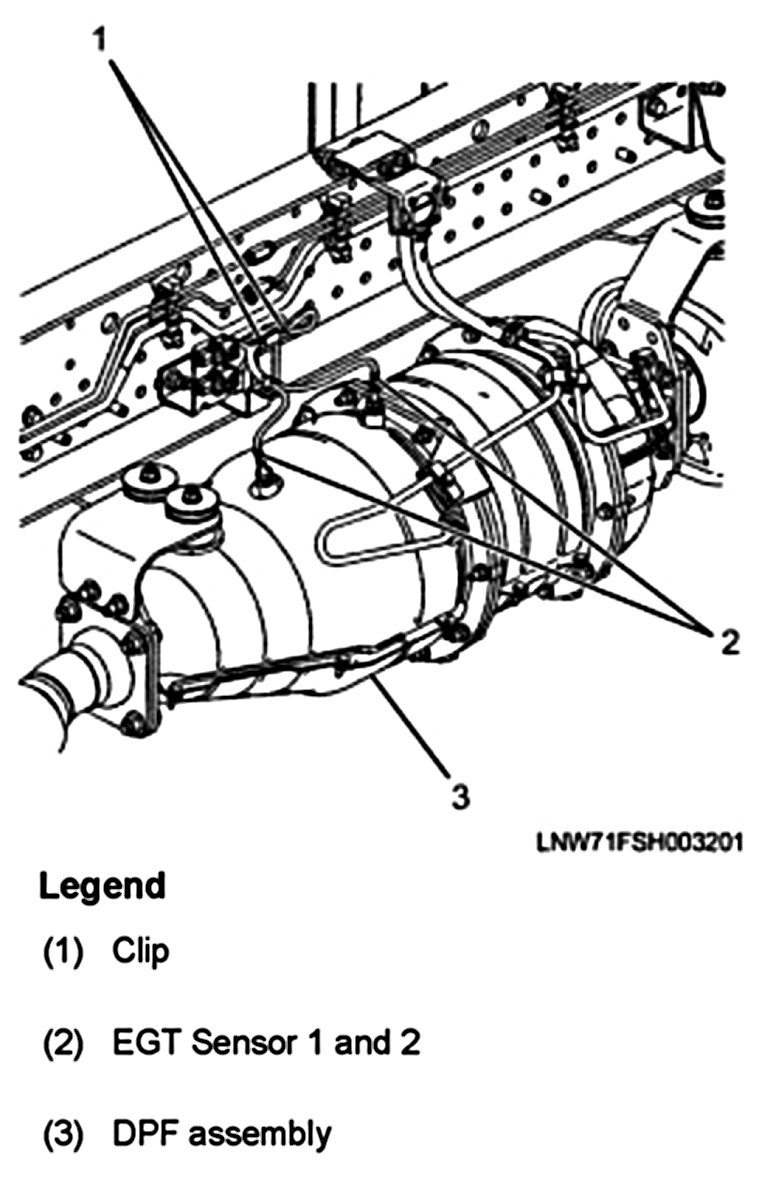

3. Remove the EGT sensor (1) of the DPF.
4. Remove the EGT sensor (2) of the DPF.
