Home >> GMC >> 2007 >> Sierra Denali AWD V8-6.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Fuse Block - I/P

Fuse Block - I/P

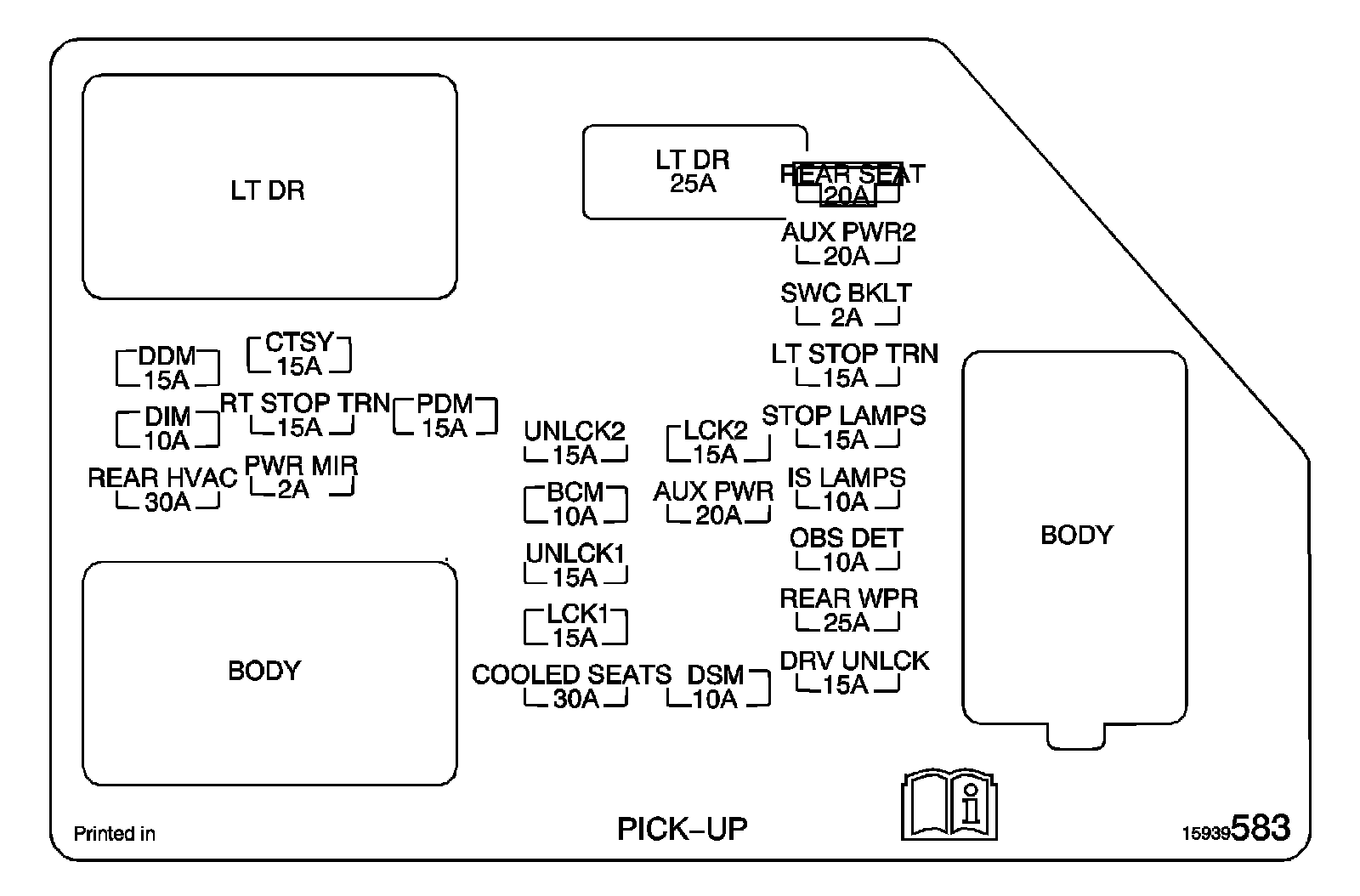

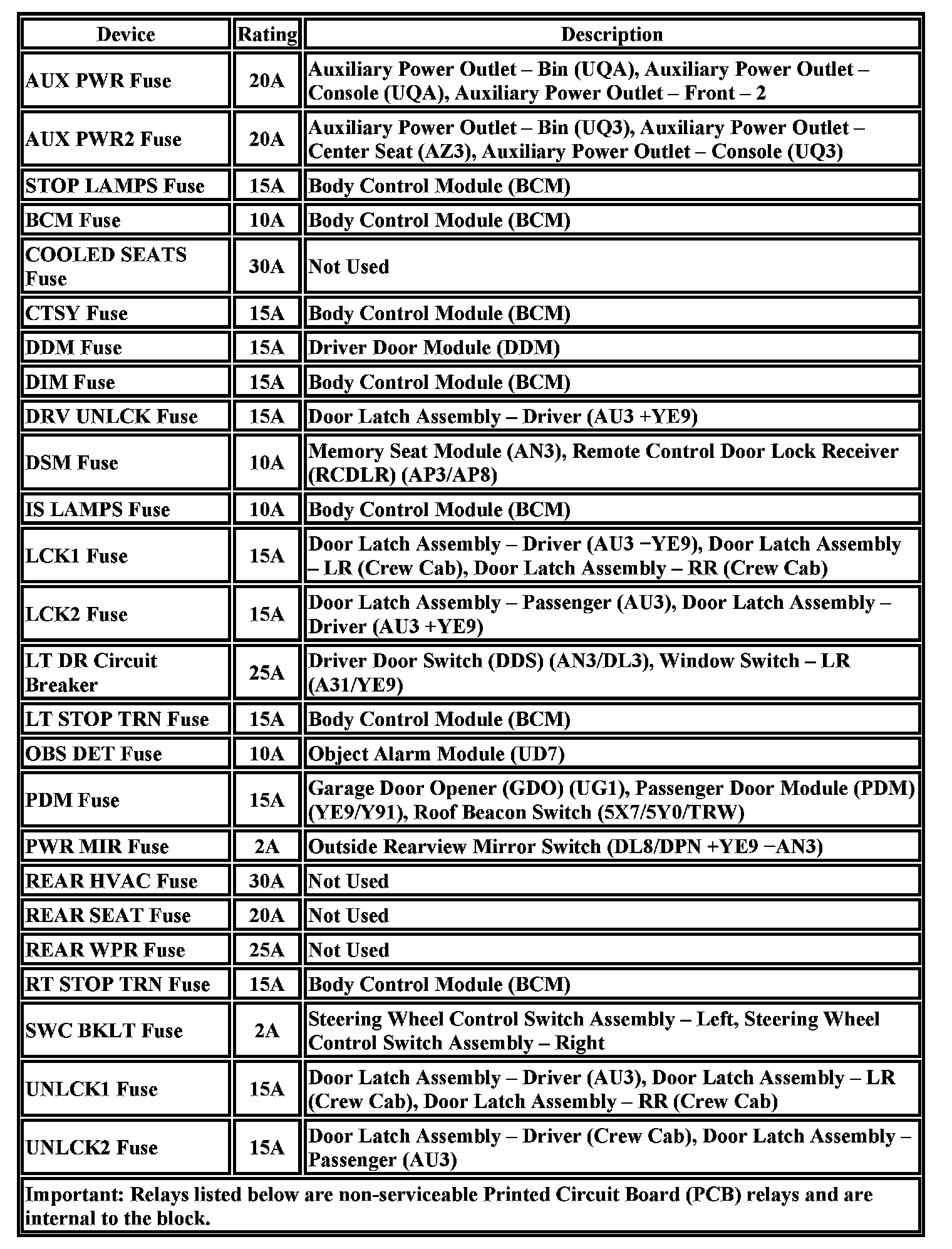

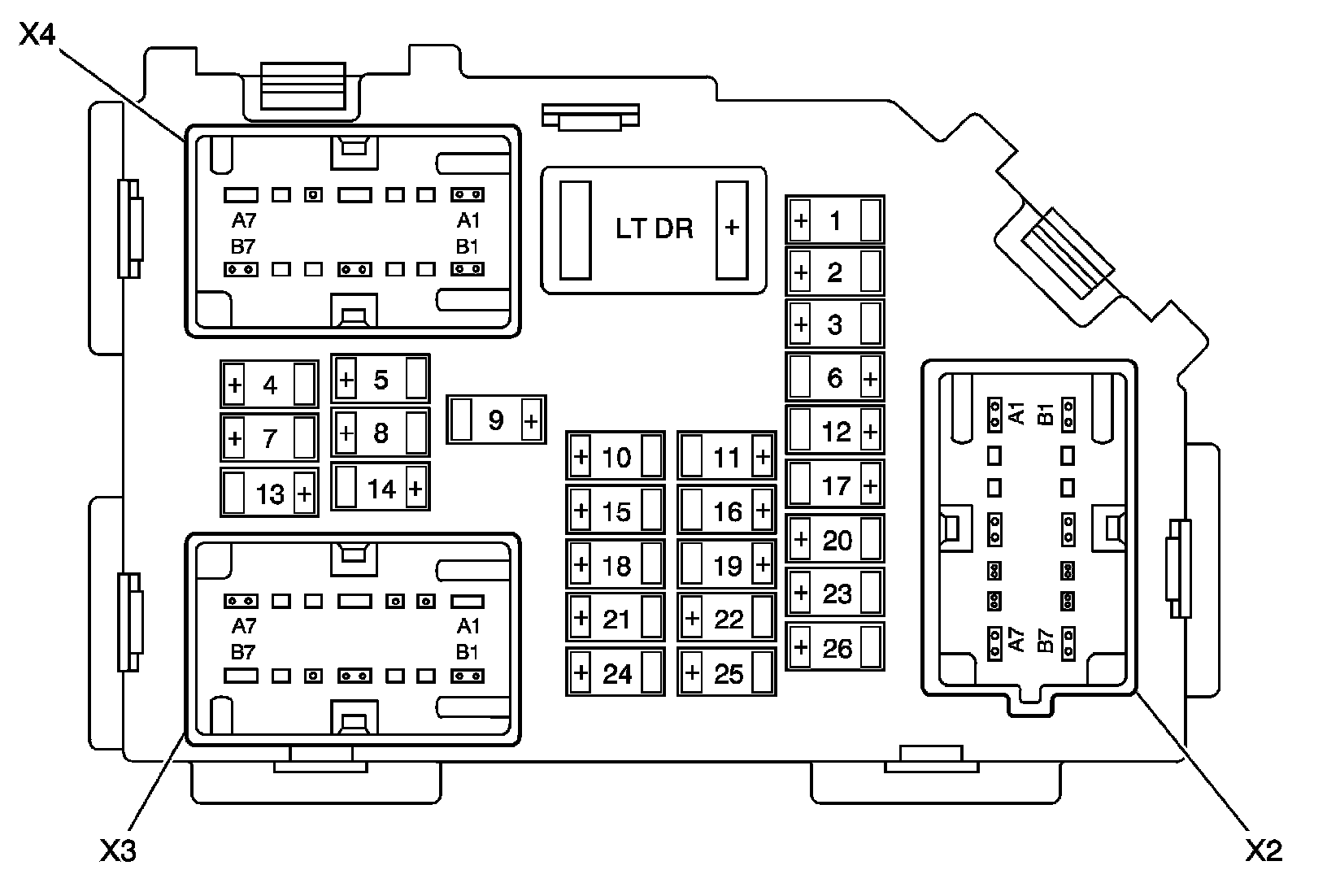

Fuse Block - Instrument Panel
