Power Window Switch



Window Systems Connector End Views

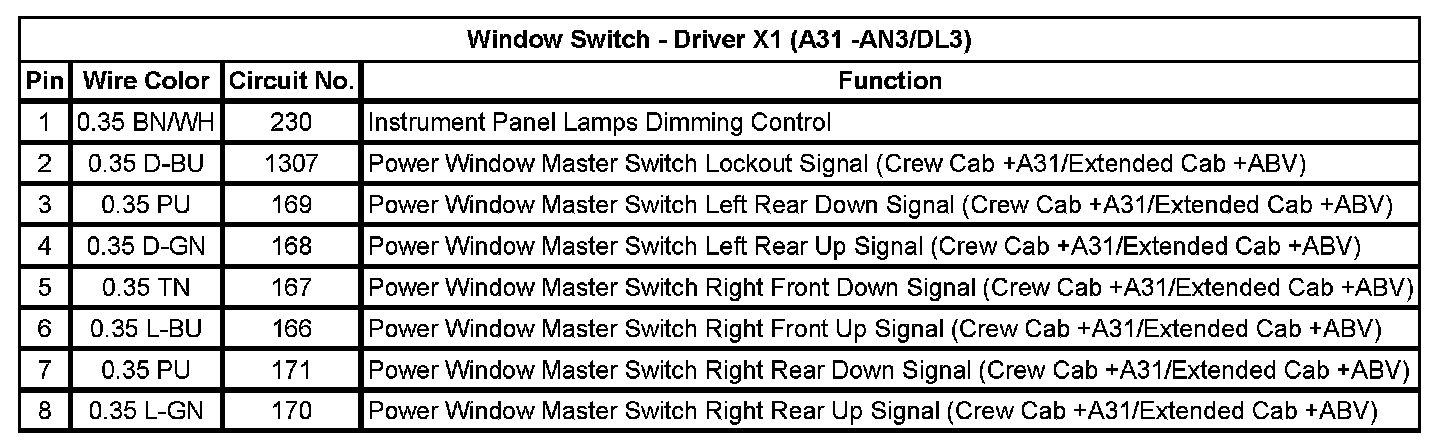

Window Switch - Driver X1 (A31 -AN3/DL3)














Window Switch - Driver X2 (A31 -AN3/DL3)














Window Switch - Left Rear (Crew Cab +A31/Extended Cab +ABV)














Window Switch - Passenger (A31 -AN3/DL3)














Window Switch - Right Rear (Crew Cab +A31/Extended Cab +ABV)














Sliding Rear Window - Switch (A48)
