Home >> GMC >> 2007 >> Sierra 1500 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brakes and Traction Control >> Trailer Brake Control Module

Trailer Brake Control Module

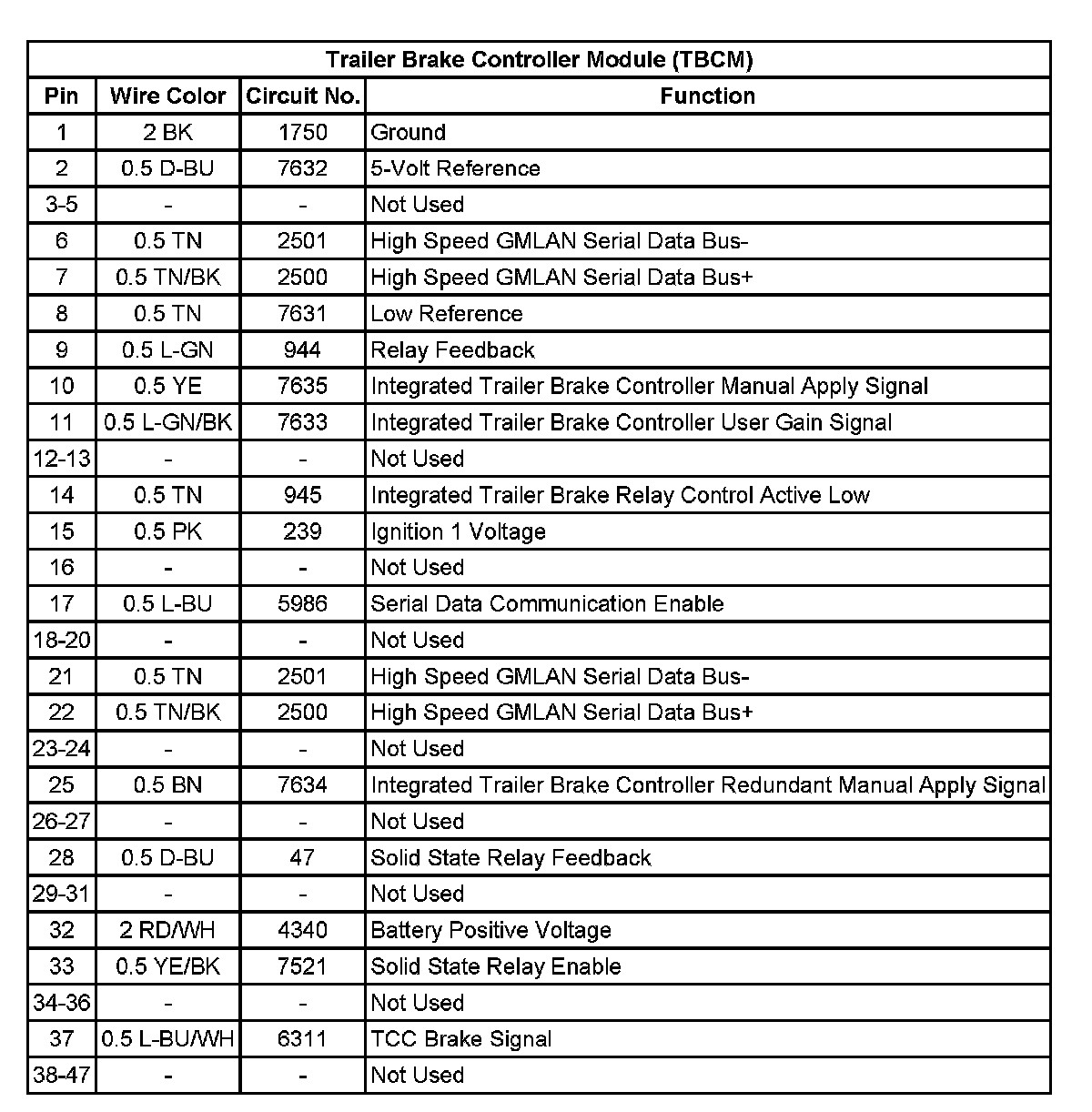

Trailer Brake Controller Module (TBCM)

Electronic Suspension Control (ESC) Module:







Trailer Brake Controller Module (TBCM):
