Home >> GMC >> 2007 >> Sierra 1500 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brakes and Traction Control >> Electronic Brake Control Module >> Electronic Brake Control Module (JF3/JF7)

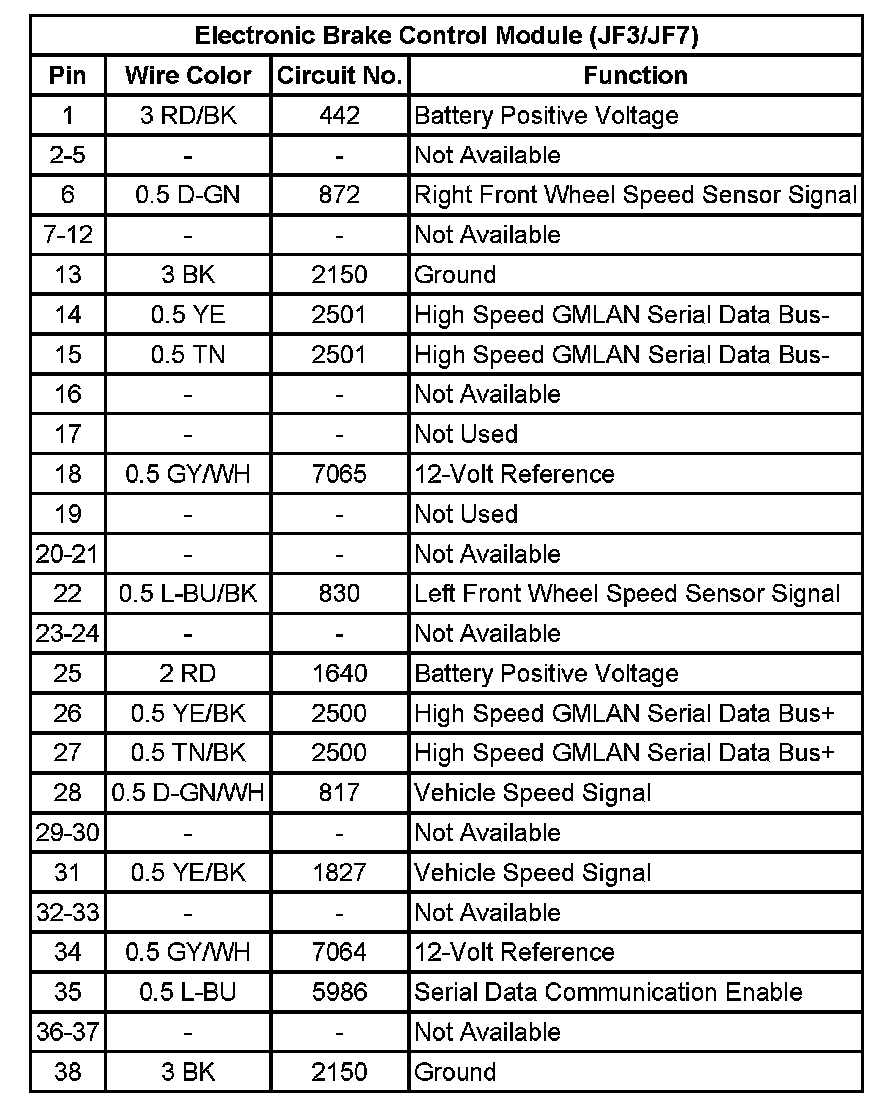

Electronic Brake Control Module (JF3/JF7)



Electronic Brake Control Module (JF3/JF7)







Electronic Brake Control Module (JF3/JF7):
