Connector Views

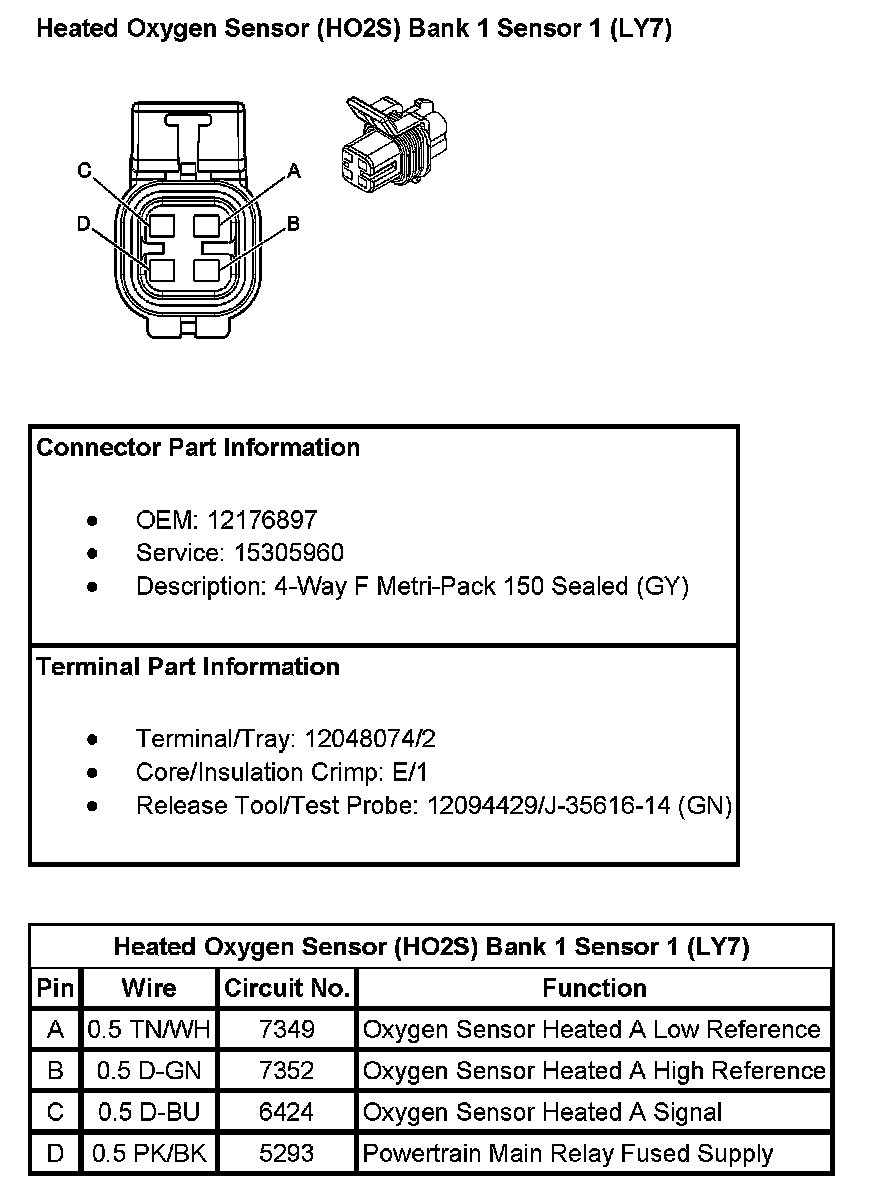

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (With RPO Code LY7):

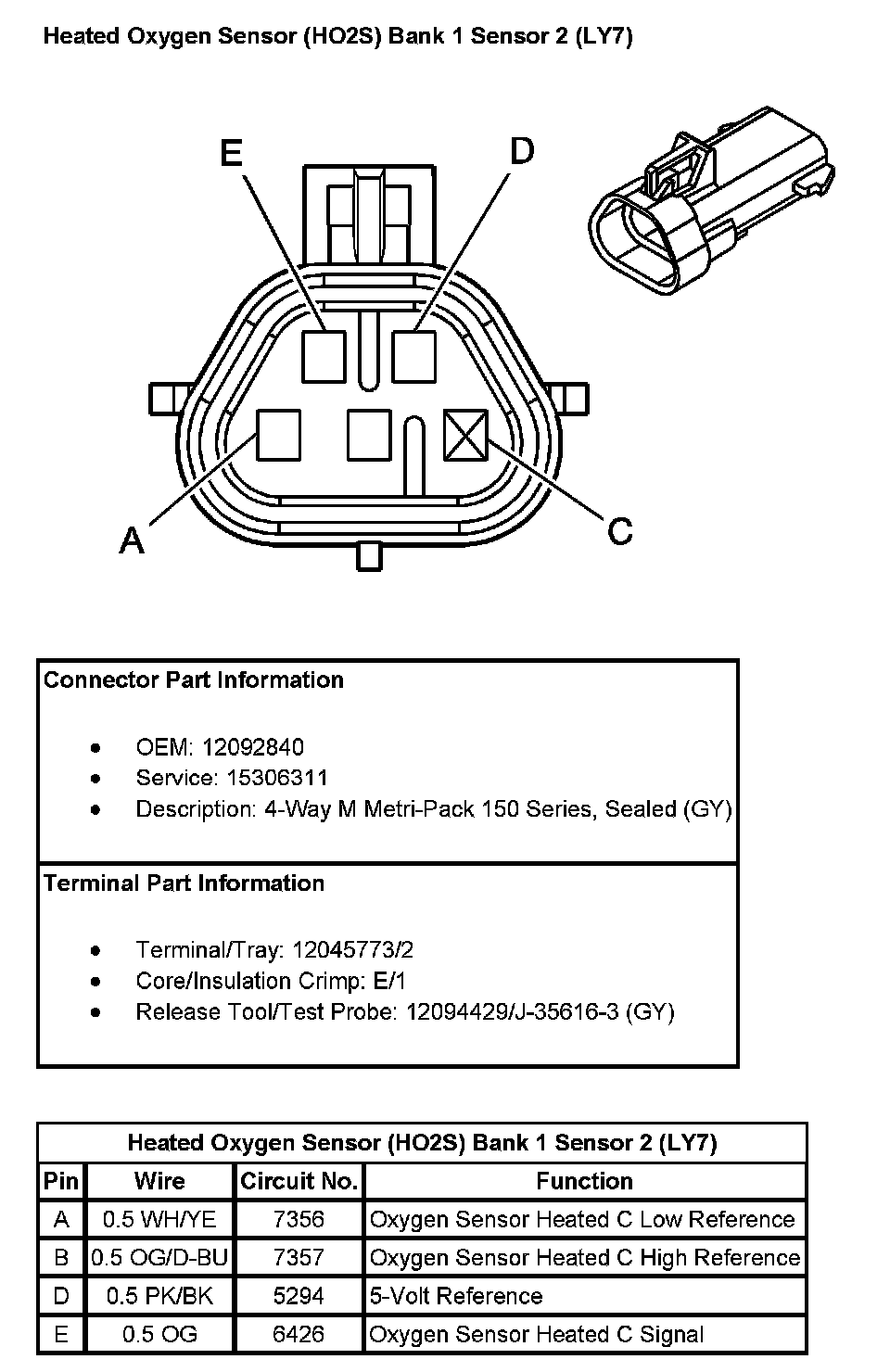

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (With RPO Code LY7):

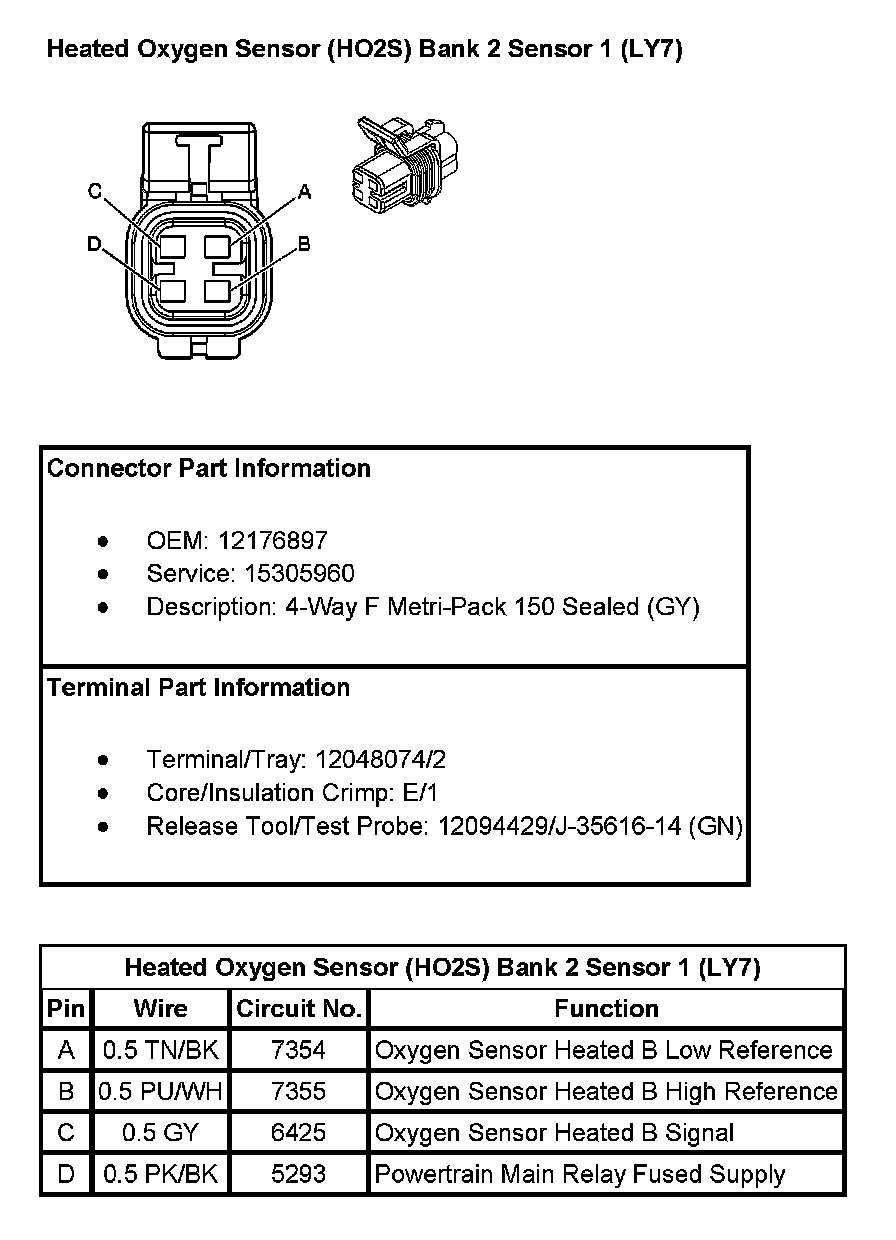

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (With RPO Code LY7):

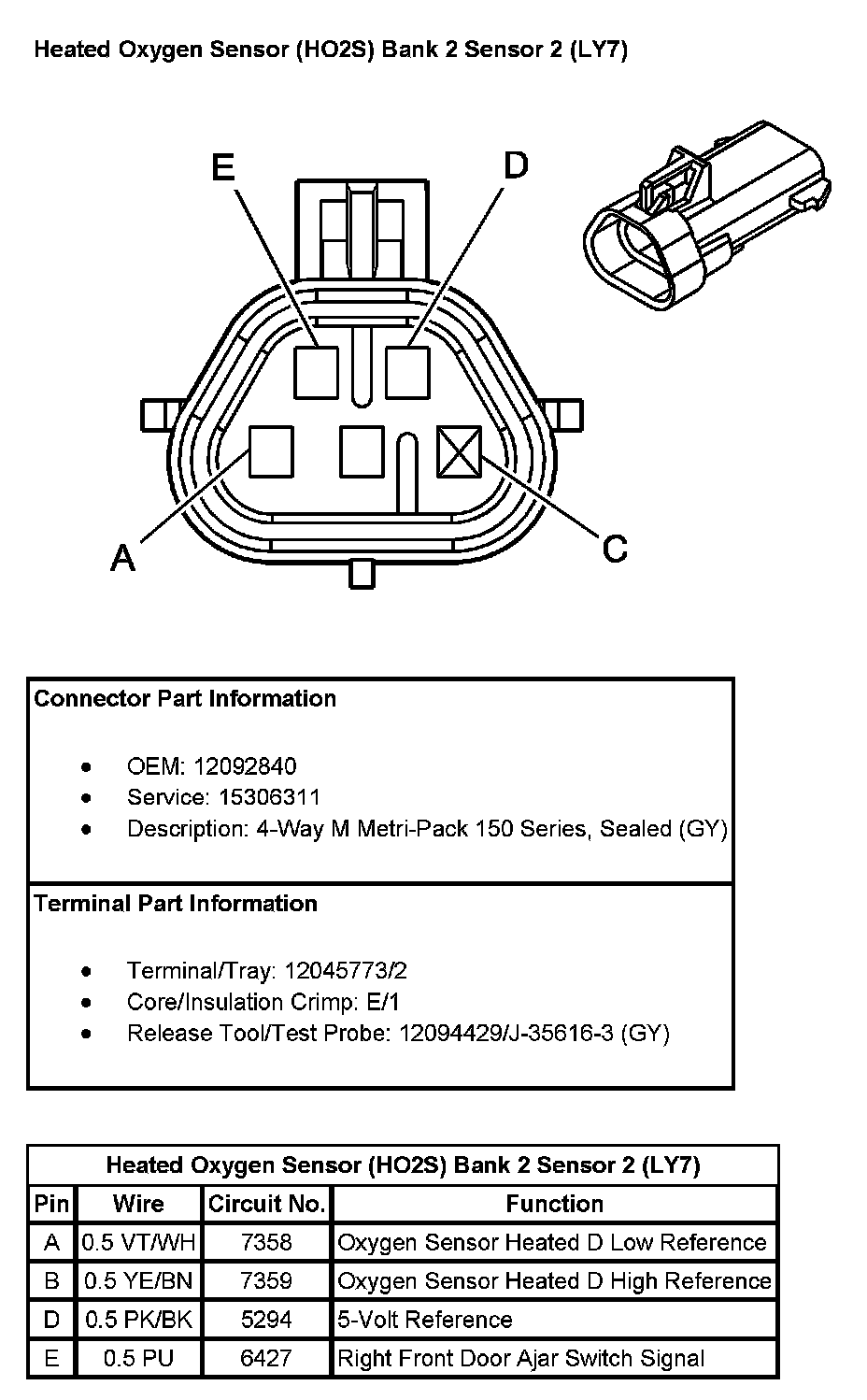

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (With RPO Code LY7):
