Underhood Fuse Block
Underhood Fuse Block
Fuse Block - Underhood Label:

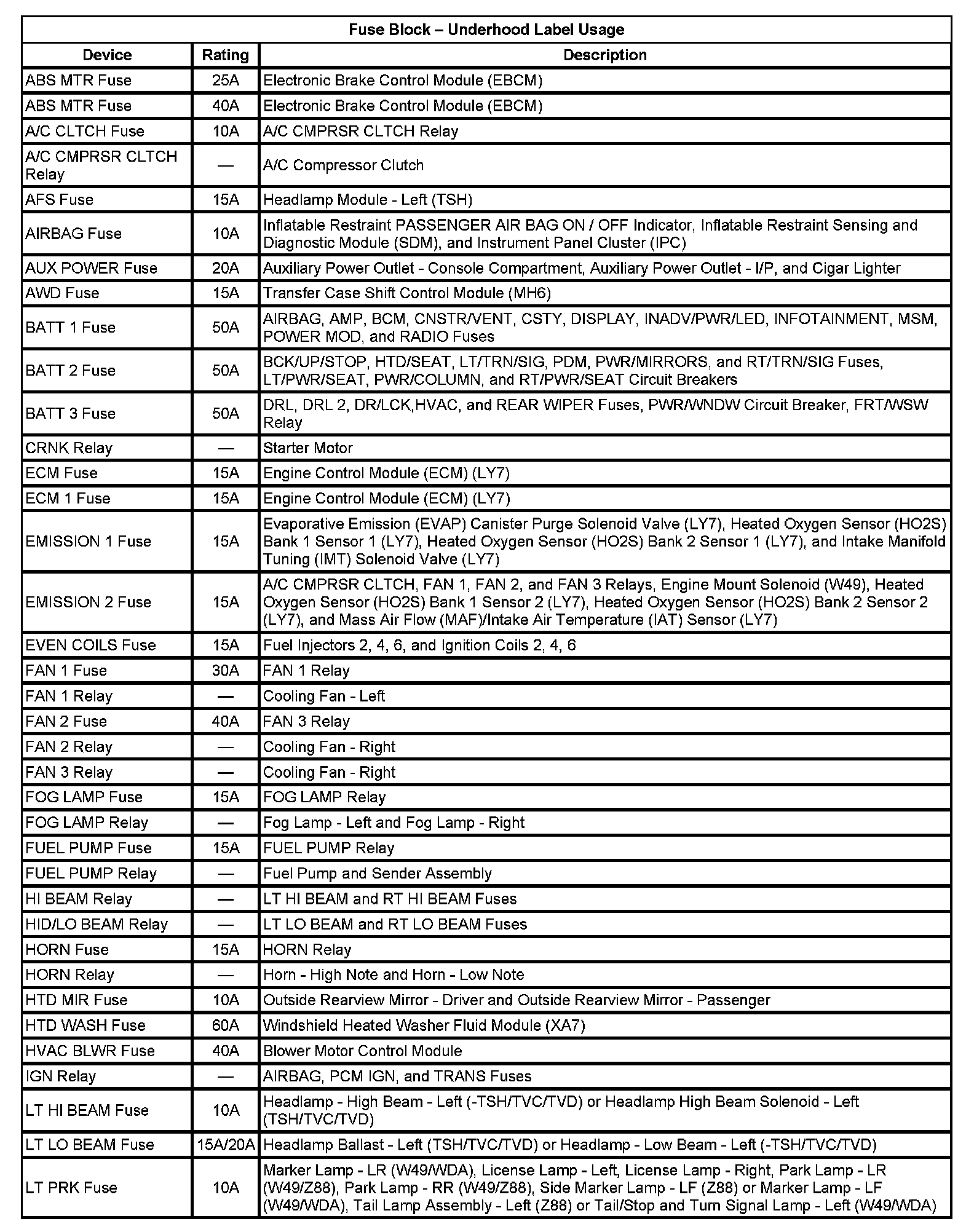

Fuse Block - Underhood Label Usage (Part 1):

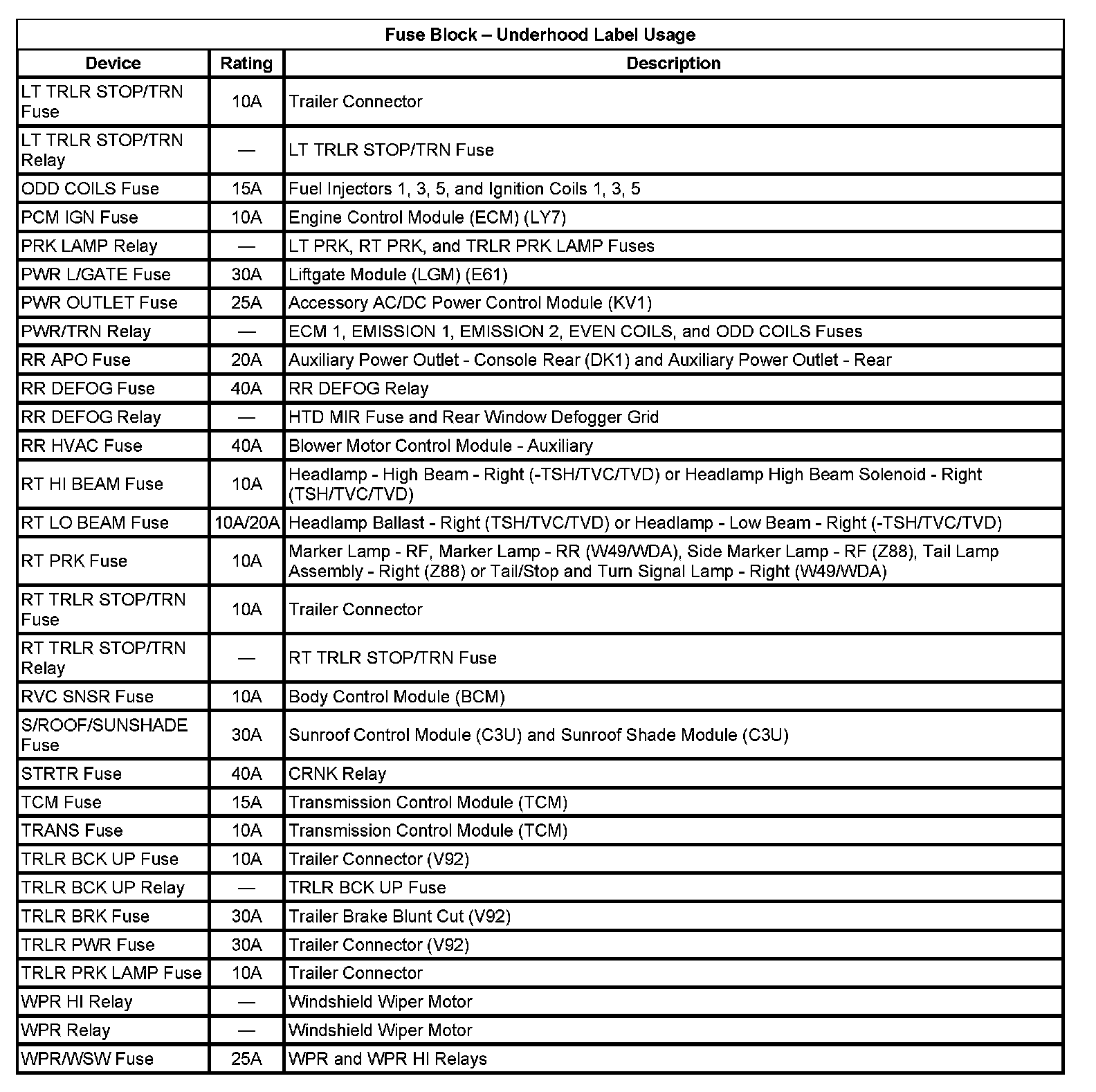

Fuse Block - Underhood Label Usage (Part 2):
