Connector Views

OnStar Inline Fuse (With RPO Code WDA+UE1):

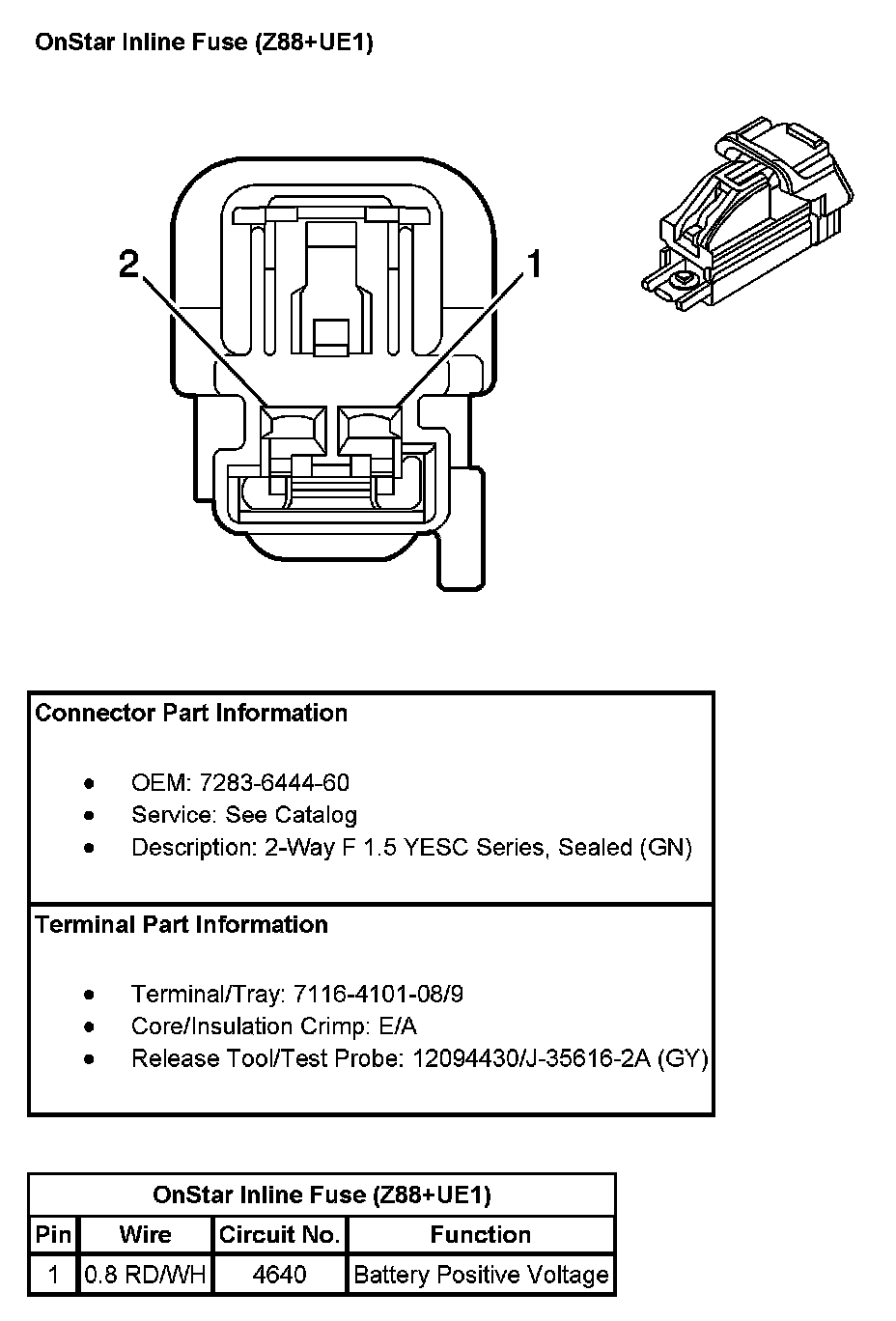

OnStar Inline Fuse (With RPO Code Z88+UE1):
