Trunk / Liftgate Switch

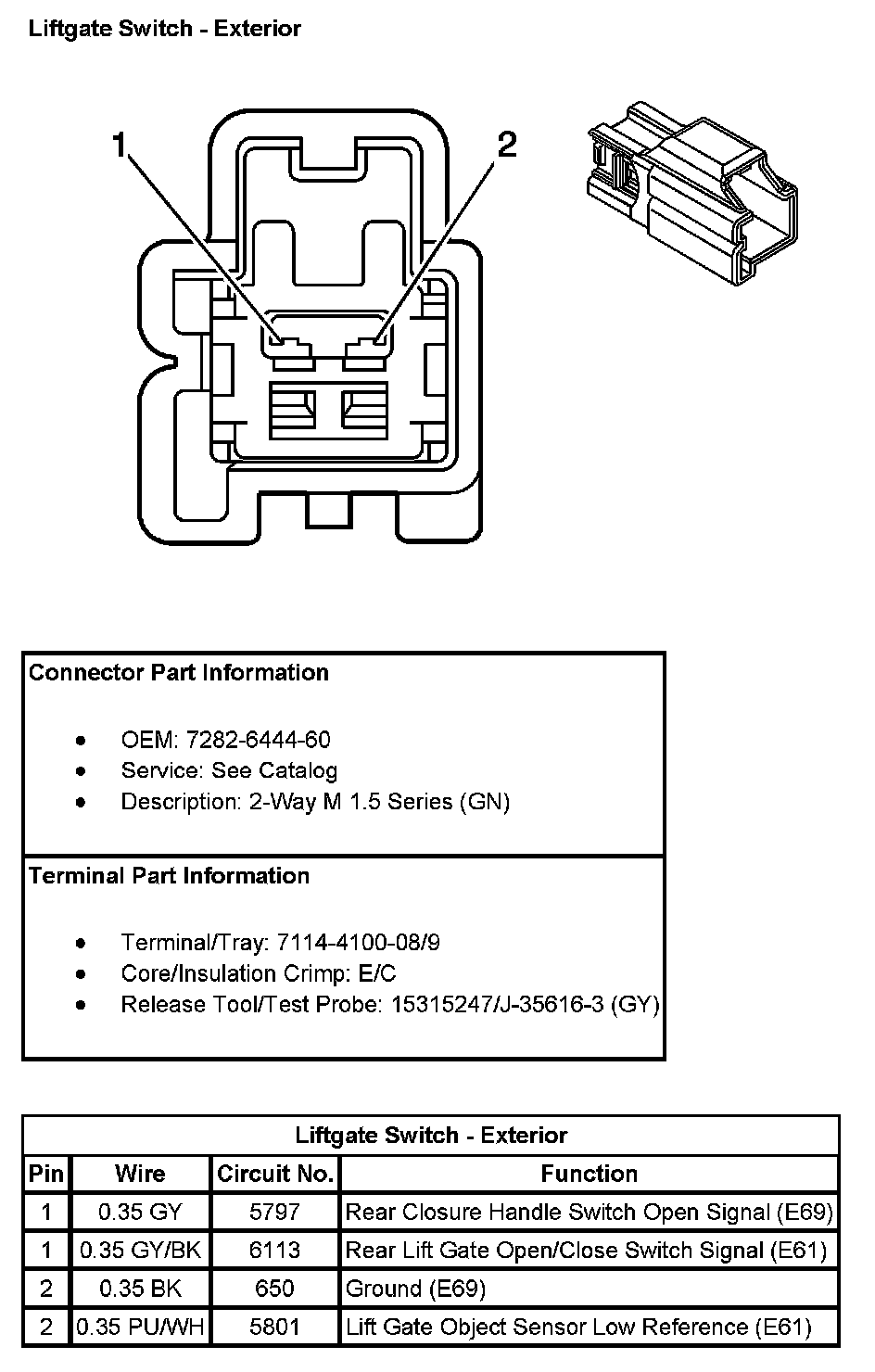

Liftgate Switch - Exterior Pin 1 To 2:

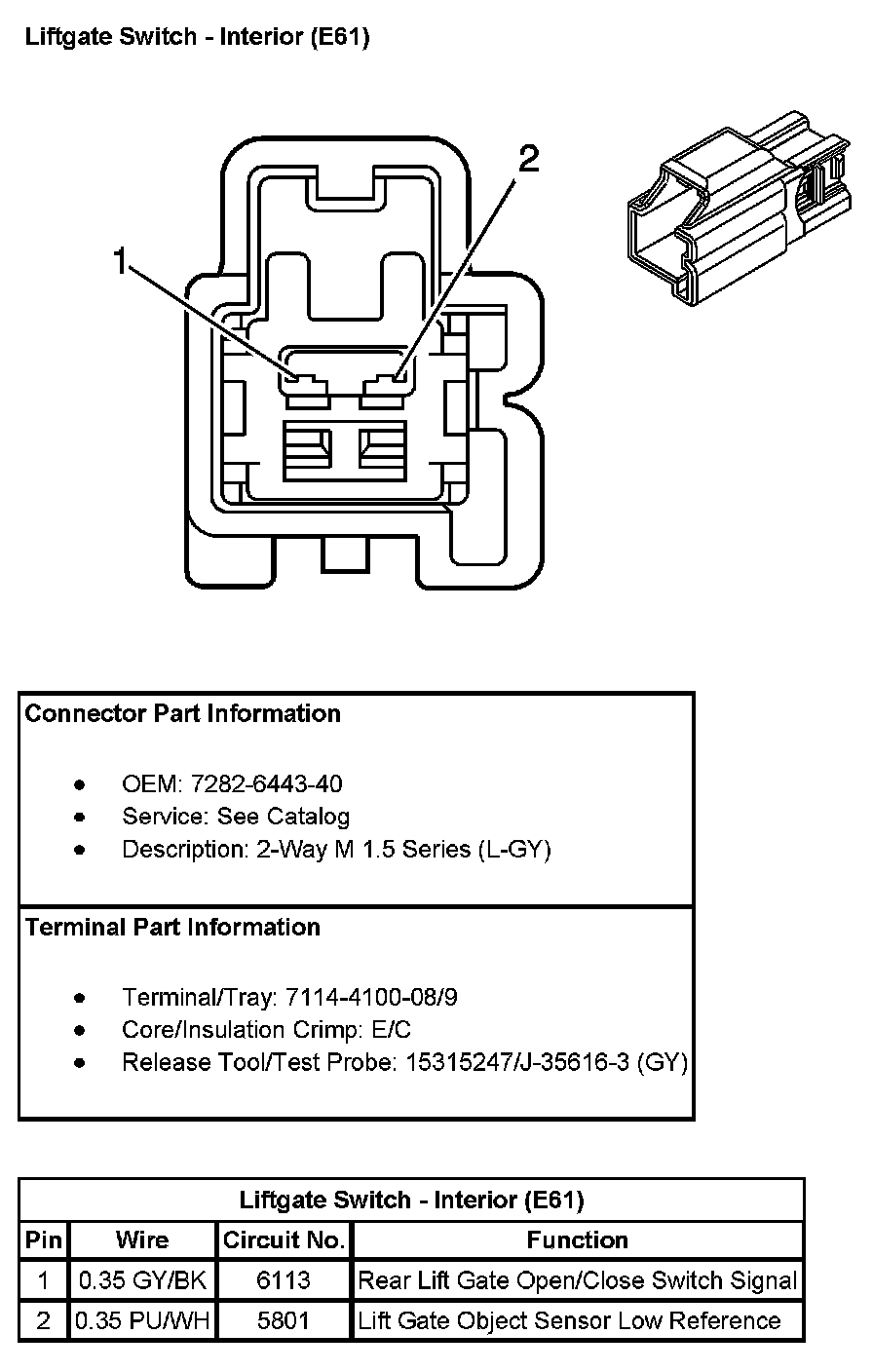

Liftgate Switch - Interior (With RPO Code E61) Pin 1 To 2:
