Power Window Switch
>>

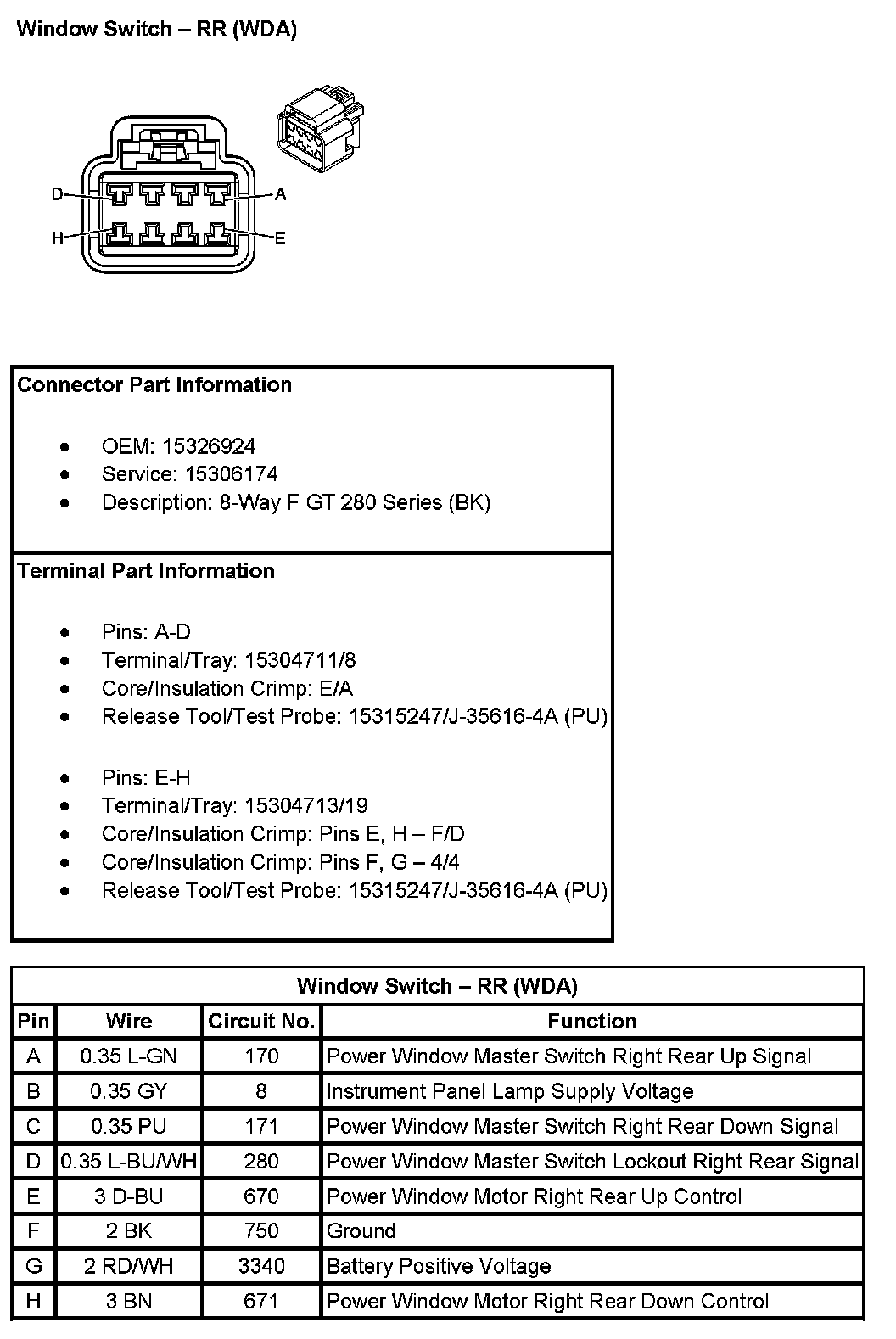

Window Switch - RR (With RPO Code WDA)
Window Switch - RR (With RPO Code WDA)
Window Switch - RR (With RPO Code WDA) Pin A To H:
