Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - LR (With RPO Code Z88)

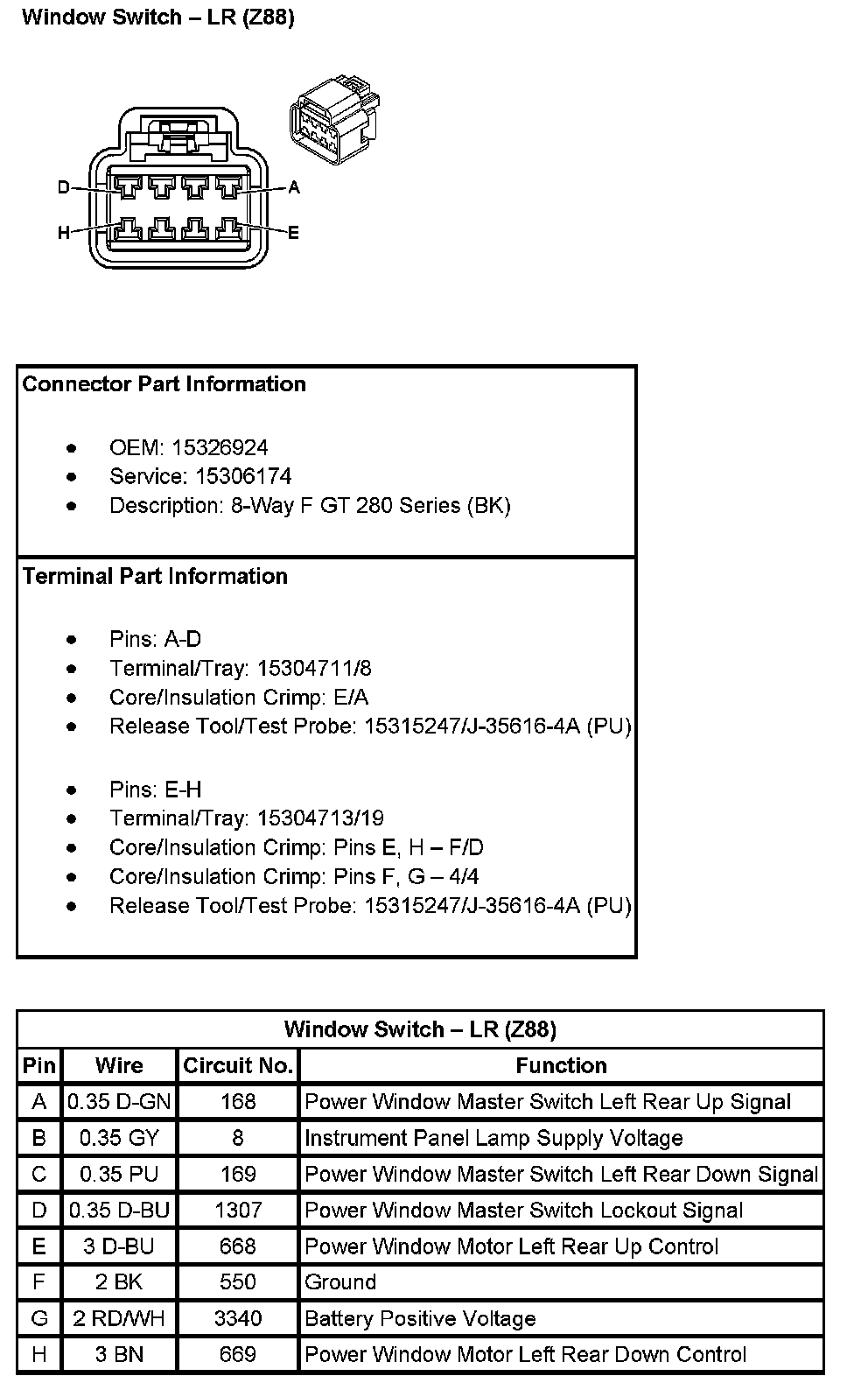

Window Switch - LR (With RPO Code Z88)

Window Switch - LR (With RPO Code Z88) Pin A To H:
