Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - LR (With RPO Code WDA)

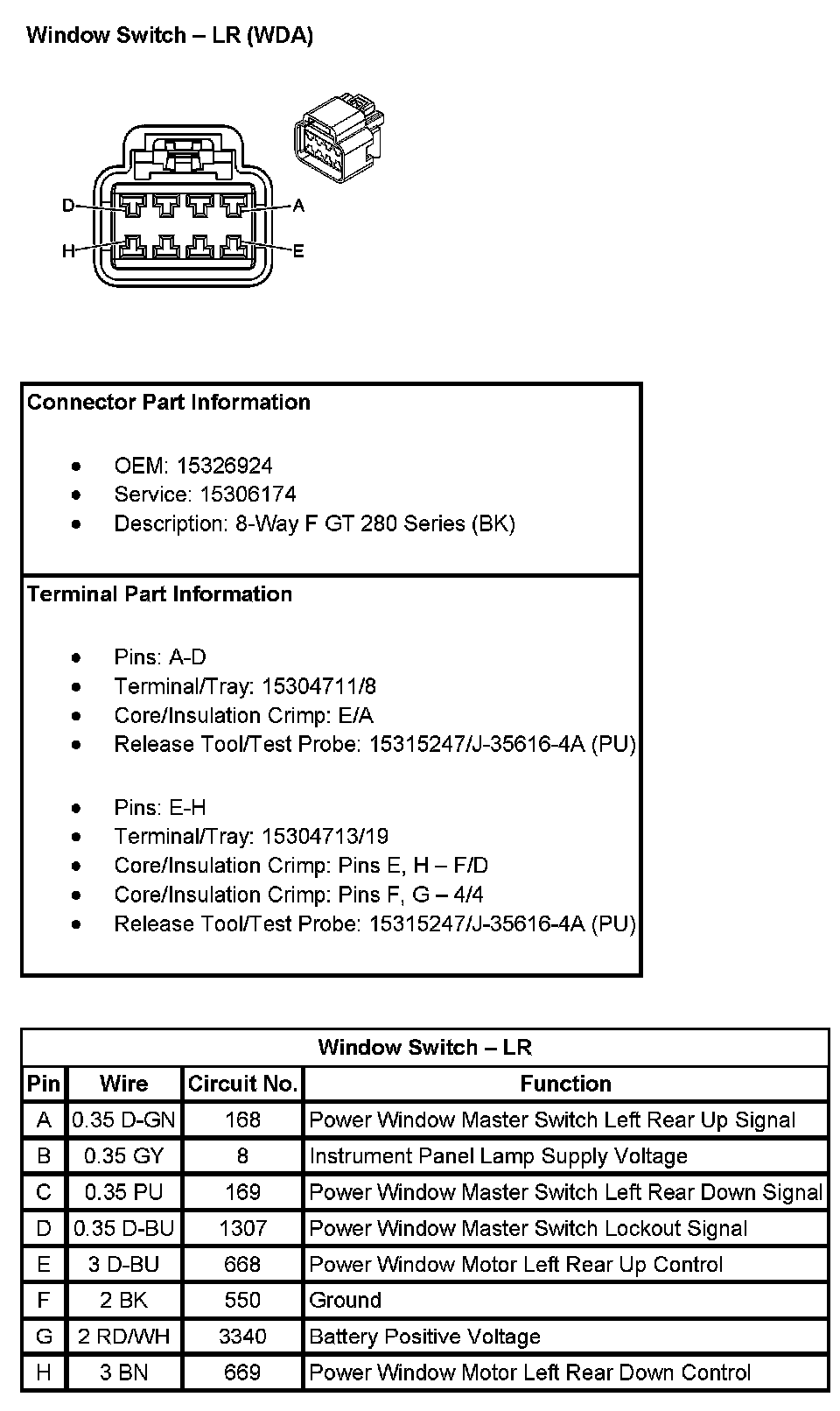

Window Switch - LR (With RPO Code WDA)

Window Switch - LR (with RPO Code WDA) Pin A To H:
