Power Trunk / Liftgate Hazard Sensor

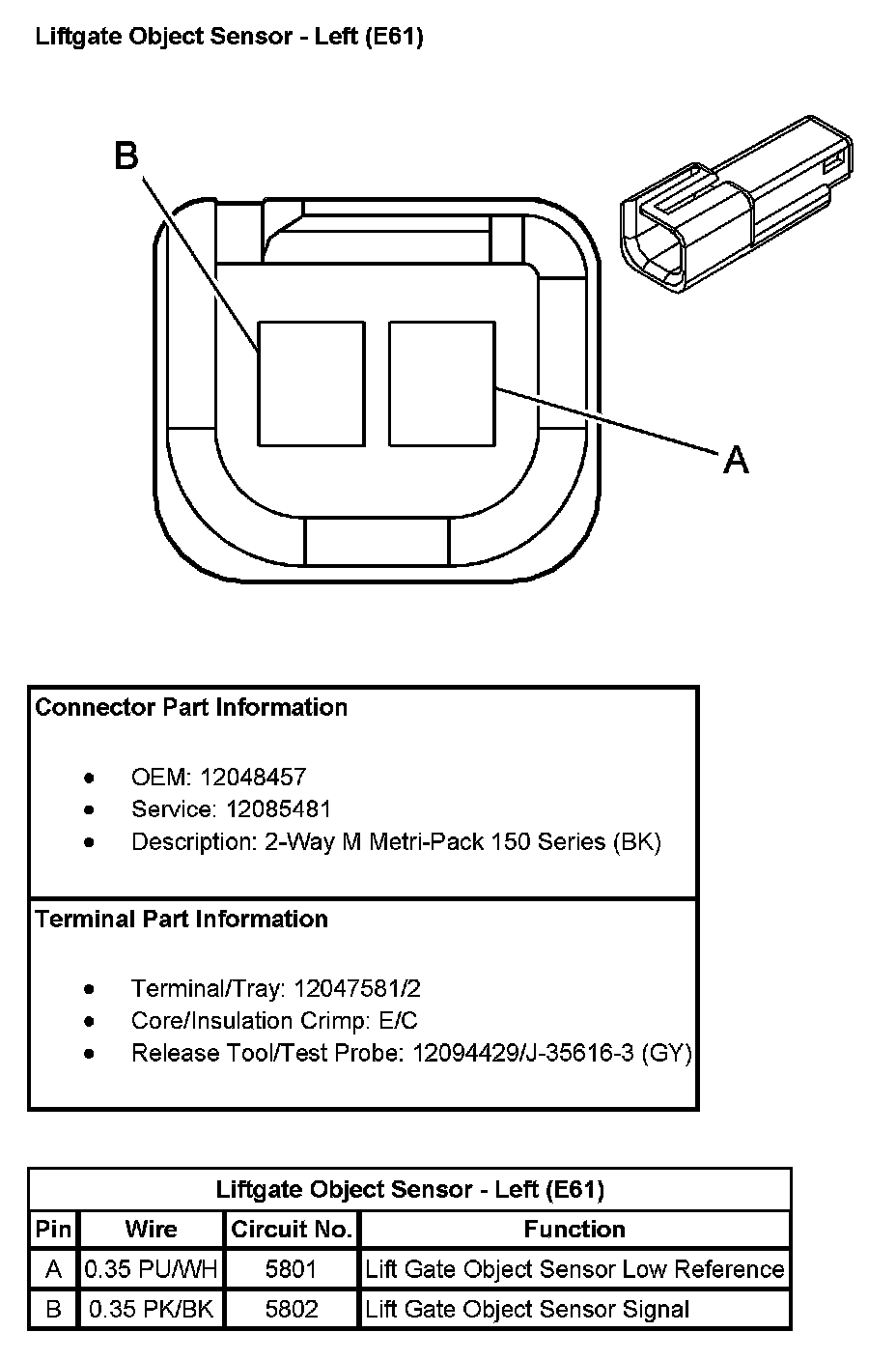

Liftgate Object Sensor - Left (With RPO Code E61) Pin A To B:

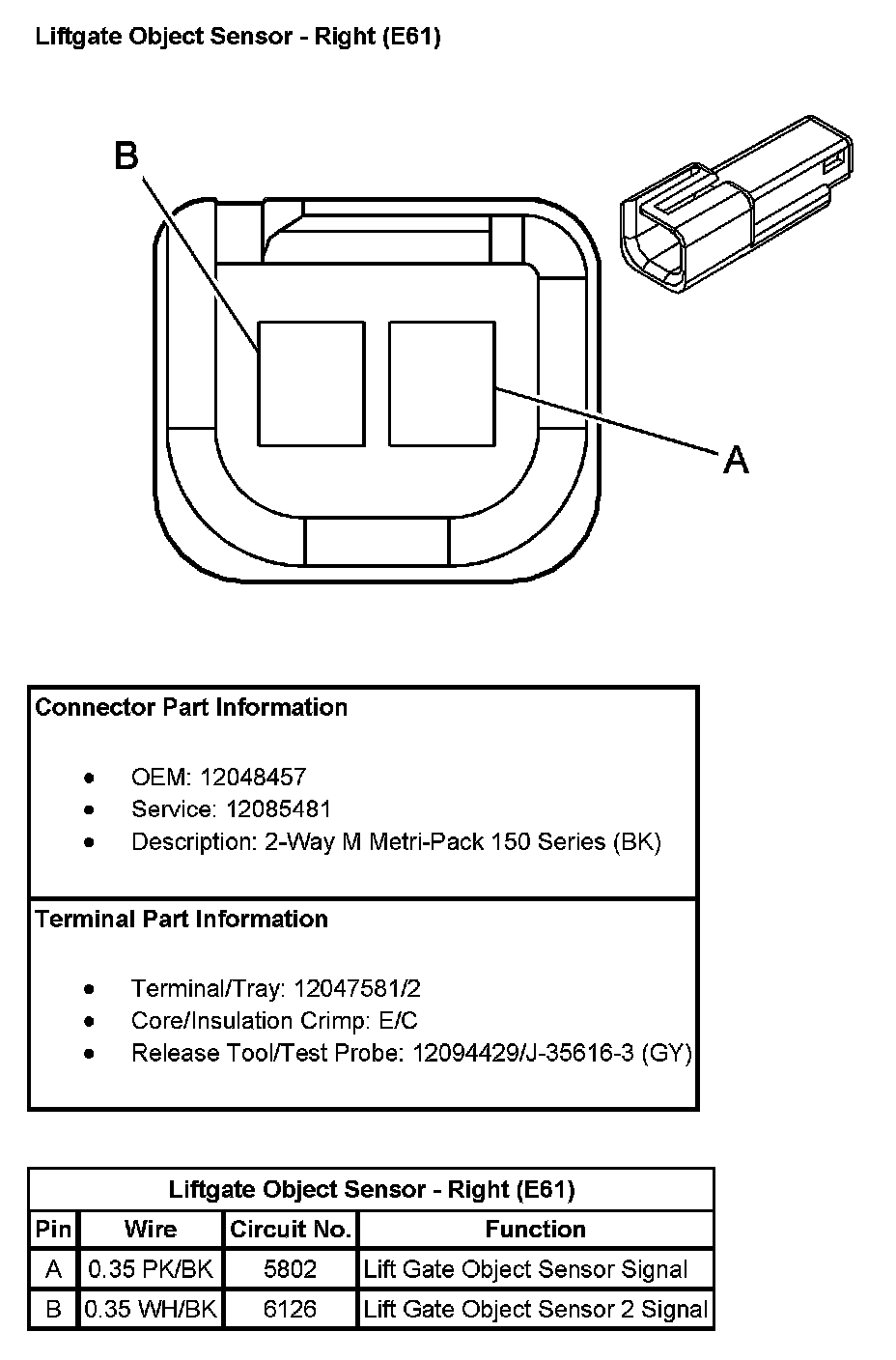

Liftgate Object Sensor - Right (With RPO Code E61) Pin A To B:
