Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hazard Warning Switch

Hazard Warning Switch

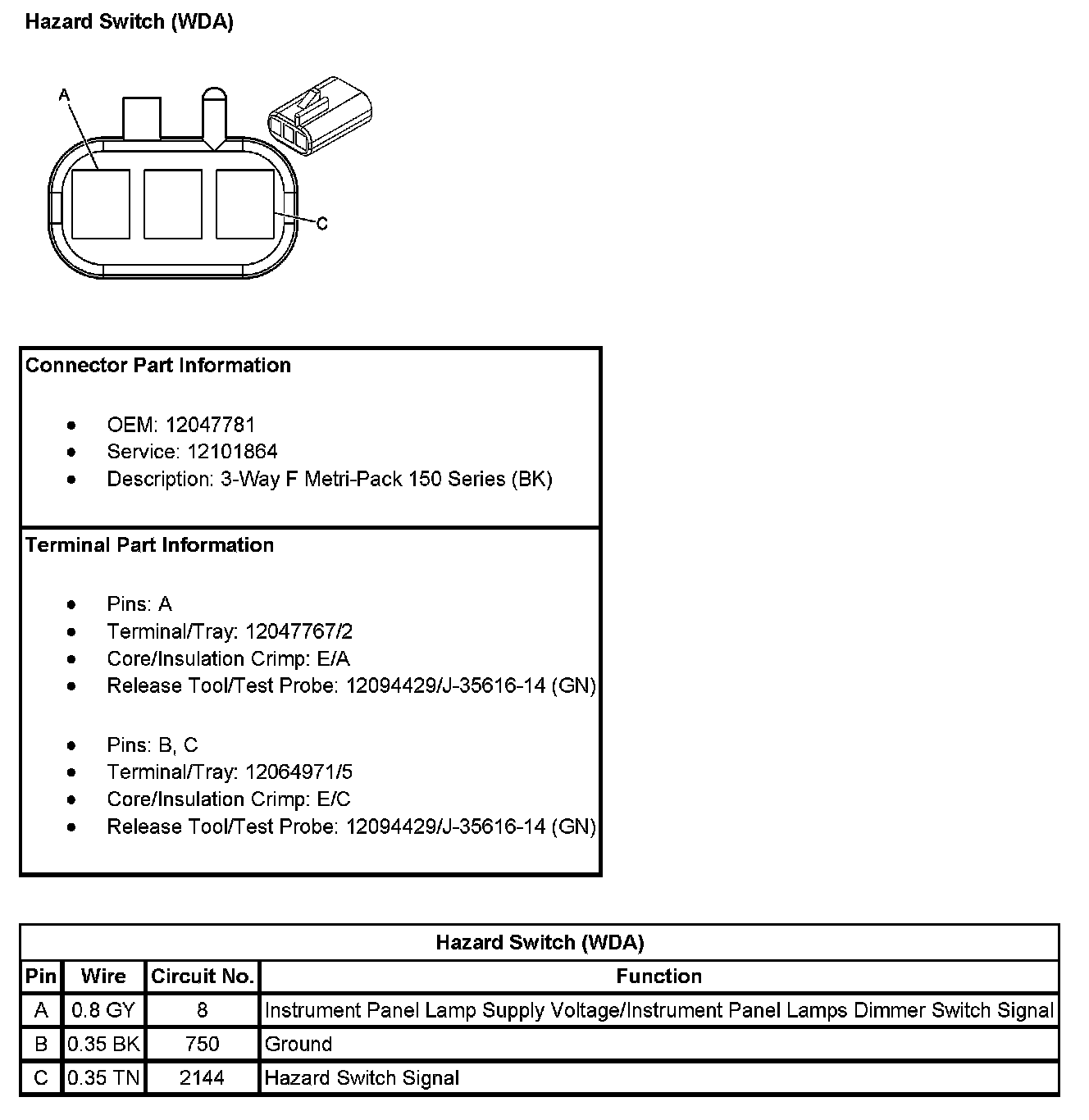

Hazard Switch (With RPO Code WDA):

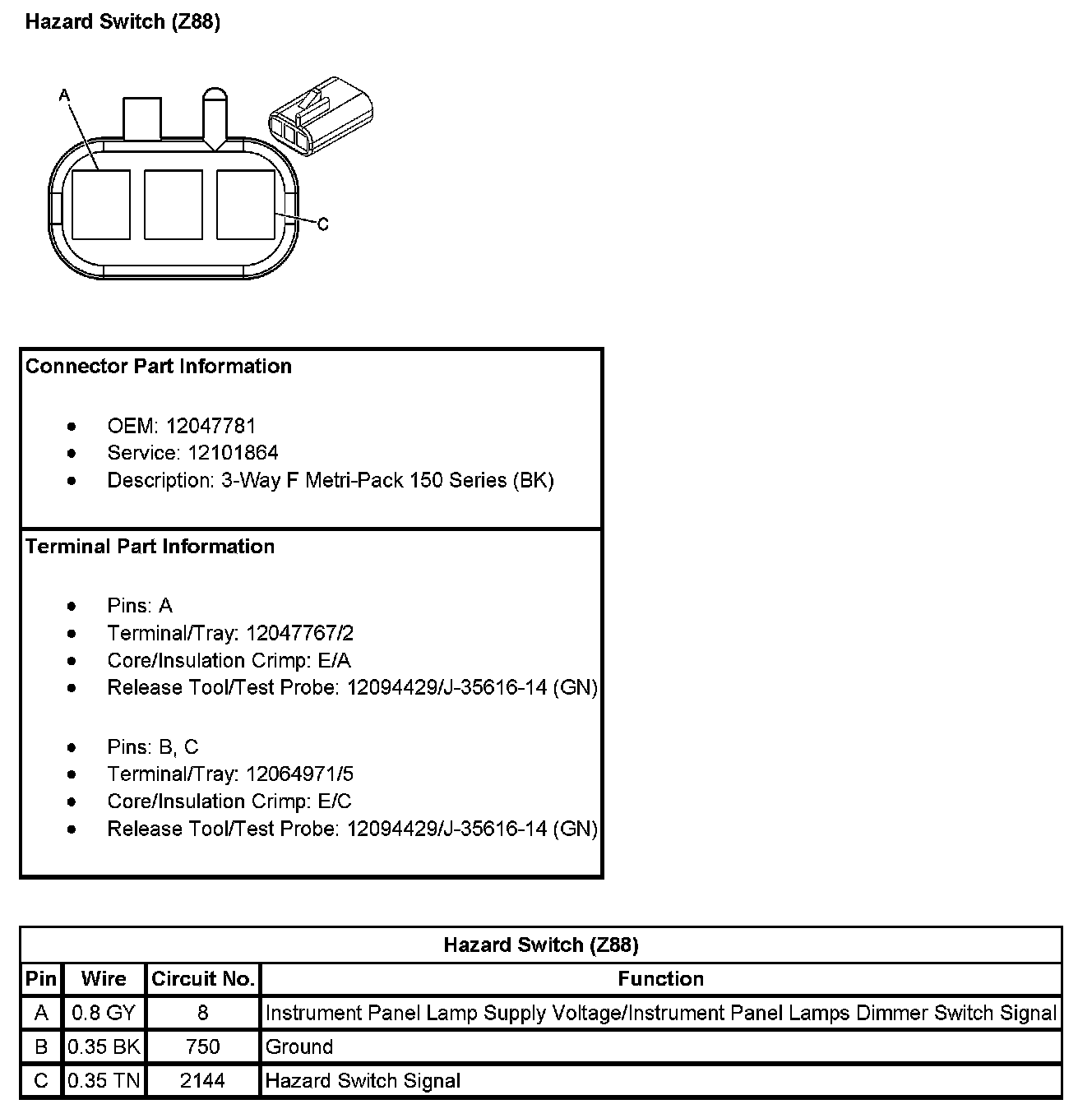

Hazard Switch (with RPO Code Z88):
