Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC - Automatic

HVAC - Automatic



HVAC Connector End Views

HVAC Control Assembly - Auxiliary (-UK6)














HVAC Control Module X1














HVAC Control Module X2 (WDA)














HVAC Control Module X2 (Z88)

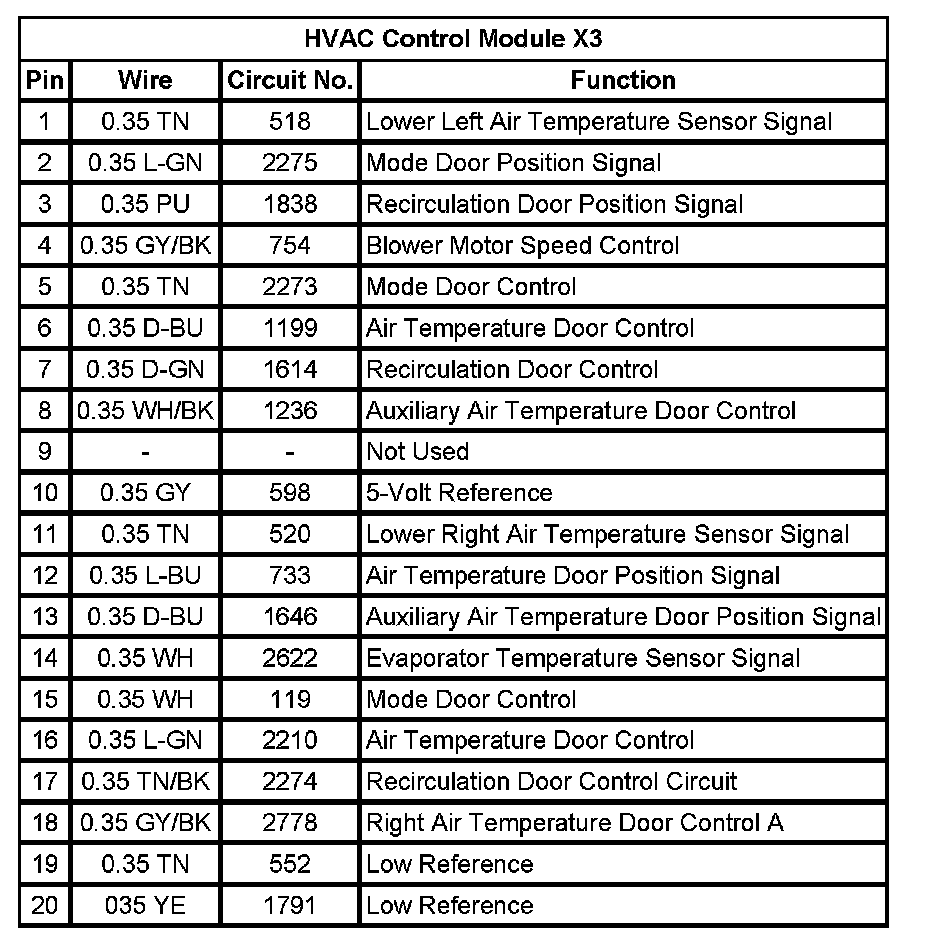

HVAC Control Module X3














HVAC Control Module X4 (WDA)














HVAC Control Module X4 (Z88)
