Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Diagrams >> Heated Seat Control Module - Driver X3

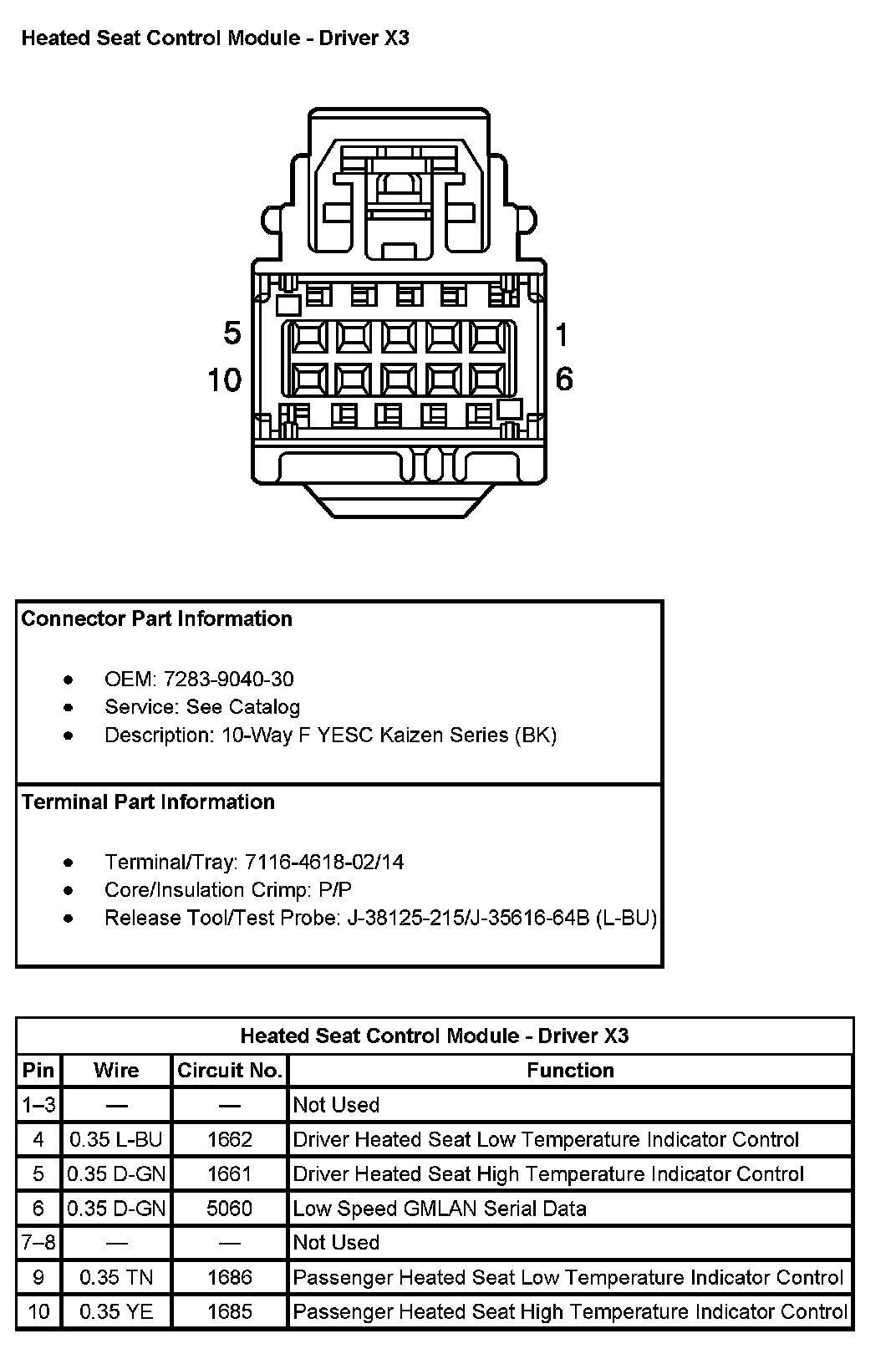

Heated Seat Control Module - Driver X3

Heated Seat Control Module - Driver X3:
