Suspension Control Module
Suspension Control Module

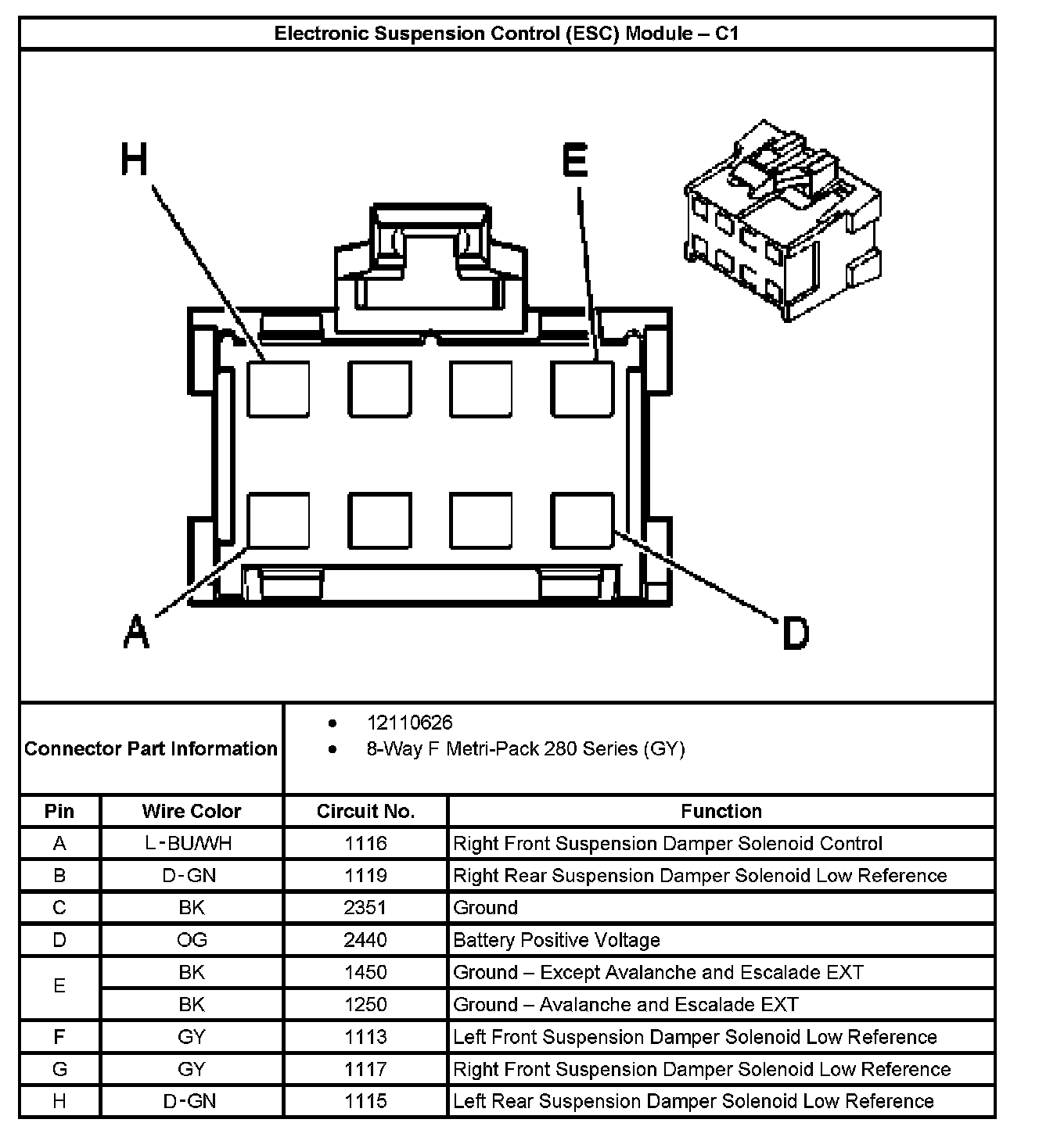

Electronic Suspension Control (ESC) Module - C1:

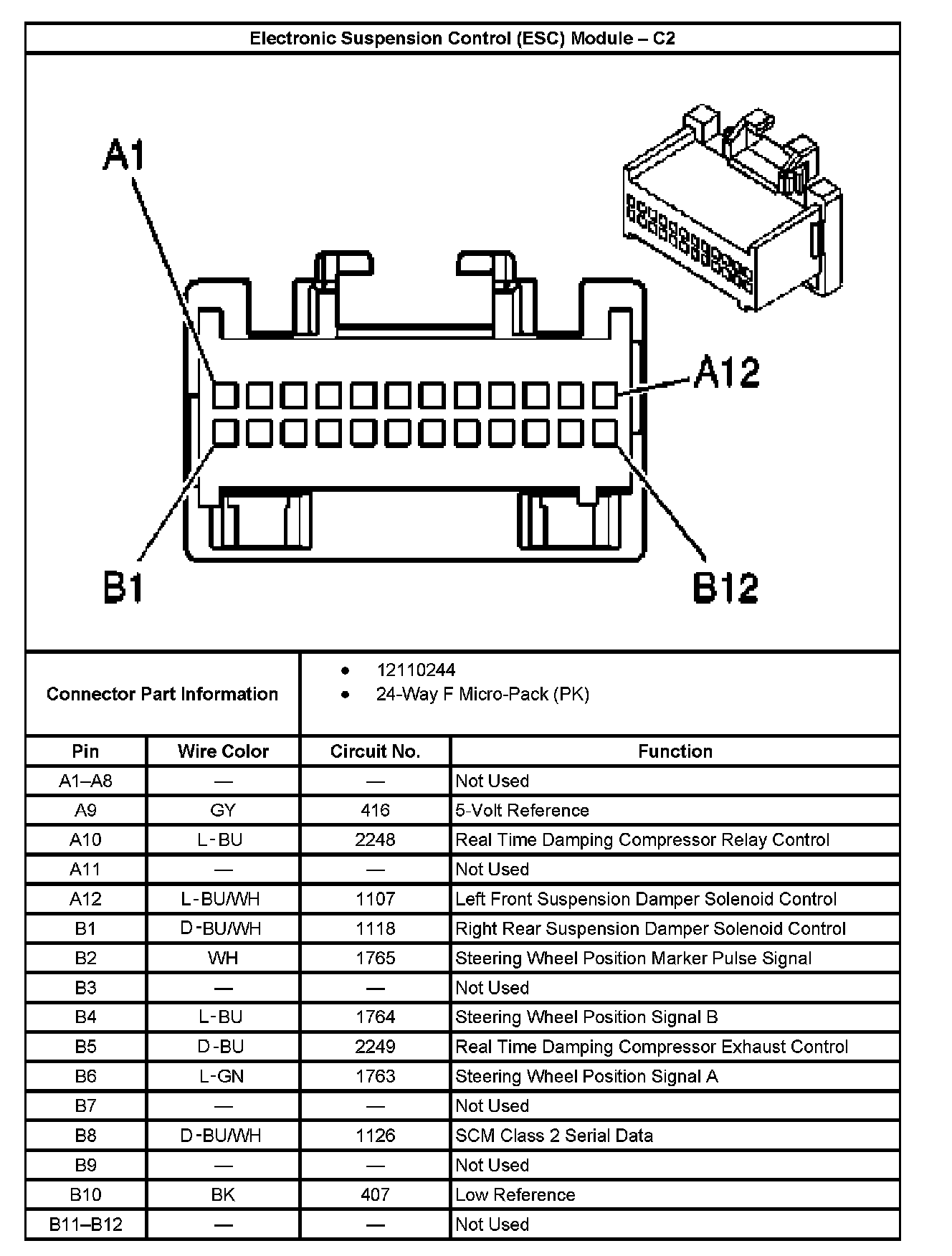

Electronic Suspension Control (ESC) Module - C2:

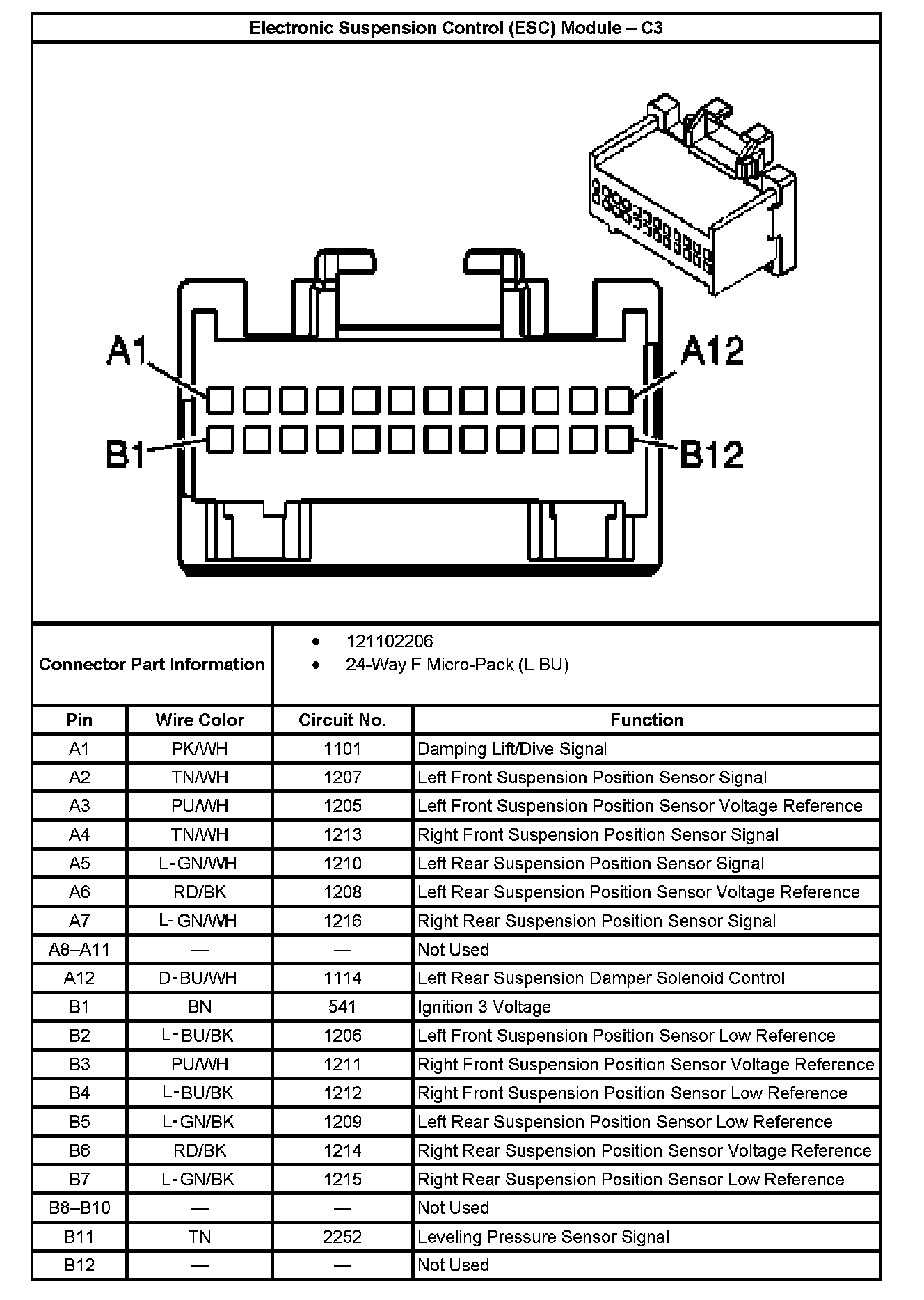

Electronic Suspension Control (ESC) Module - C3:
