Memory Positioning Switch

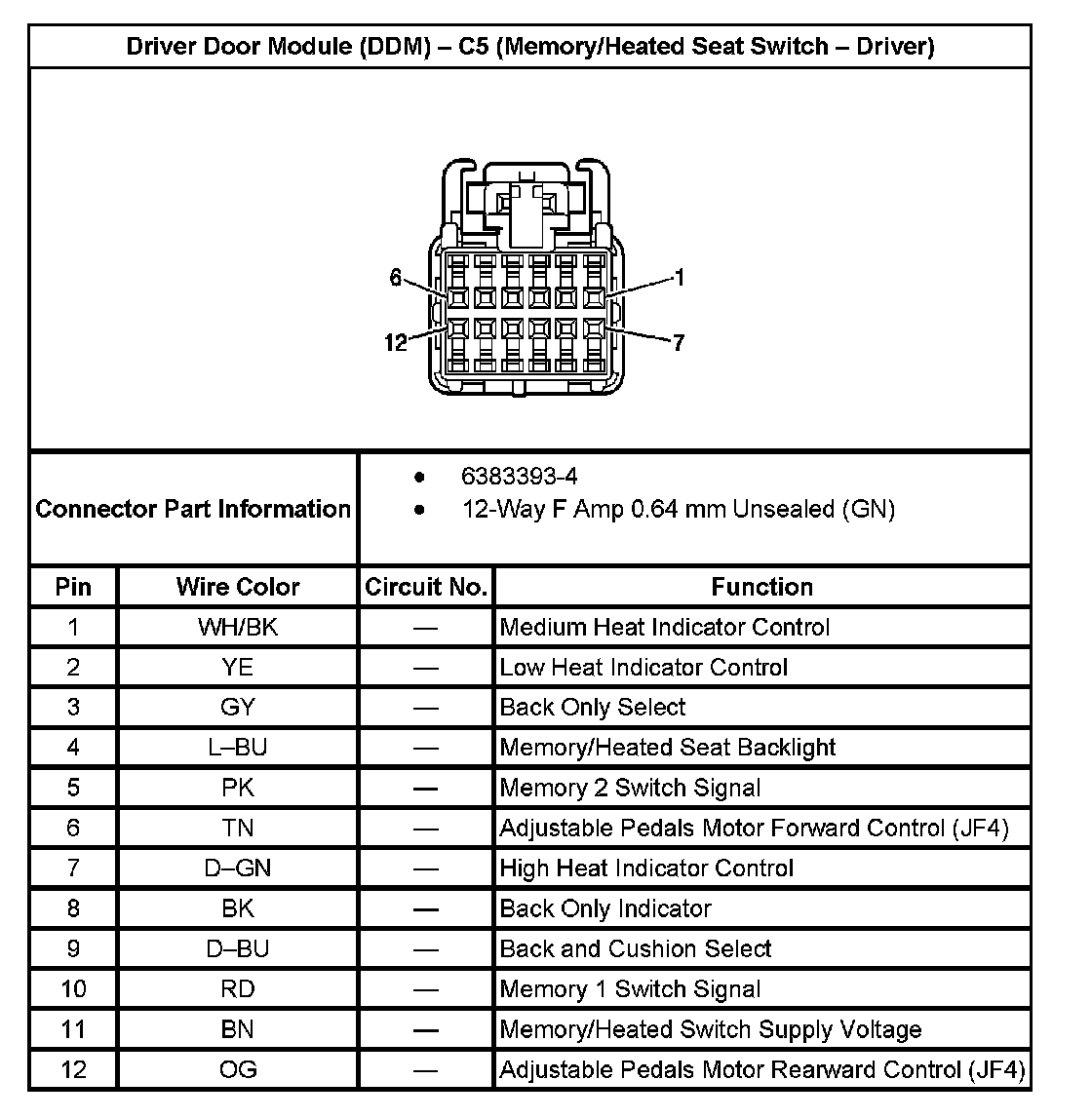

Driver Door Module (DDM) - C5 (Memory/Heated Seat Switch - Driver):



Passenger Door Module (PDM) - C5 (Heated Seat Switch - Front Passenger):



Passenger Door Module (PDM) C5 (Passenger Heated Seat Switch):



Heated Seat Switch - LR:



Heated Seat Switch - RR:
