Passenger Door Module (PDM)

Passenger Door Module (PDM) C1:

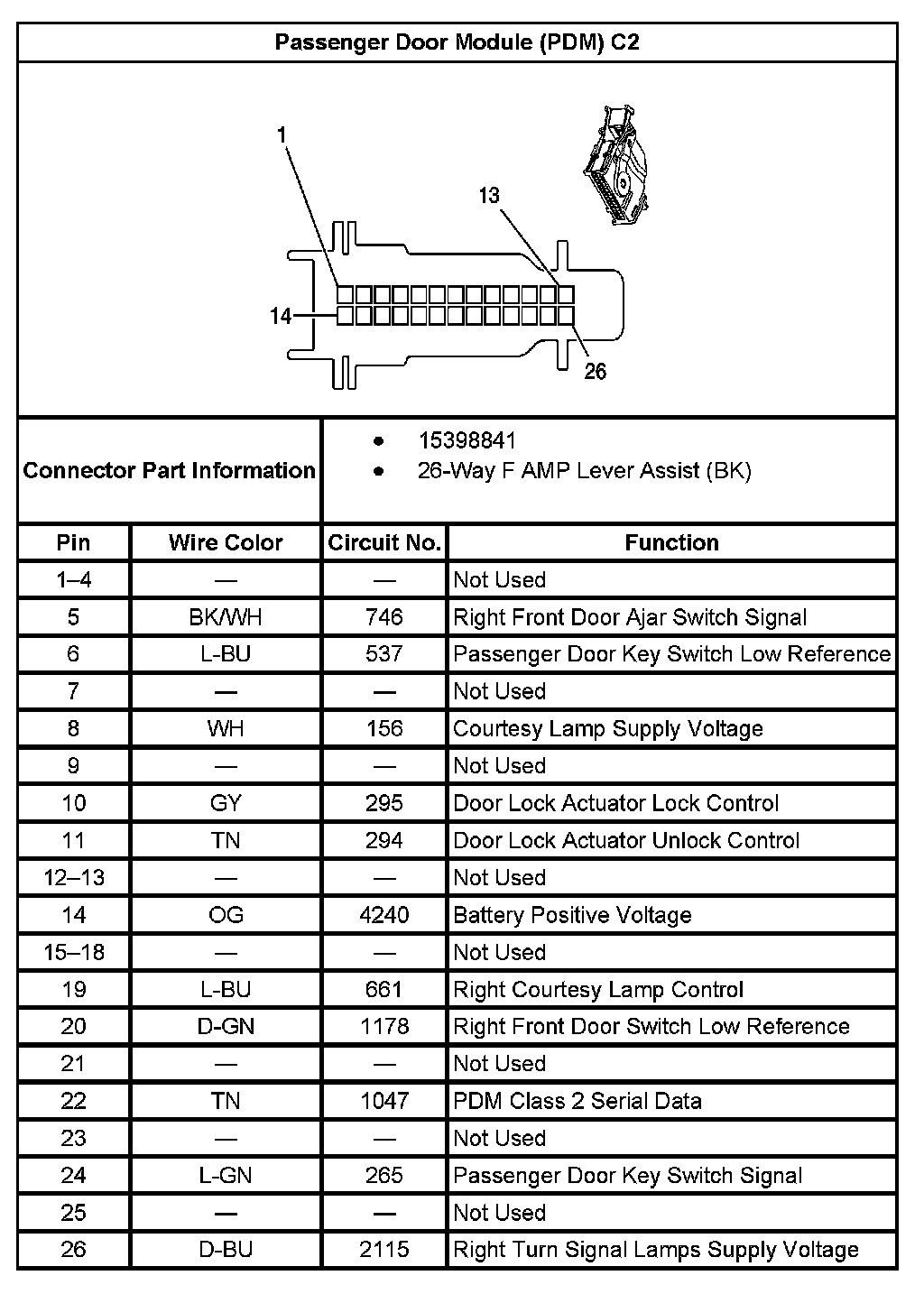

Passenger Door Module (PDM) C2:

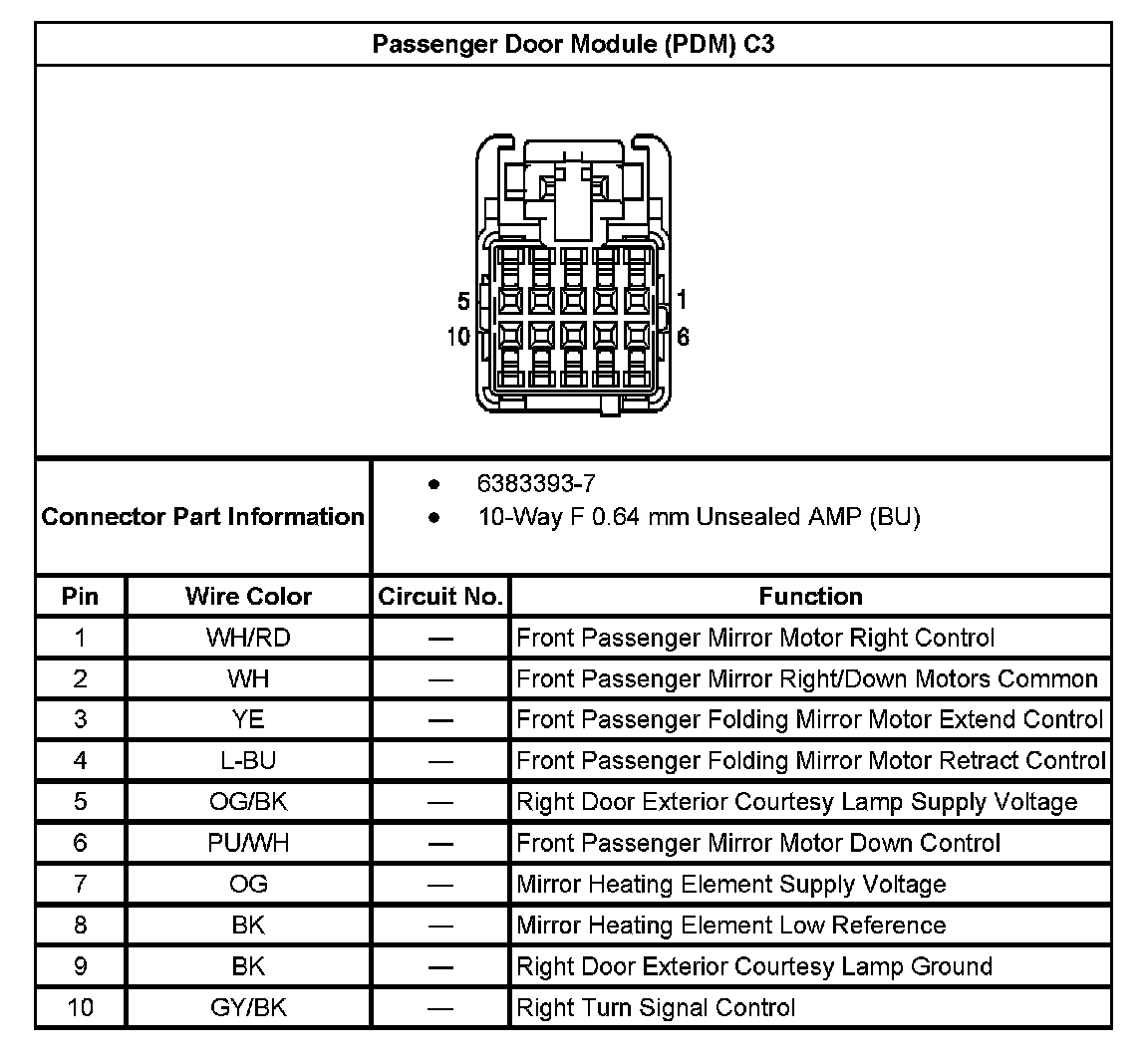

Passenger Door Module (PDM) C3:



Passenger Door Module (PDM) C4:

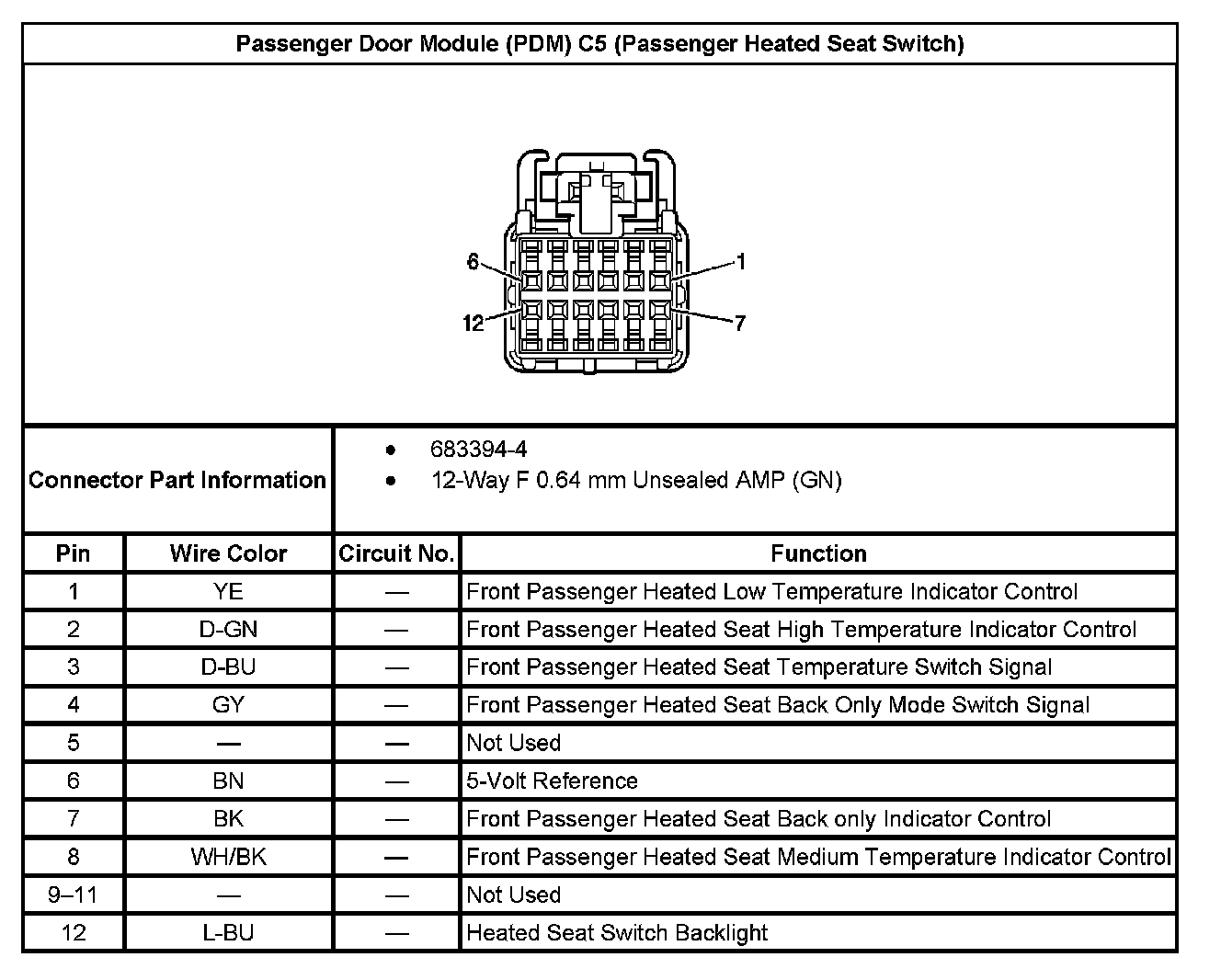

Passenger Door Module (PDM) C5 (Passenger Heated Seat Switch):
