Home
>>
GMC
>>
2005
>>
Yukon/Denali 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Connector Views
Connector Views

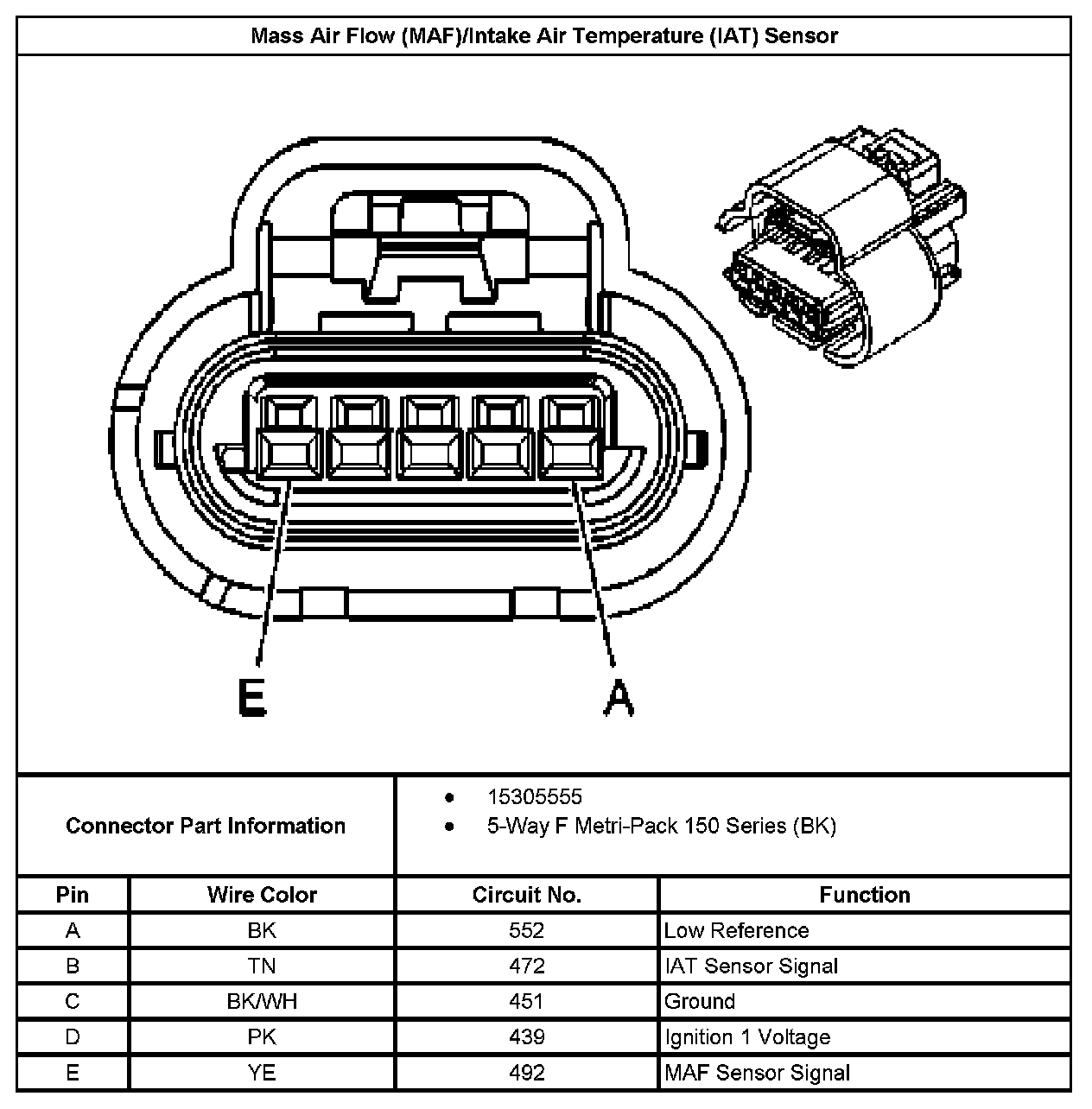

Mass Air Flow (MAF)Ilntake Air Temperature (IAT) Sensor:
