Scan Tool Normal Data Values

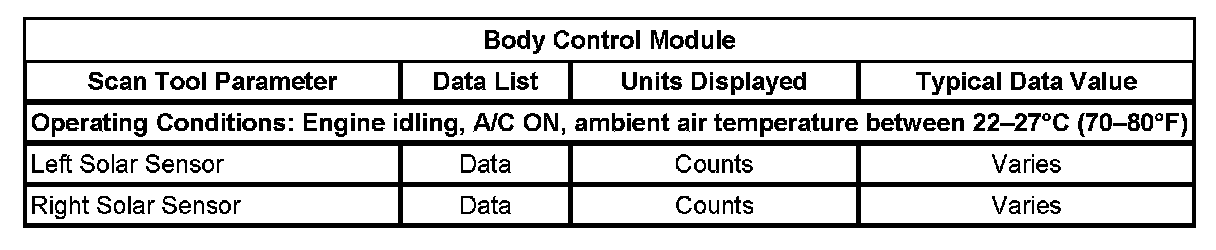

Body Control Module:

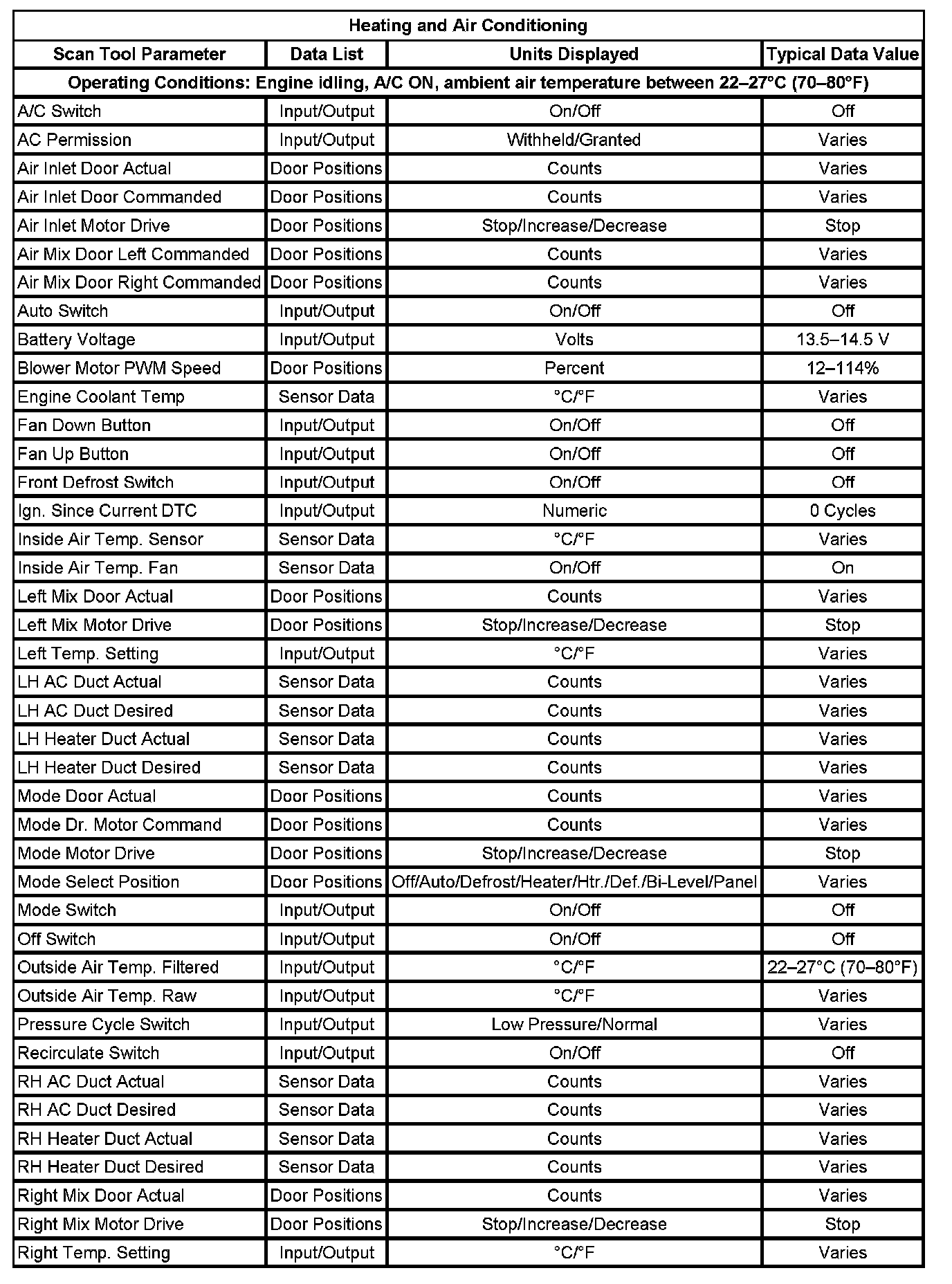

Heating And Air Conditioning:

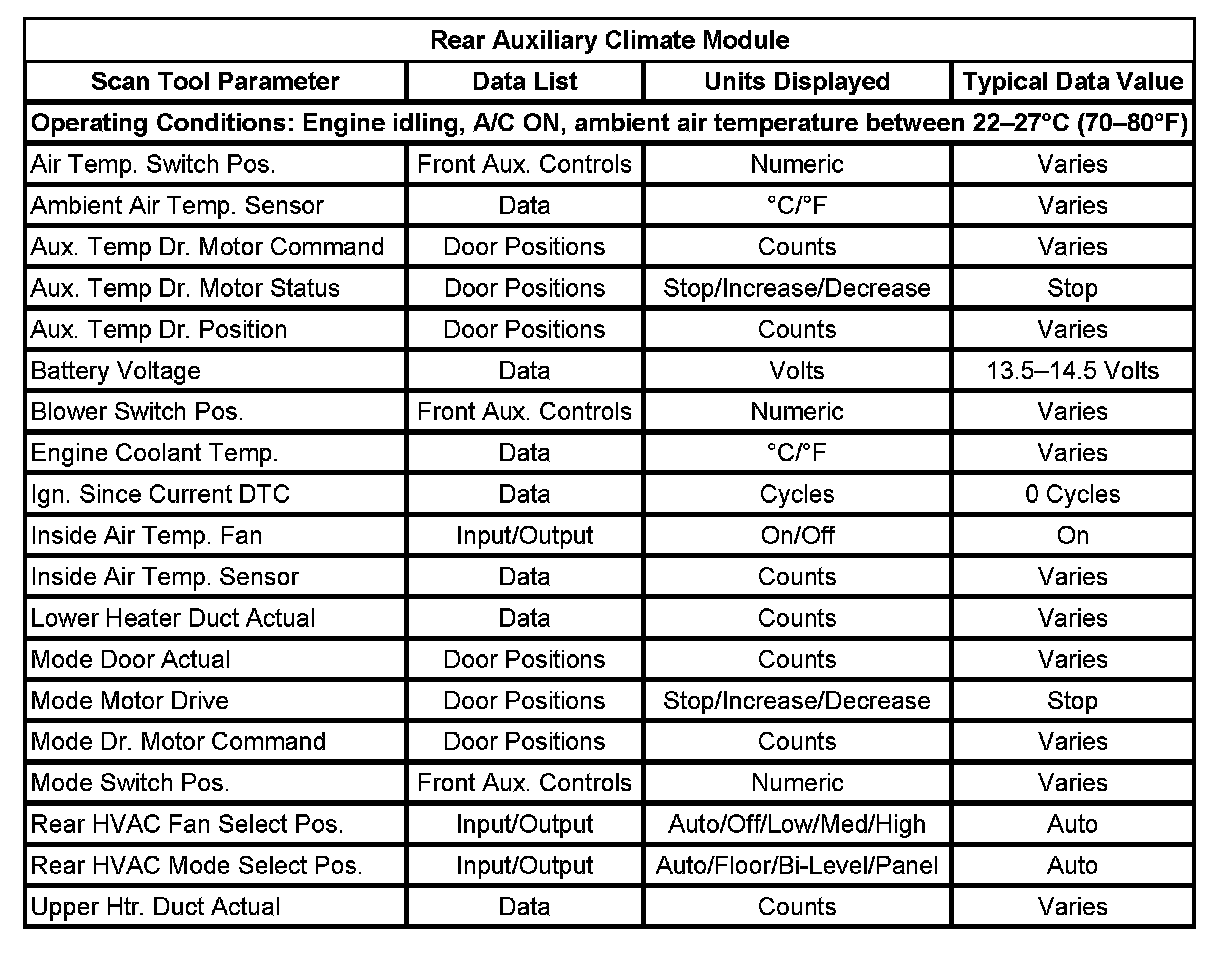

Rear Auxiliary Climate Module:

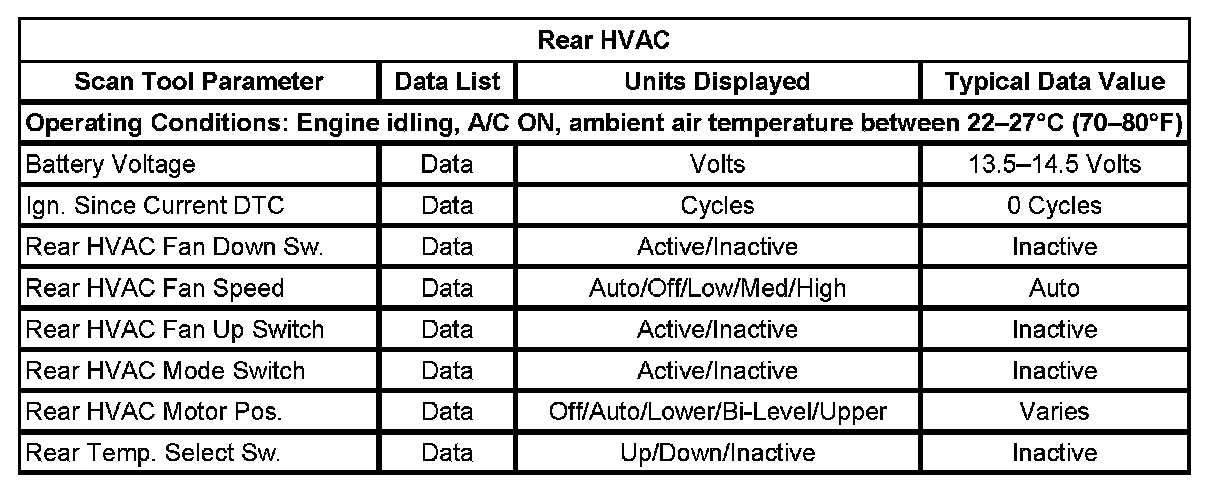

Rear HVAC:

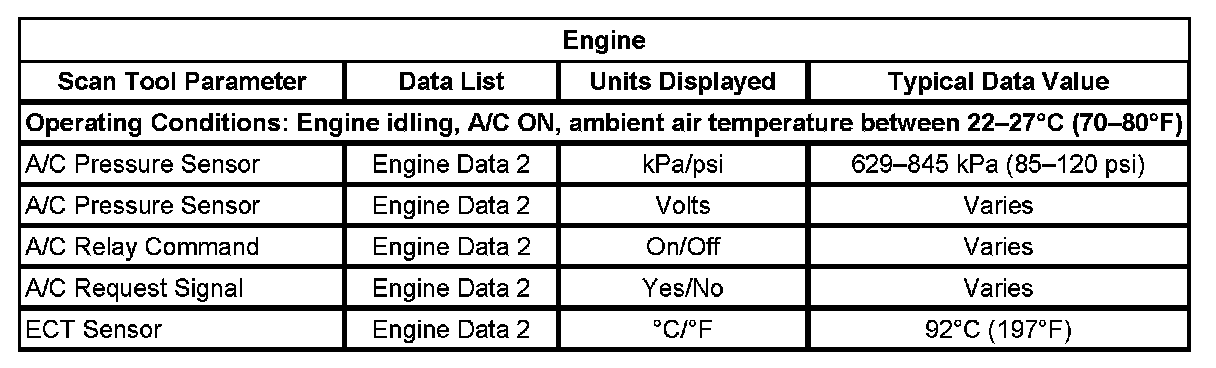

Engine:
