HVAC Control Module C1

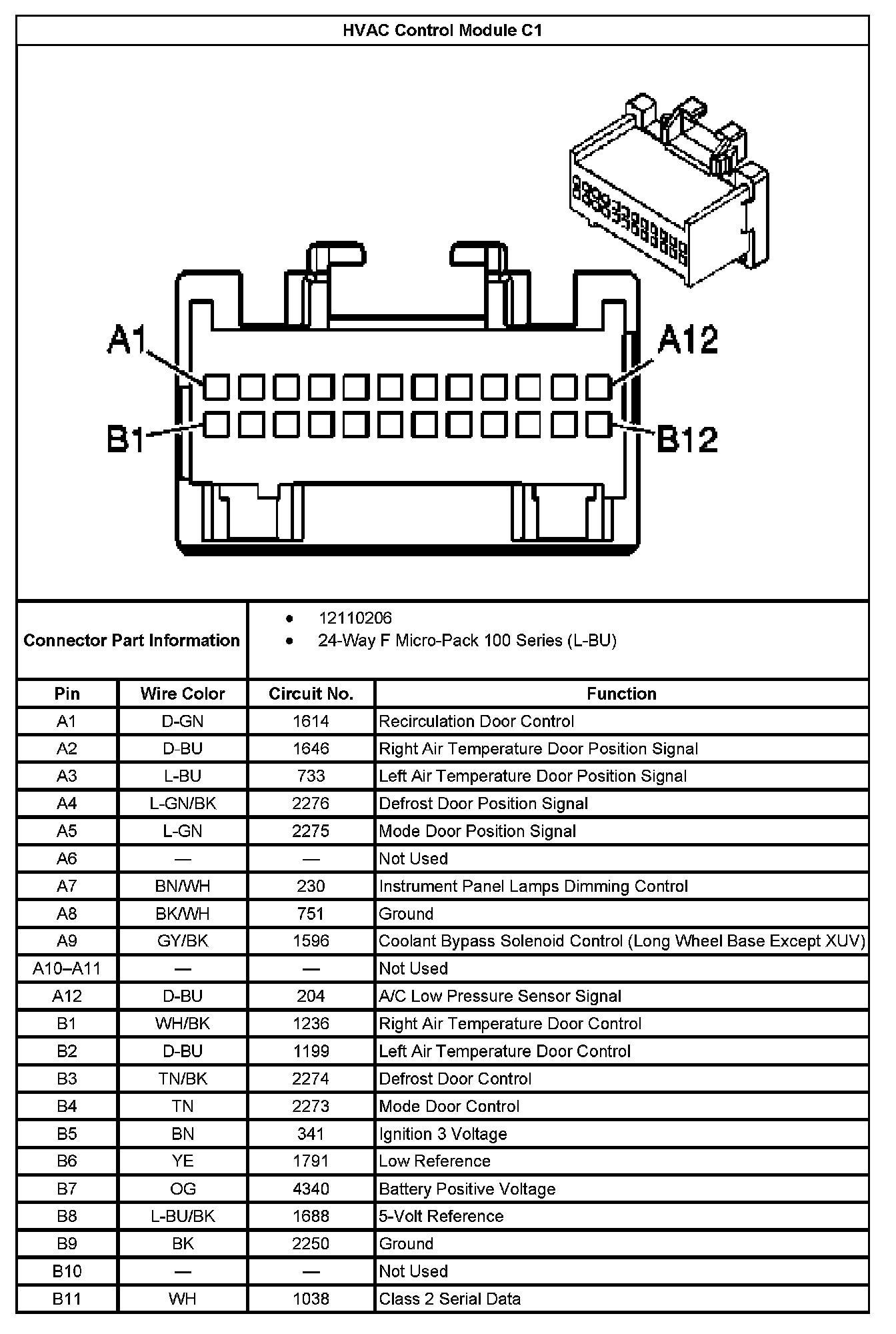

HVAC Control Module C1 Part 1:



HVAC Control Module C1 Part 2:

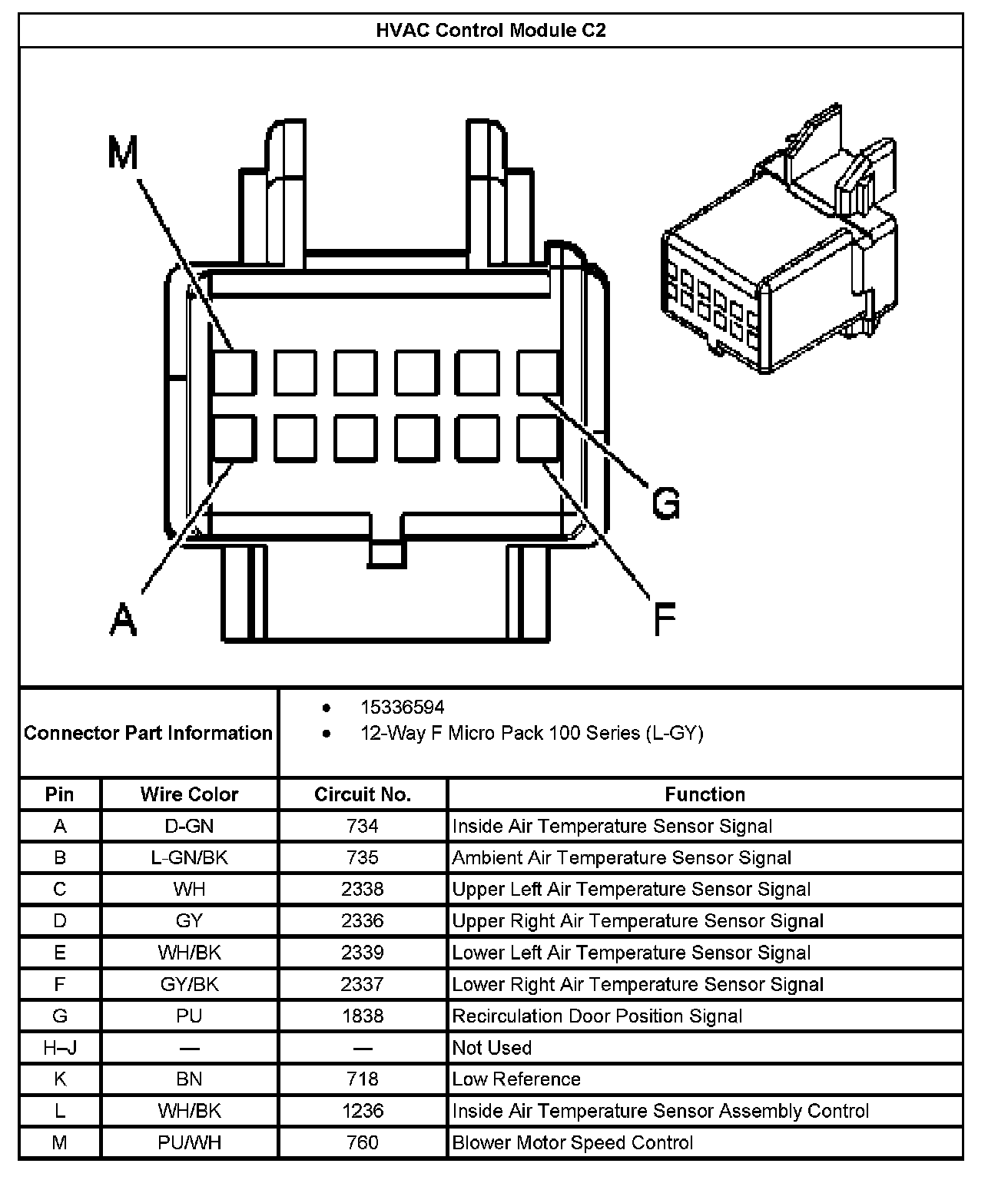

HVAC Control Module C2:
