Control Module HVAC: Locations

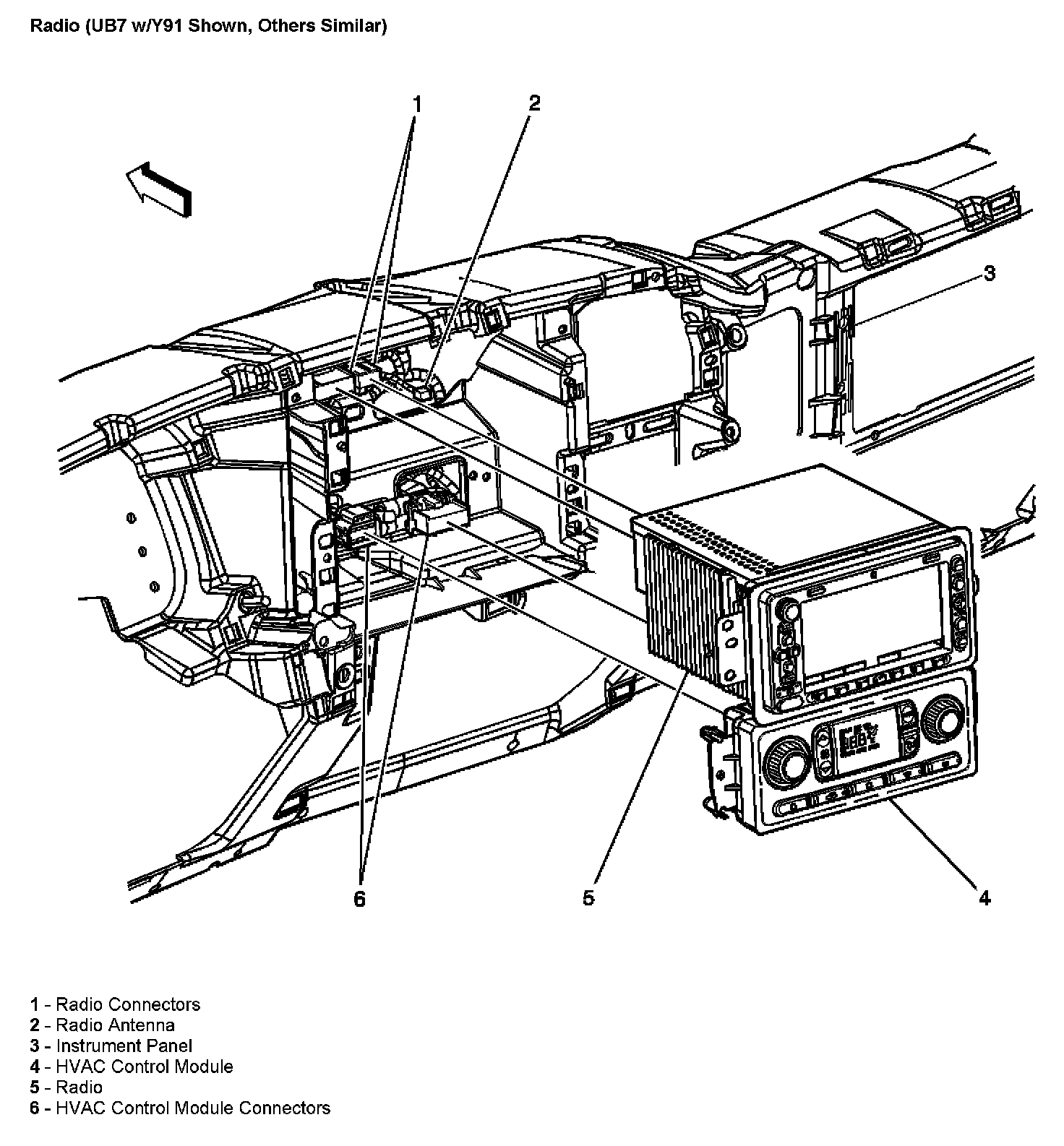

Radio (With RPO Code UB7, Y91 Shown, Others Similar):

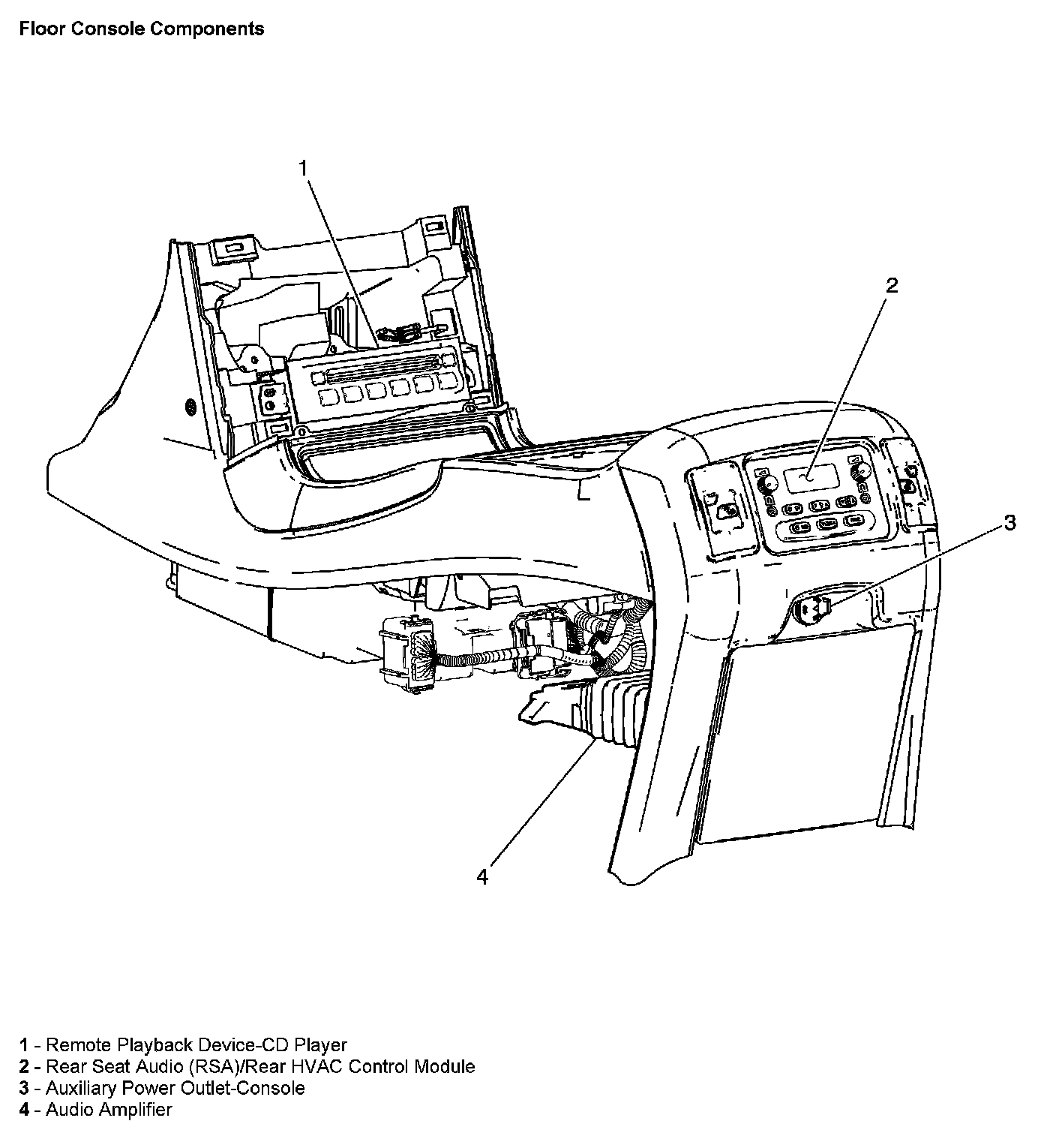

Floor Console Components:

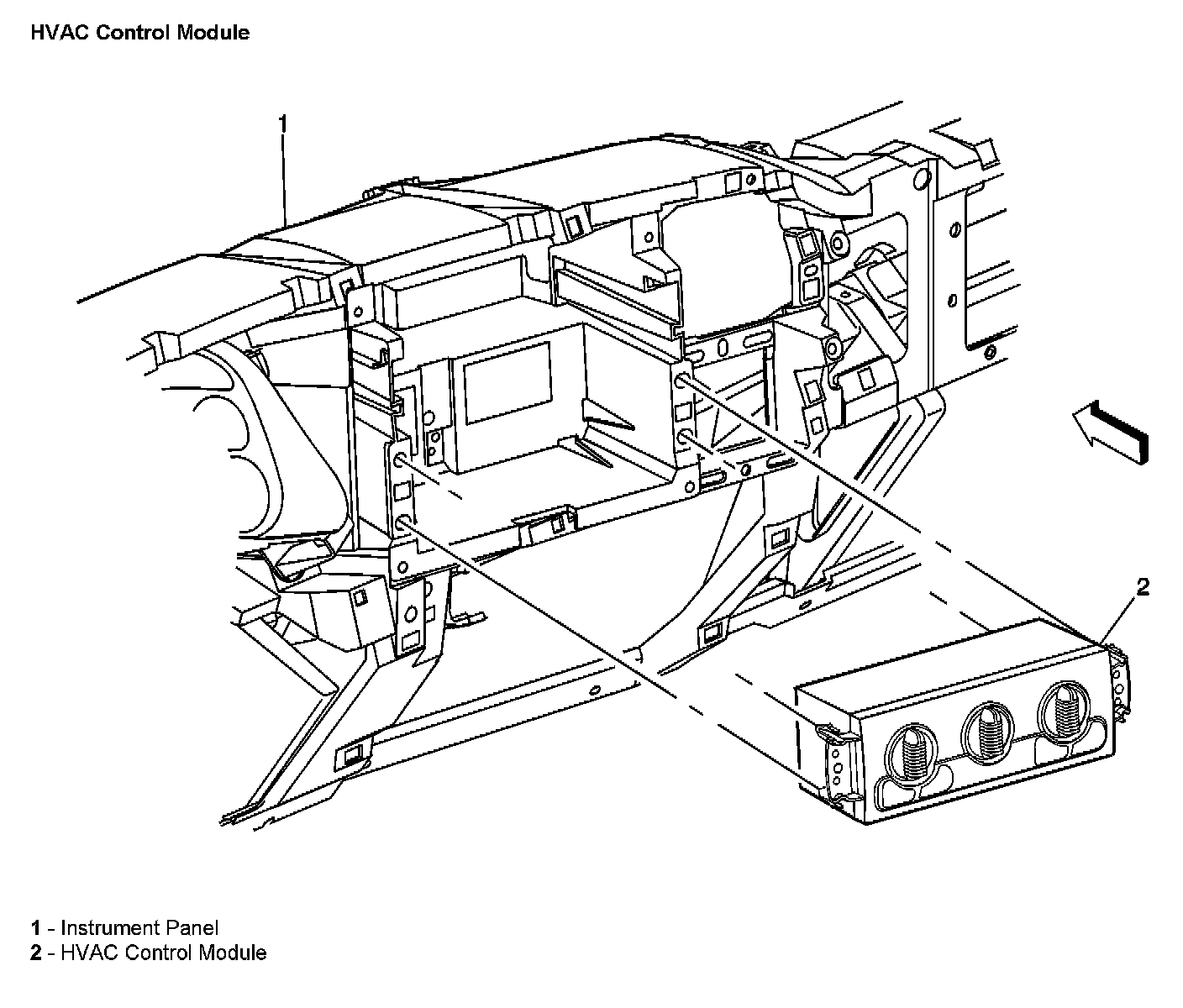

HVAC Control Module:
