GMC
>>
2004
>>
Jimmy (CANADA) V6-4.3L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
Transmission Fluid Temperature (TFT) Sensor Specifications
Transmission Fluid Temperature (TFT) Sensor Specifications

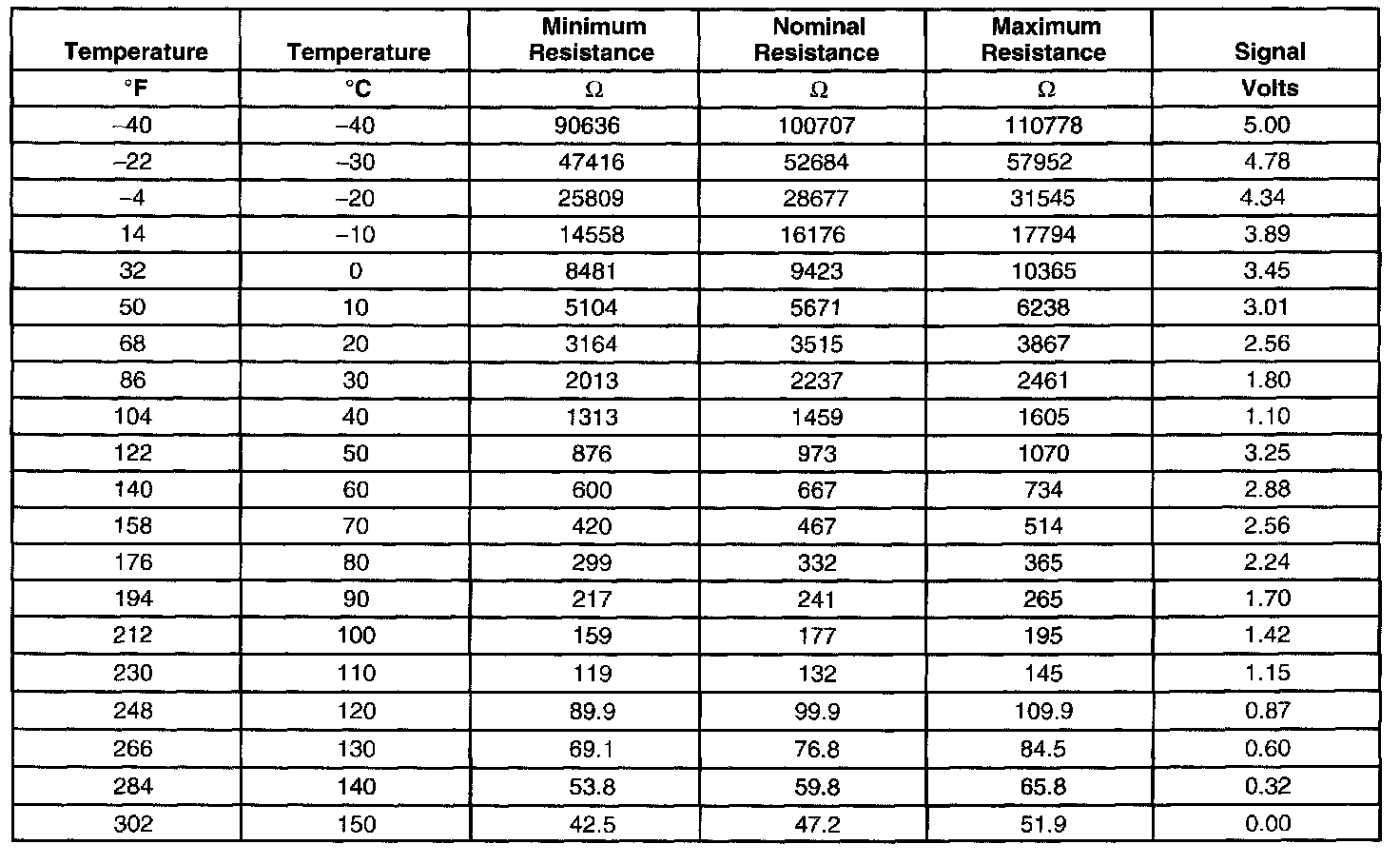

Transmission Fluid Temperature (TFT) Sensor Specifications:
