Steering Column - Floor Shift

Steering Column Disassembled View

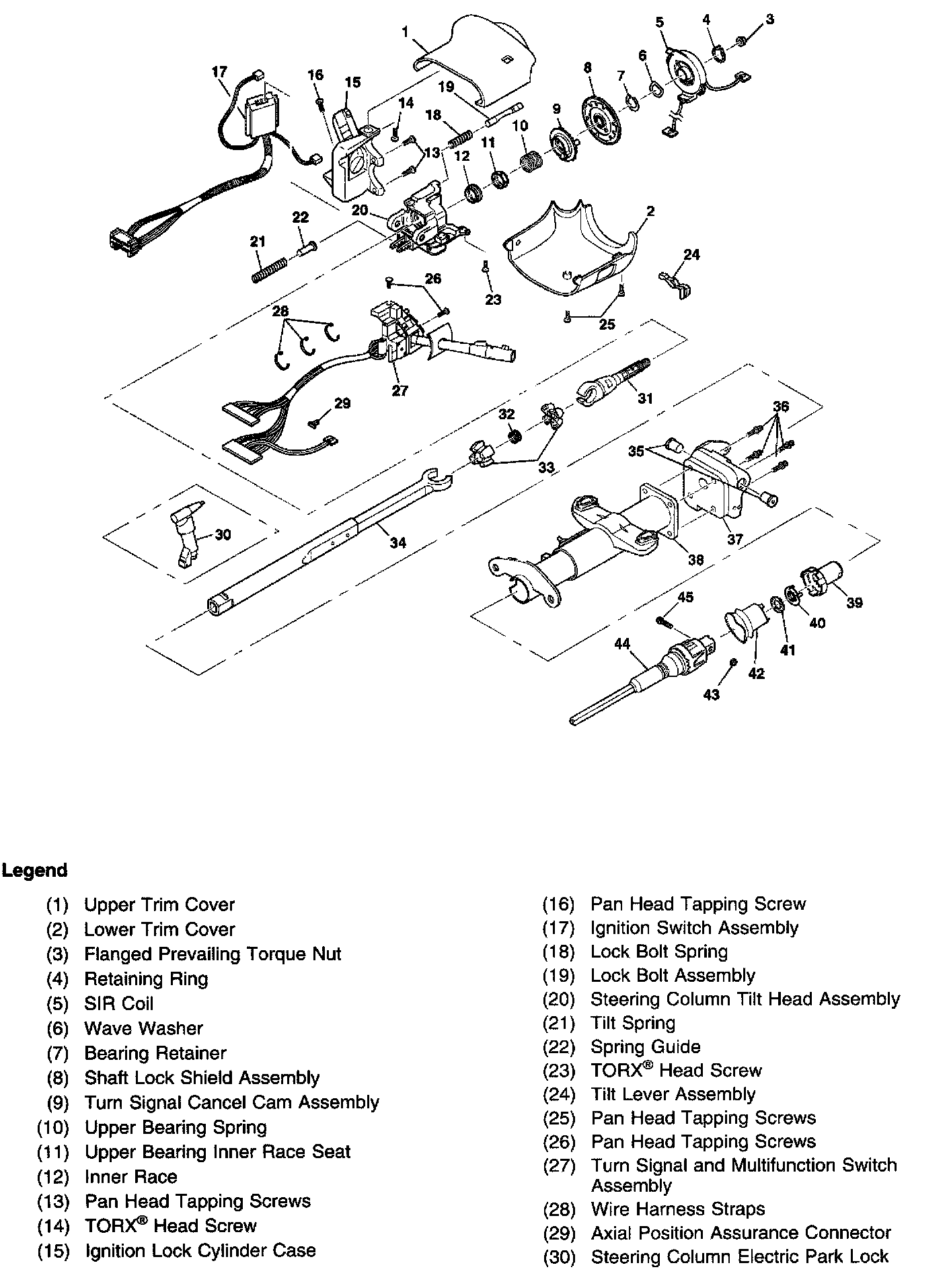

Floor Shift, Tilt Steering Column

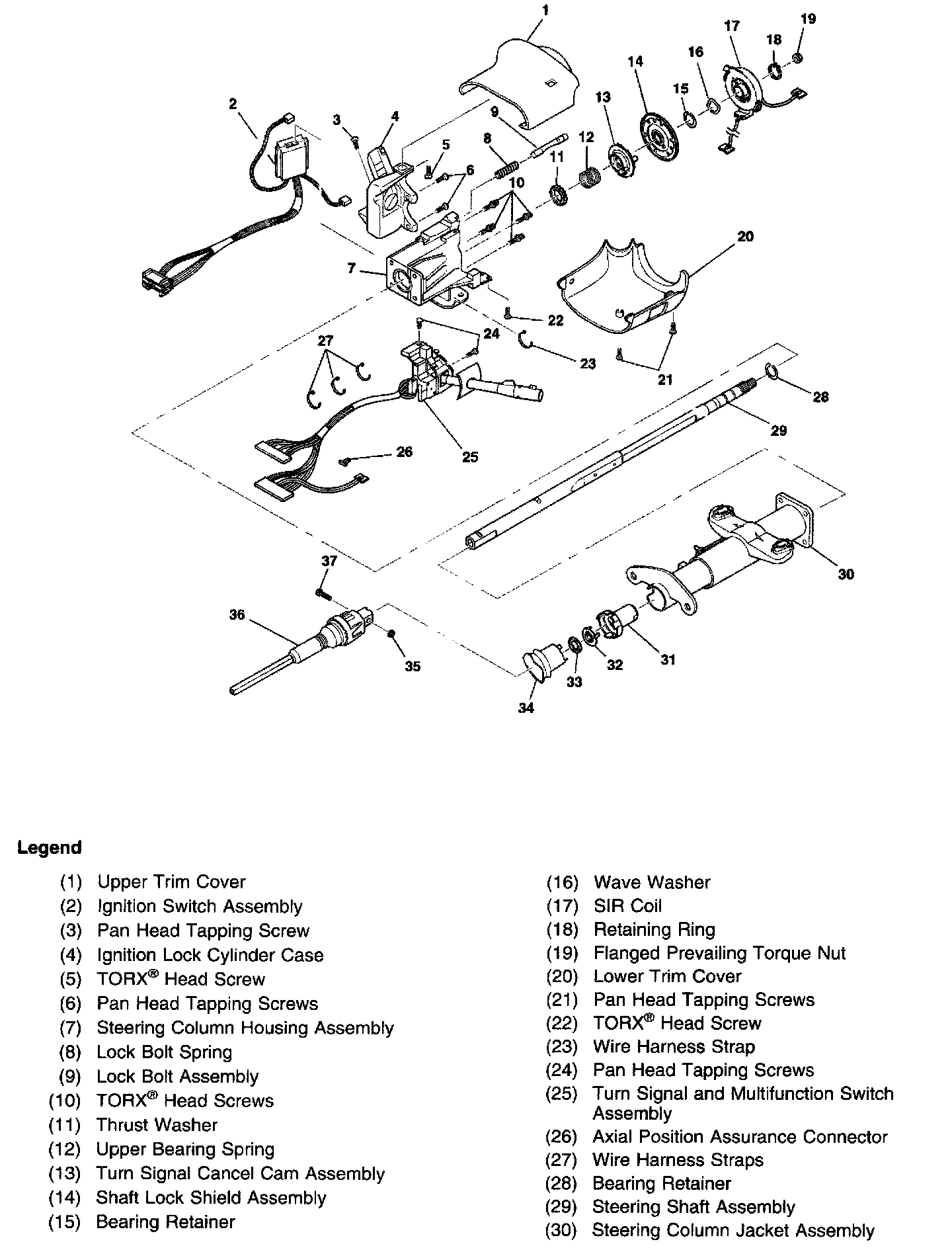

Standard Floor Shift Column
