Home >> GMC >> 2004 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Steering Column - Column Shift

Steering Column - Column Shift

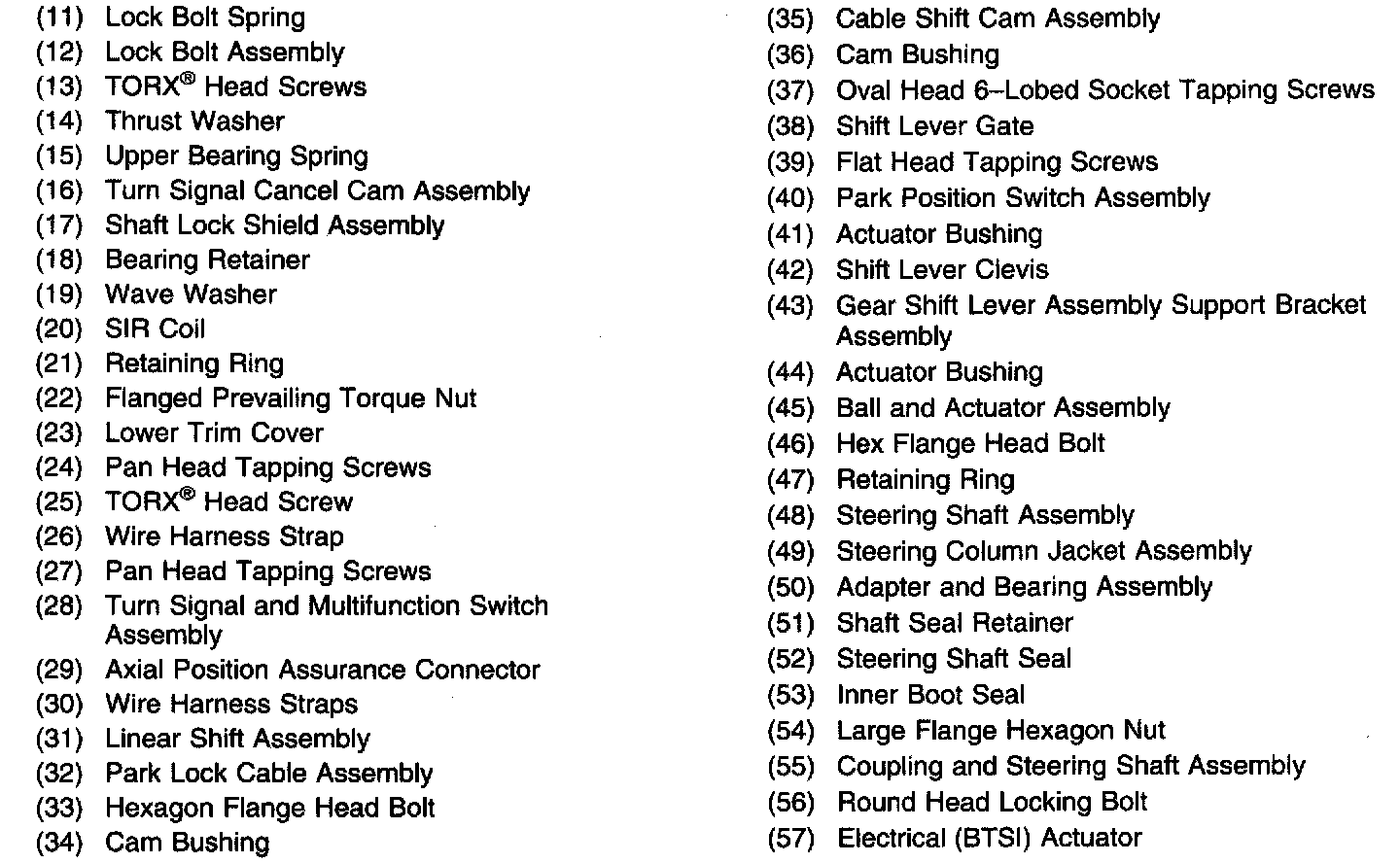

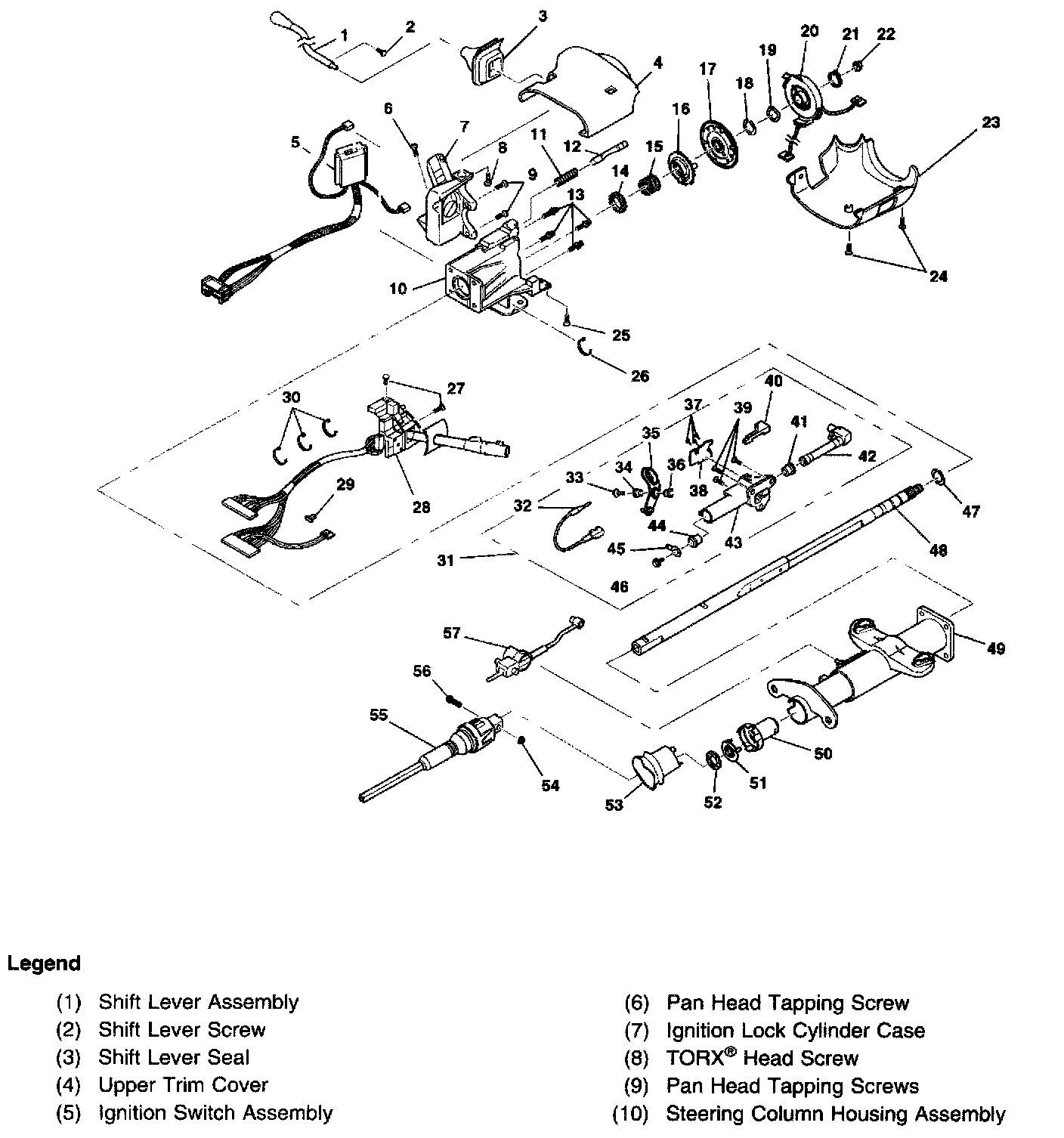

Steering Column Disassembled View

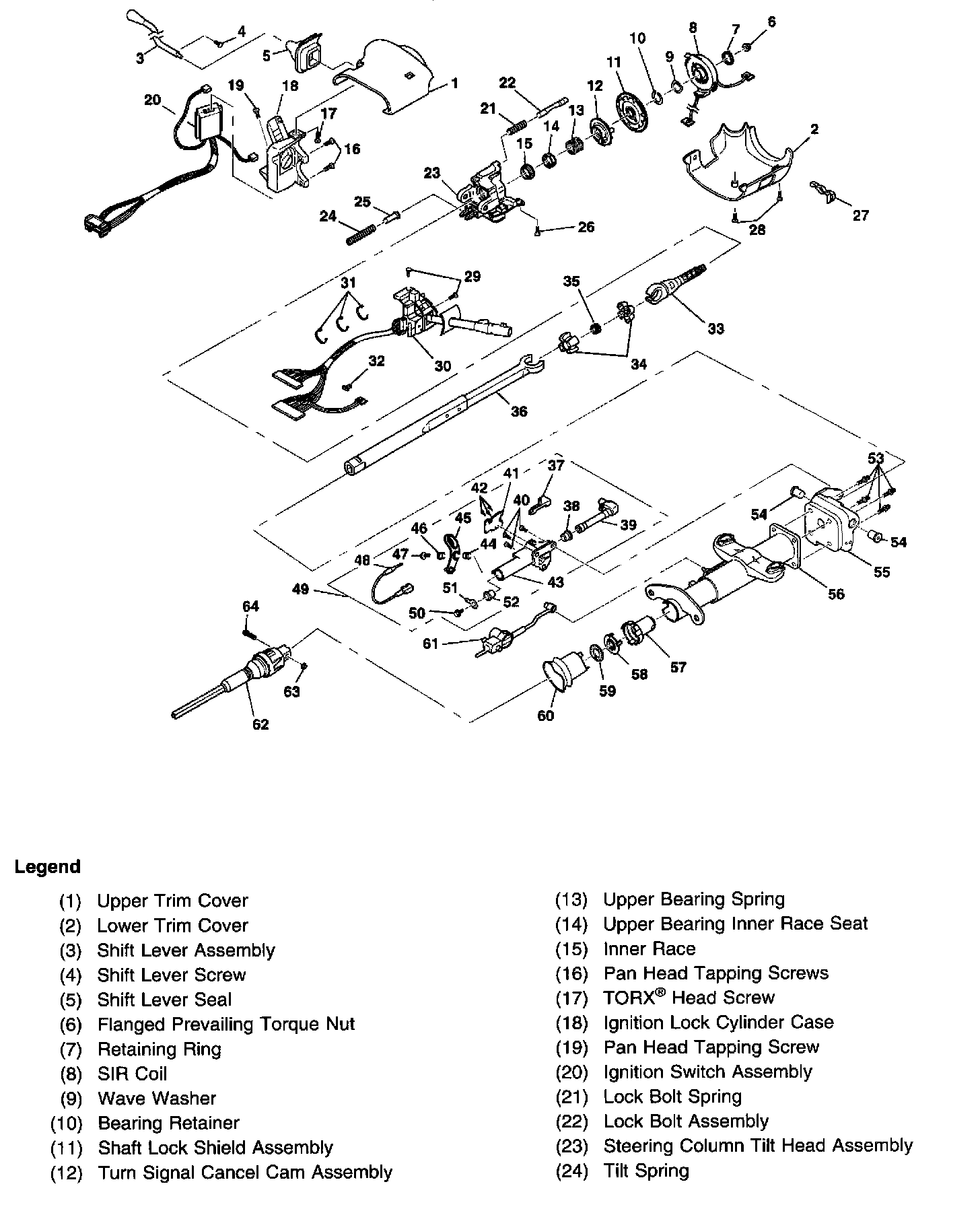

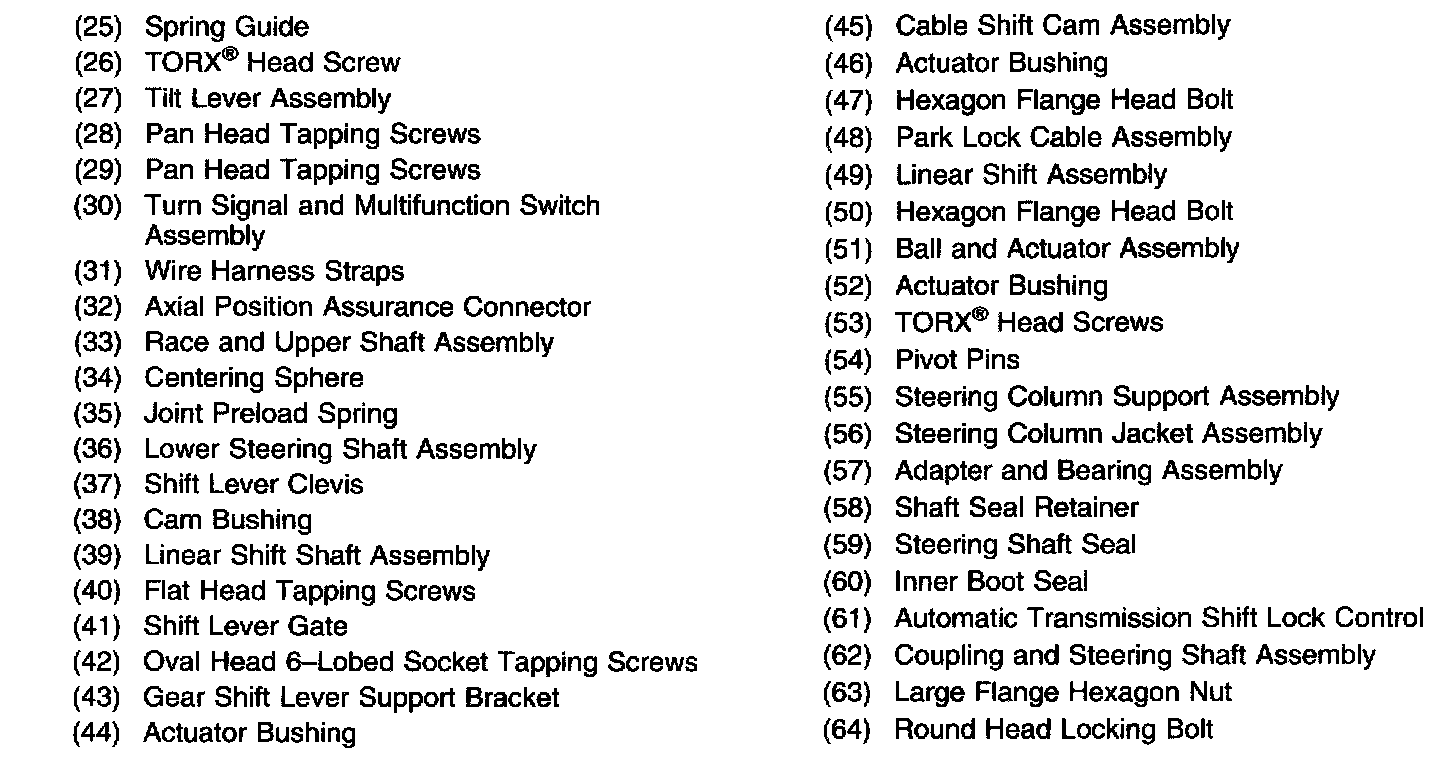

Tilt Steering Column, Disassembled View








Standard Column Shift
