Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

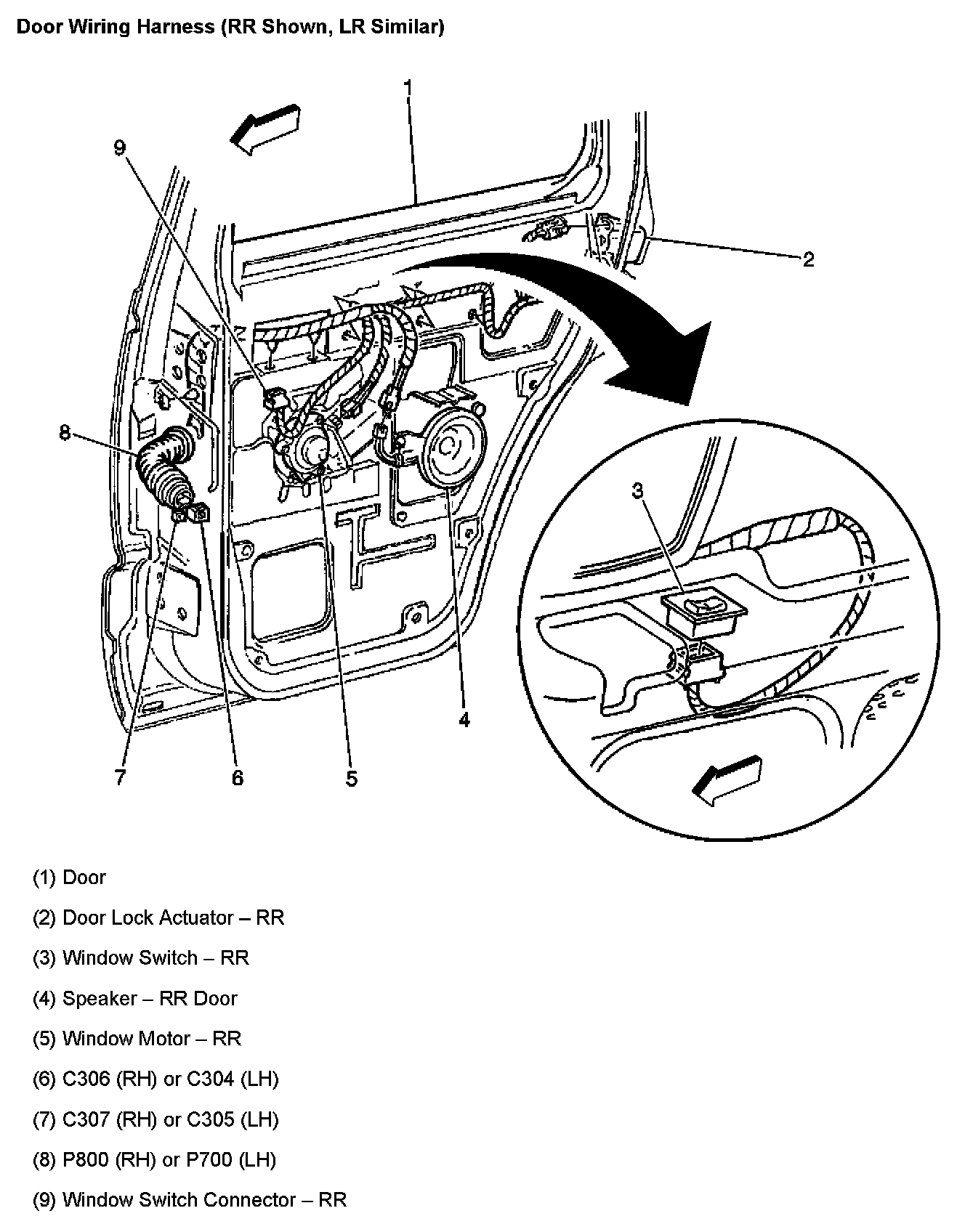

Door Wiring Harness (RR Shown, LR Similar):
